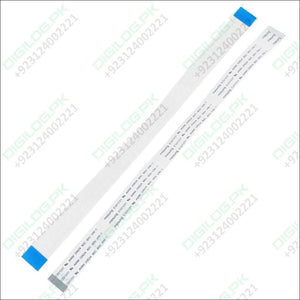

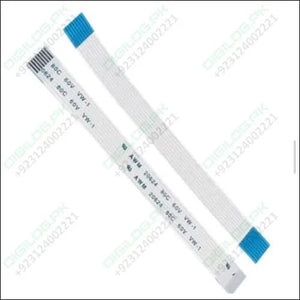

AWM 20624 80C 60V VW-1 10pin FFC Flexible Flat Cables 295mm

AWM 20624 80C 60V VW-1 10pin FFC Flexible Flat Cables 295mm

• AWM 20624: This indicates the wire classification, as per the UL (Underwriters Laboratories) standards. AWM stands for Appliance Wiring Material.
• 80C: The maximum temperature rating is 80 degrees Celsius.
• 60V: The voltage rating is 60 volts.
• VW-1: This denotes that the cable has passed the VW-1 flame test, indicating it is flame retardant.
• 10-pin: The cable has 10 conductive paths or pins.
• FFC: Stands for Flexible Flat Cable, which means it is flat and flexible, often used for high-density electronic applications.
• 295mm: The length of the cable is 295 millimeters.

Key Features:

• Flat and Flexible: Suitable for tight spaces and can bend easily without breaking.
• High-Density Applications: Ideal for connecting PCB boards, LCD displays, and other internal connections in electronic devices.
• Flame Retardant: Meets VW-1 standards, ensuring safety in case of fire.
• Durability: Can withstand a temperature of up to 80°C and a voltage of 60V, making it reliable for various electronic applications.

Typical Uses:

• Internal wiring for electronic devices like laptops, printers, and other compact electronic gadgets.
• Connection between moving parts in devices due to its flexibility.
• Any application requiring a high number of connections in a small space.

Physical Characteristics:

• Conductors: Typically made of tinned copper for good conductivity and resistance to oxidation.
• Insulation: Often made from polyester or polyimide to provide flexibility and durability.
• Pitch: The distance between the centers of two adjacent conductors, which is a crucial aspect for fitting into connectors and PCB layouts.

Package Included:

1x AWM 20624 80C 60V VW-1 10pin FFC Flexible Flat Cables 295mm
