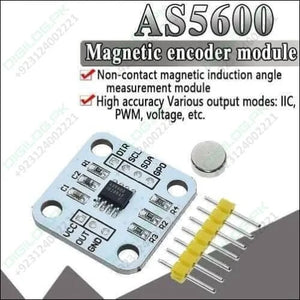

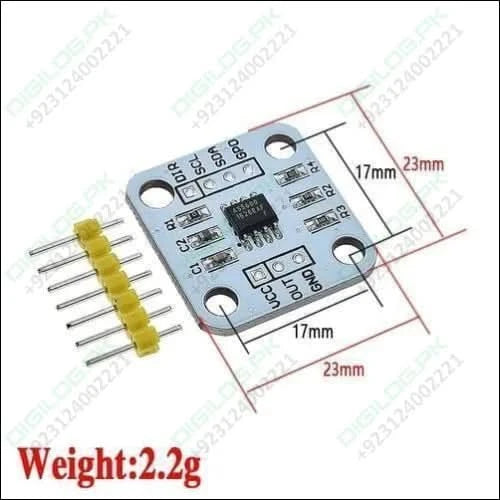

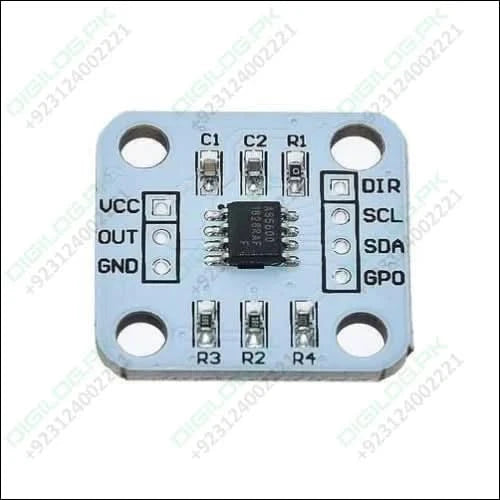

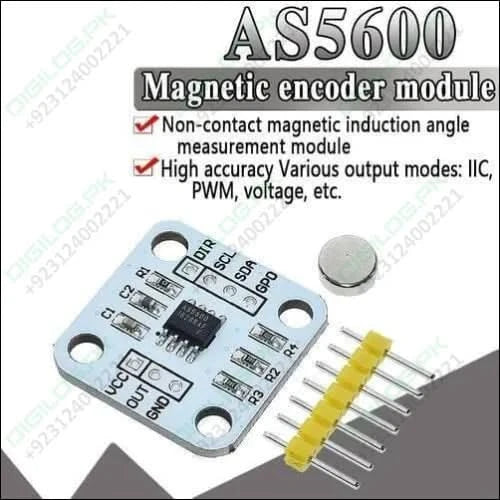

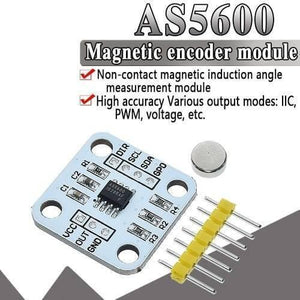

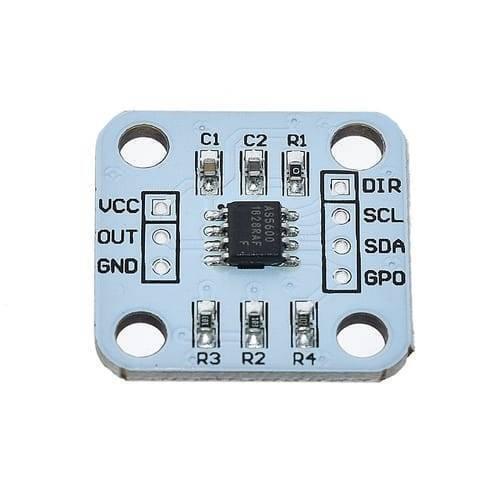

AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision For Arduino

AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision For Arduino

Regular price Rs.1,200
Regular price Sale price Rs.1,200
Sale Sold out
Shipping calculated at checkout.

SKU:B365,IMP20,Th10,A

NOTIFY ME WHEN IN STOCK

AS5600 is a programmable 12-bit high-resolution contactless magnetic rotary position sensor. AS5600 can work as a magnetic potentiometer or a magnetic encoder with excellent reliability and durability.

Compared with the traditional potentiometer/encoder, AS5600 has significant advantages: high precision, non-contact, and no limits on the rotation angle. All those advantages make it suitable for non-contact angle measurement applications, such as the robot arm, tripod head, motor closed-loop control, and machine tool axis positioning.





Features And Specifications Of Magnetic Encoder – Rotary Position Sensor (AS5600):

  • Non-contact, no rotation angle limitation
  • Working Voltage: 3.3v
  • 12-bit high-resolution, 4096 positions per round

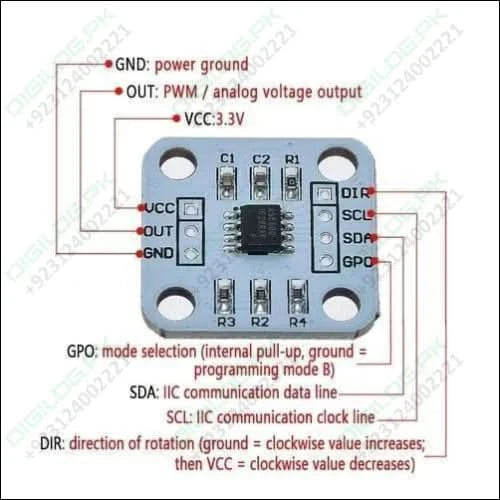

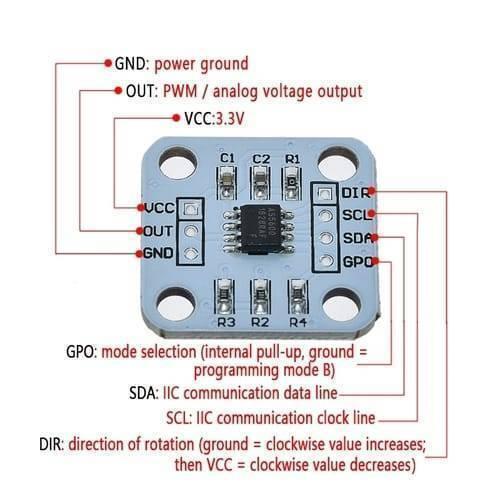

  • I2C (digital) or PWM (Analog) Output

Working Principle

AS5600 is based on the Hall Effect (the chip contain 4 hall effect sensor arranged in a circle). The built-in Hall sensor can detect changes in the direction of the magnetic field. The magnetic field direction information is amplified by the amplifier, with the help of the build-in 12-bit A/D, the AS5600 module can output 4096 positions per round.

Package Include:

  • 1 x AS5600 magnetic encoder Arduino

Best online shopping website for AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision For Arduino  at cheap price in Lahore Sialkot Gujrat Multan Gujranwala Faislabad Sahiwal Gojra Attock Vehari and all over Pakistan
