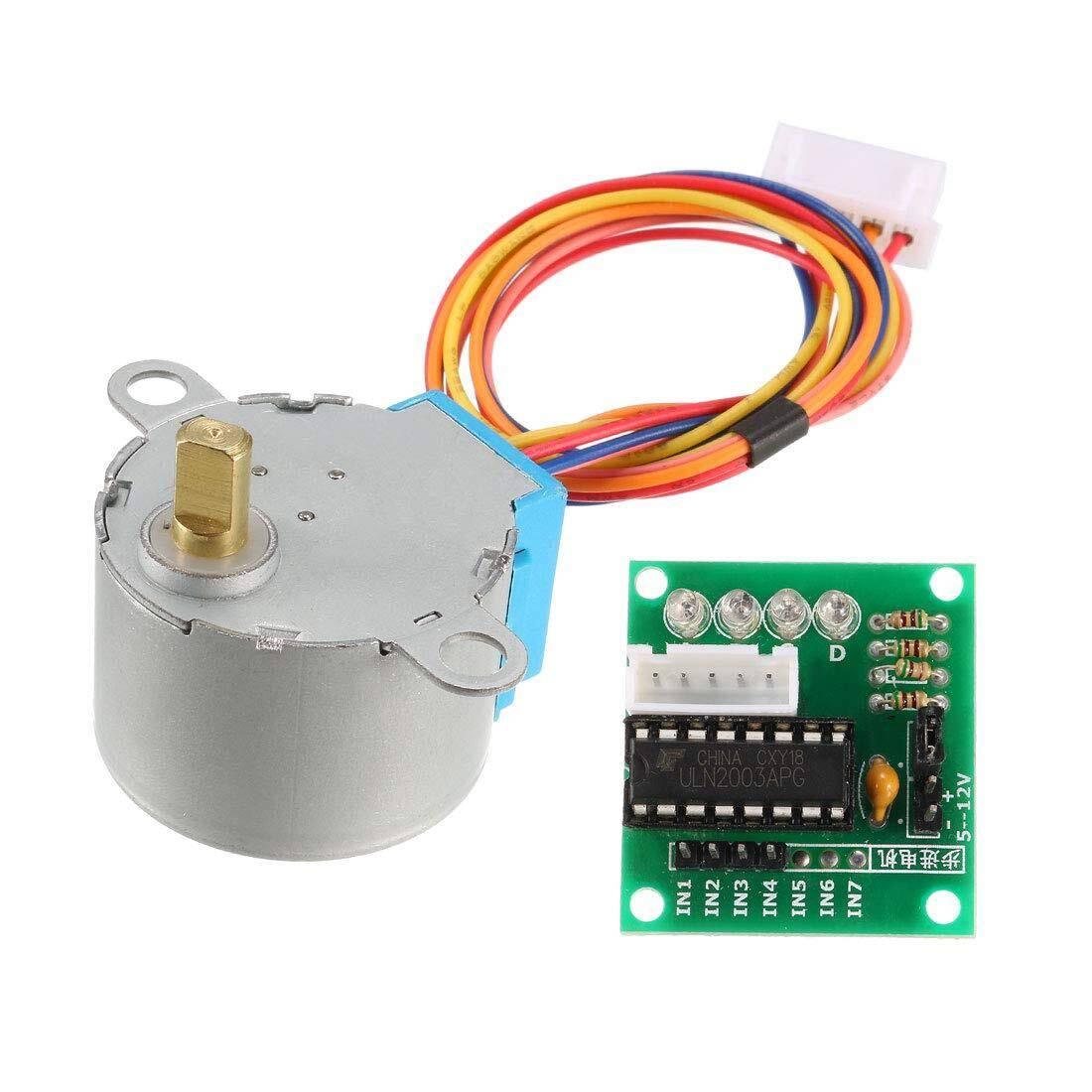

Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, featuring a silver cylindrical motor with a brass shaft and a green PCB with a white connector.

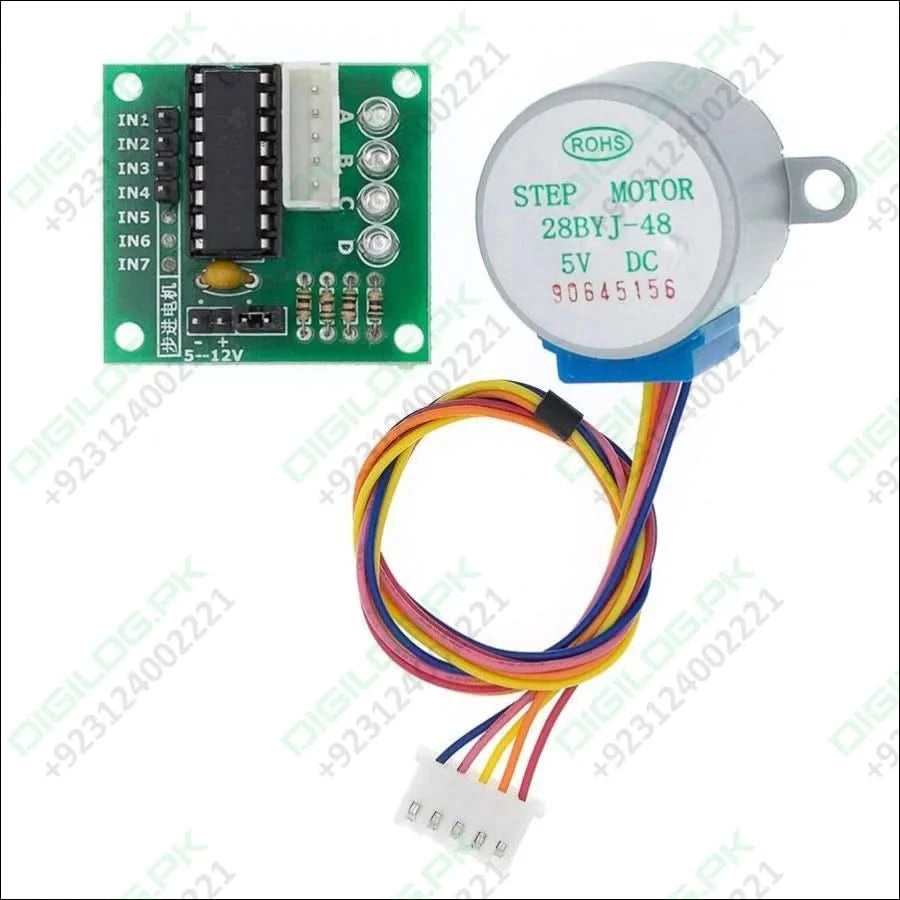

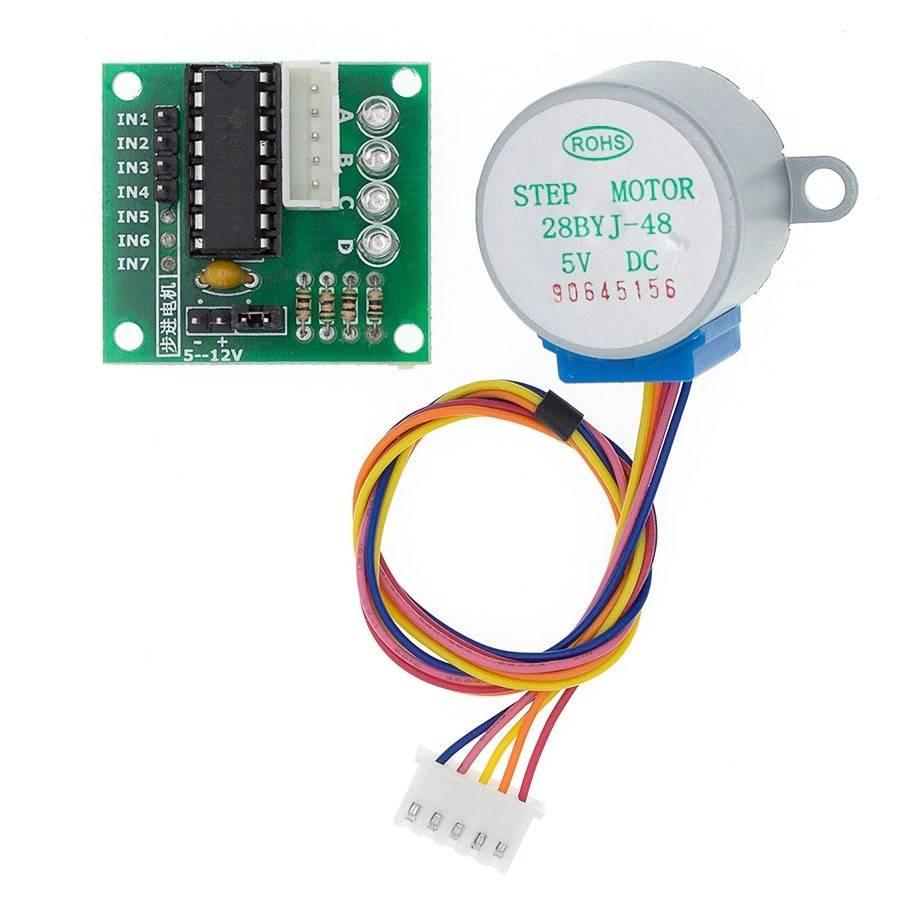

Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, featuring a green circuit board with seven input pins and a white motor with a five-wire cable.
Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, showing the motor, driver module, and multi-coloured ribbon cable with a white connector.
Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, featuring a silver cylindrical motor with a brass shaft and a green PCB with a white connector.
Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, featuring a green circuit board with seven input pins and a white motor with a five-wire cable.
Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, showing the motor, driver module, and multi-coloured ribbon cable with a white connector.

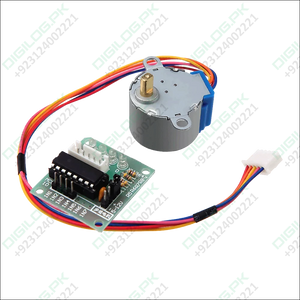

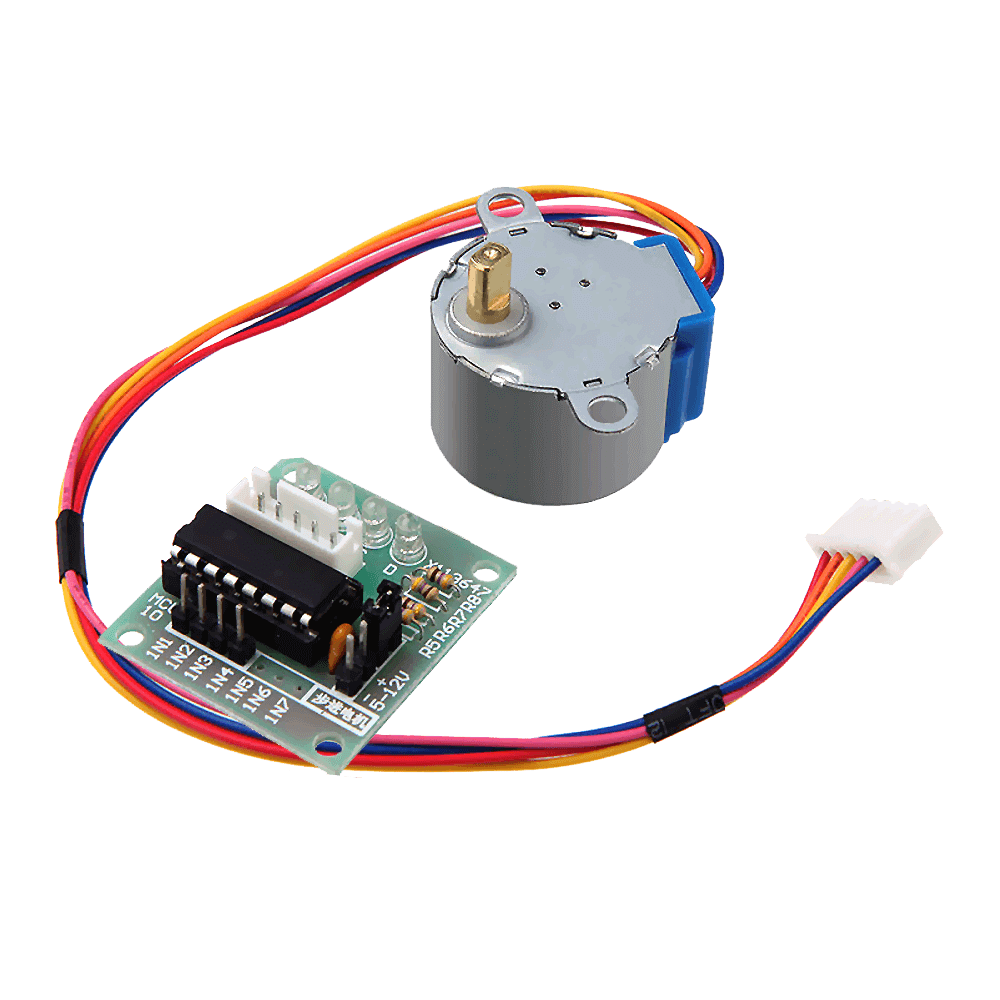

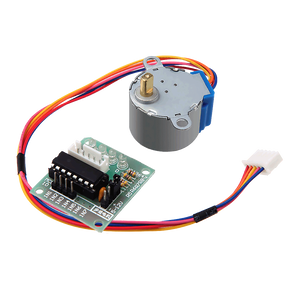

Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver

Sale price Rs 340
SKU:
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, featuring a silver cylindrical motor with a brass shaft and a green PCB with a white connector.

Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver - board, featuring a silver cylindrical motor with a brass shaft and a green PCB with a white connector.
Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver
Sale priceRs 340

Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor with Gear Reduction, so it has good torque for its size, but relatively slow motion. These motors/drivers are made by the millions for A/C units, fans, duct controls etc. which is why they are so inexpensive. Available in 5V or 12V.

28BYJ-48 Stepper Motor with ULN2003 driver card | Samm Market

Details/ Specificatoins:

  1. Model : 28BYJ-48
  2. Number of Phase : 4
  3. Speed Variation Ratio : 1/64
  4. Stride Angle : 5.625° /64
  5. Rated voltage : DC [5v - 12v]
  6. DC resistance : 5v: 60Ω±7%(25℃); 12v: 130Ω±7%(25℃)
  7. Frequency : 100Hz
  8. Idle In-traction Frequency : > 600Hz
  9. Idle Out-traction Frequency : > 1000Hz
  10. In-traction Torque >34.3mN.m(120Hz)
  11. Self-positioning Torque : 5v: >29.3mN.m; 12v: >42.1mN.m
  12. Friction torque : 600-1200 gf.cm
  13. Pull in torque : 300 gf.cm
  14. Insulated resistance >10MΩ(500V)
  15. Insulated electricity power : 600VAC/1mA/1s
  16. Insulation grade : A
  17. Rise in Temperature <40K(120Hz)
  18. Noise <35dB(120Hz,No load,10cm)



Package Includes:

  • 1 X Stepper motor
  • 1 X uln2003 driver


IMG_1357IMG_1360IMG_1366IMG_1374IMG_1402
