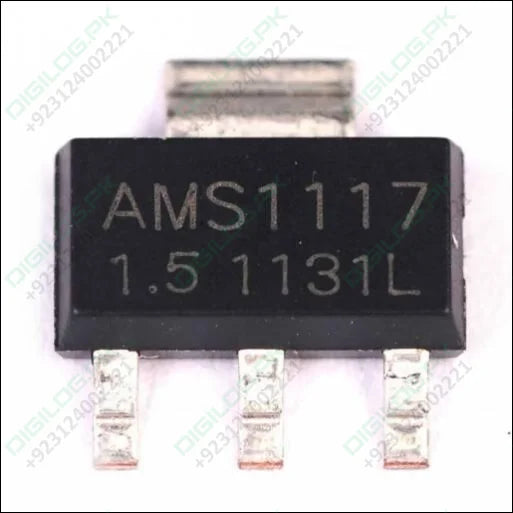

AMS1117 1.5V Voltage Regulator - a black SOT-223 electronic component with three metal pins and a top heat sink tab, showing printed text on its face.

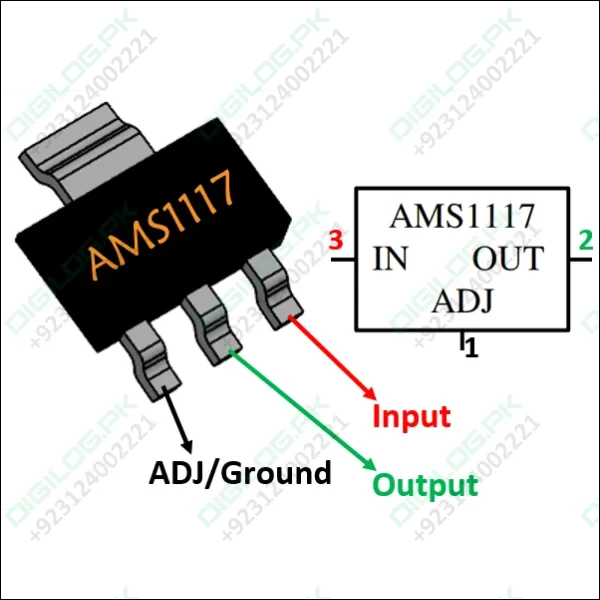

AMS1117 1.5V Voltage Regulator - shown as a black three-pin component alongside a schematic diagram labeling the ADJ, output, and input pins.
Sold out

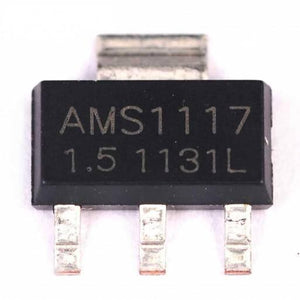

AMS1117 1.5V Voltage Regulator - a black SOT-223 electronic component with three metal pins and a top heat sink tab, showing printed text on its face.

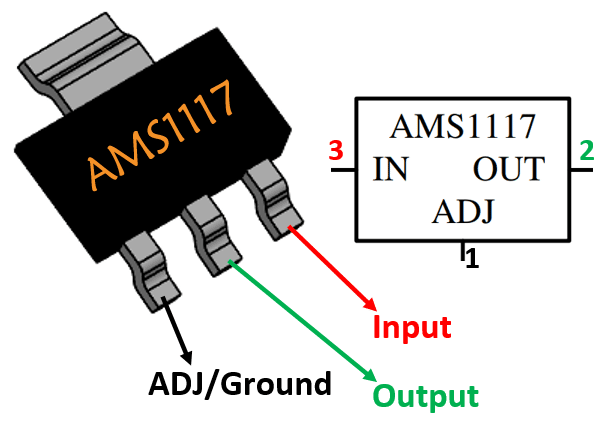

AMS1117 1.5V Voltage Regulator - shown as a black three-pin component alongside a schematic diagram labeling the ADJ, output, and input pins.

AMS1117 1.5V Voltage Regulator

Sale price Rs 30
SKU: b244
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

AMS1117 LDO Regulator Pinout, Datasheet, Features & Equivalents

The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to1A output current and to operate down to 1V input-to-output differential, Three Terminal Adjustable or Fixed Voltages. High Efficiency Linear Regulators AMS1117 1.5V. Post Regulators for Switching Supplies. Output Current of 1A • 5V to 3.3V Linear Regulator.

The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.

Features of AMS1117 1.5v Fixed Voltage Regulator:

  • RoHS Compliant
  • Output Voltage: 1.5
  • Output Current: 800mA
  • Operates Down to 1V Dropout
  • Line Regulation: 0.2% Max
  • Load Regulation: 0.4% Max
  • Package: SOT-223
