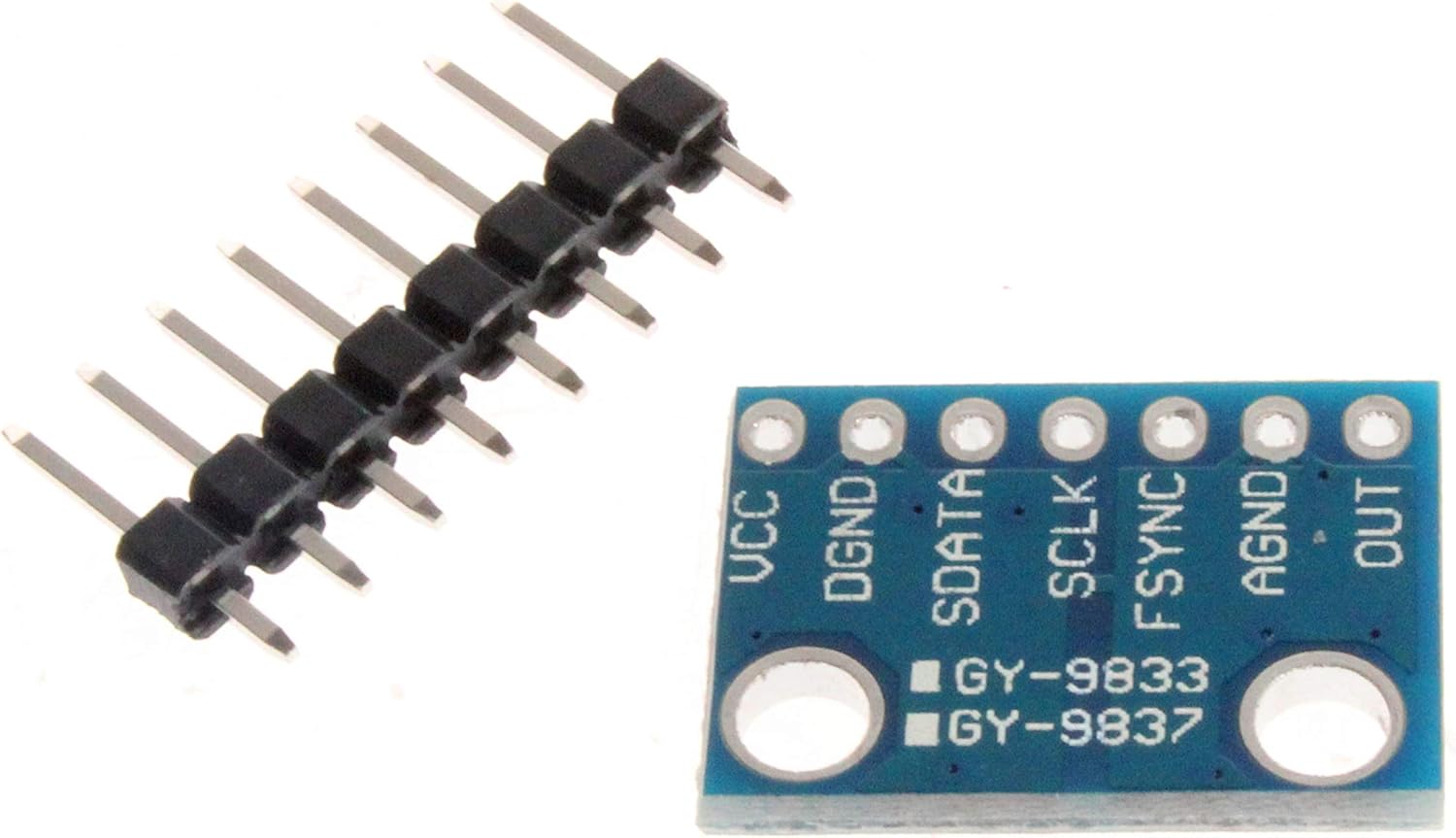

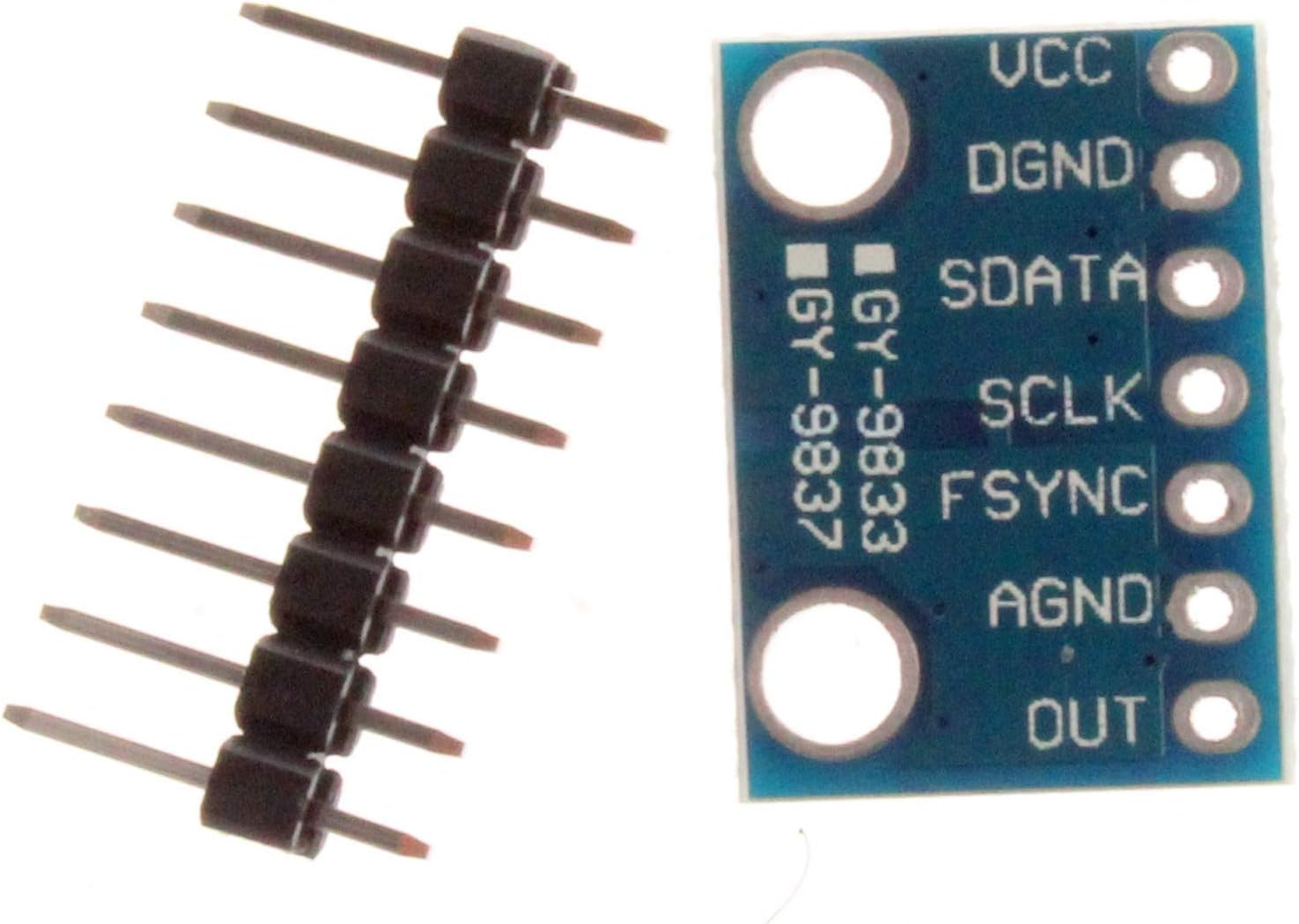

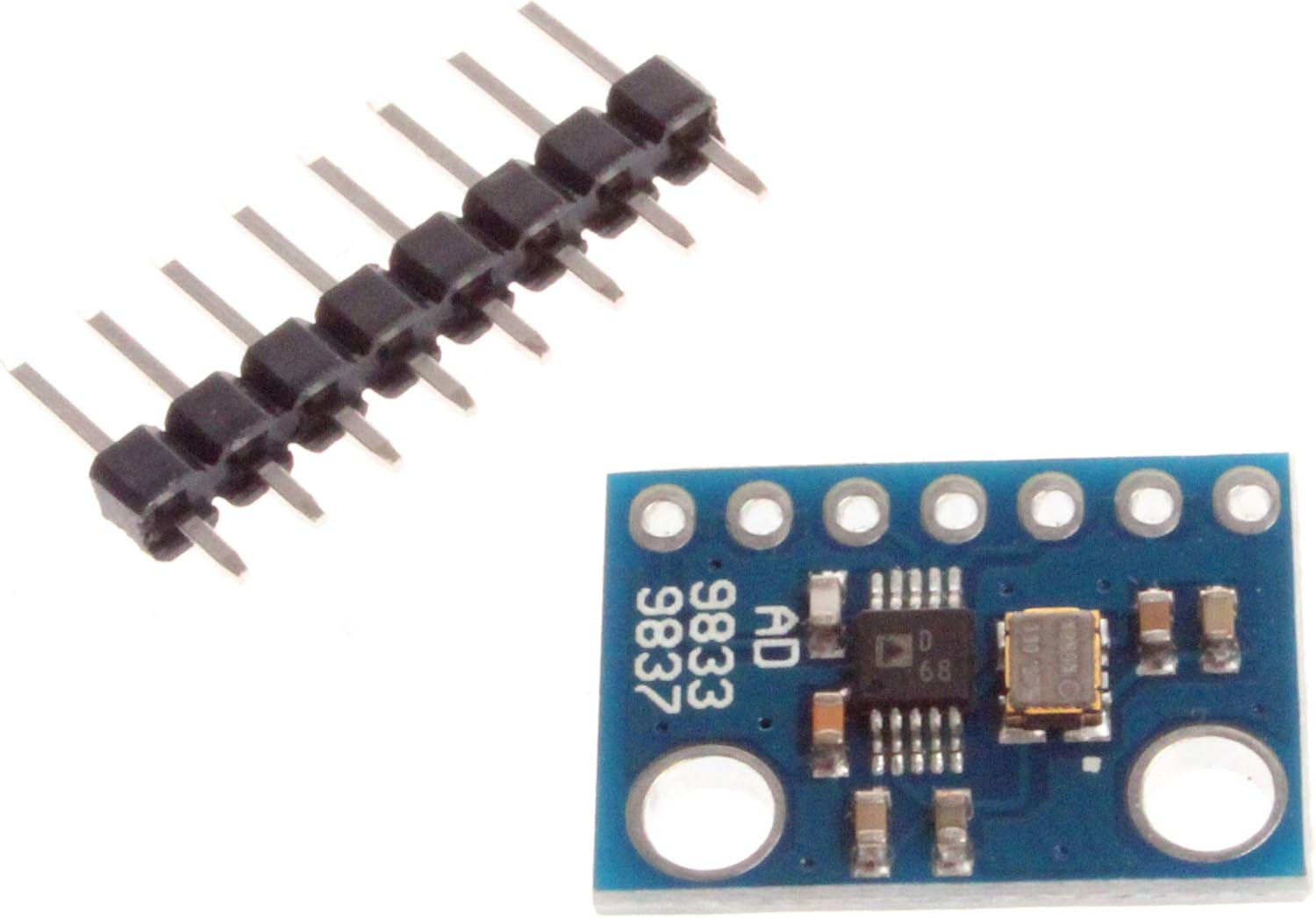

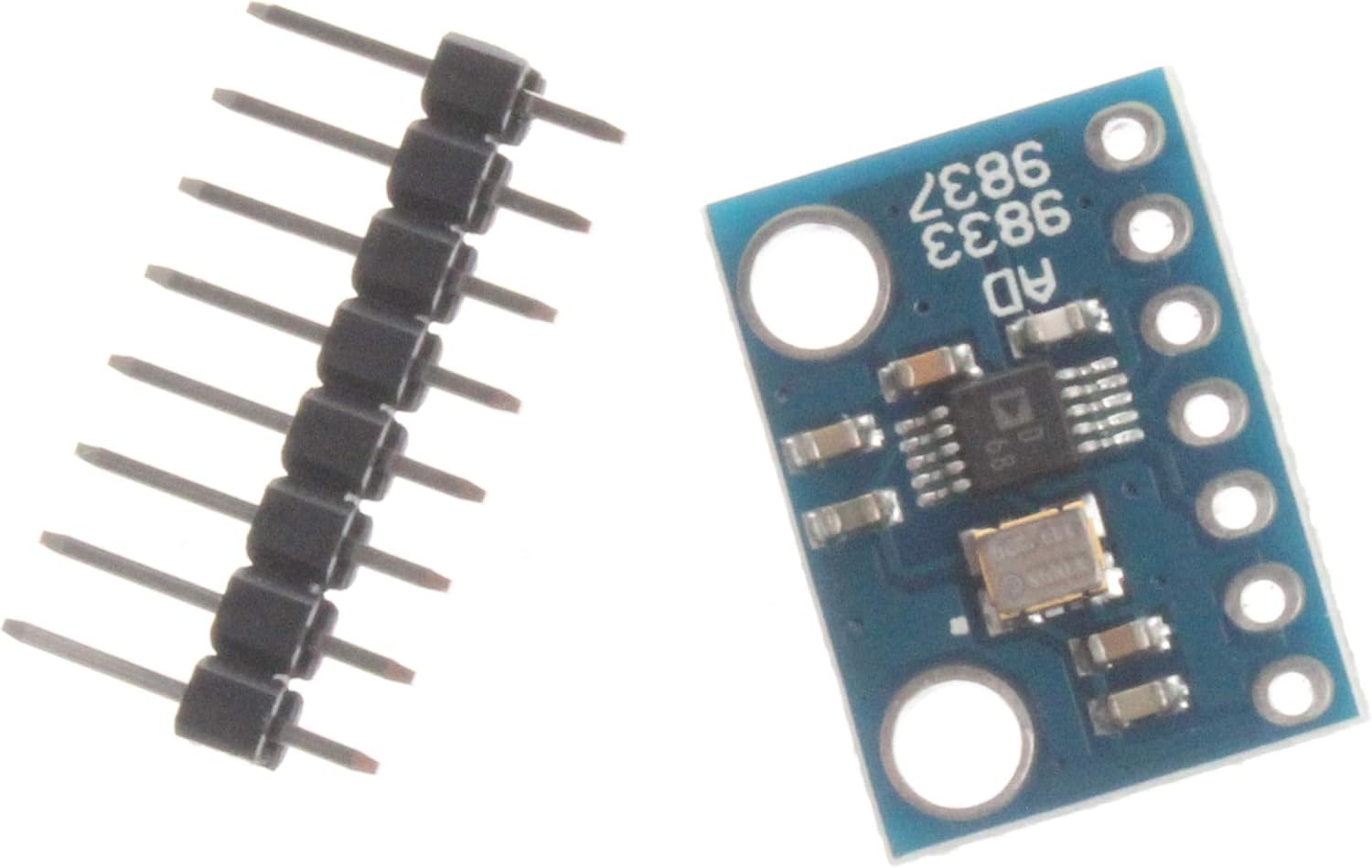

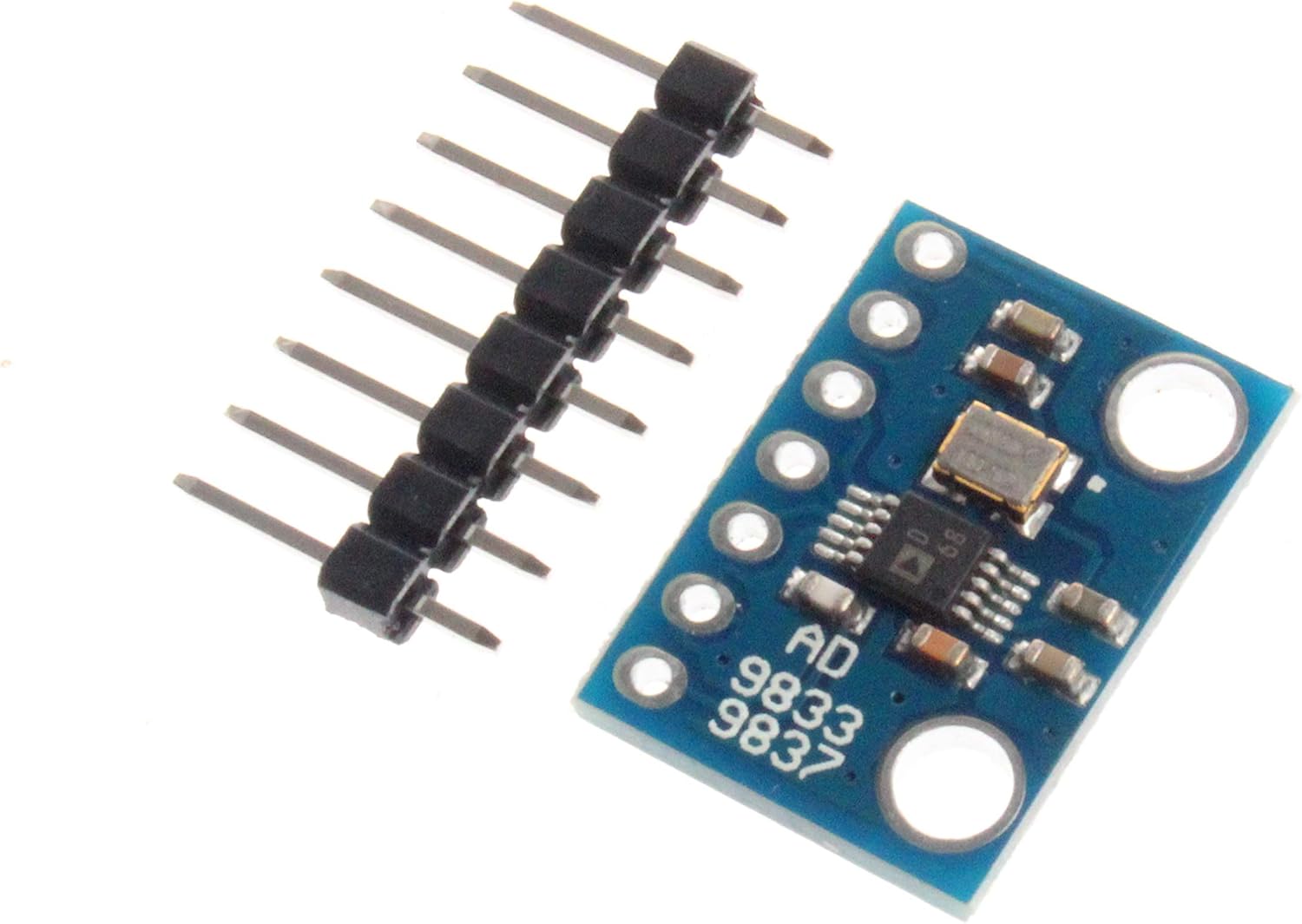

AD9833 AD9837 Programmable Signal Function Generator – DDS for Arduino
The AD9833 AD9837 Programmable Signal Function Generator is a powerful tool for Arduino projects. First, it uses Direct Digital Synthesis (DDS) technology to generate accurate sine, square, and triangular waves.
Next, it works perfectly for signal testing, audio applications, and various electronic projects. Then, it stays compatible with Arduino boards, so you can easily connect it to your setup. Finally, its compact size helps you integrate it smoothly into any project.
Key Features
- First, it functions as a generator with sine, square, and triangular wave outputs.
- Next, it delivers high precision by using DDS technology for accurate signal generation.
- Then, it offers a wide frequency range 0 to 12.5 MHz for AD9833 and up to 25 MHz for AD9837.
- After that, it allows easy integration with Arduino and other microcontrollers.
- Moreover, it lets you adjust frequency, phase, and amplitude with ease.
- Finally, it uses low power, making it perfect for efficient and portable projects.
Applications
- First, use it for audio signal generation during testing and experimentation.
- Next, apply it for precision signal generation in frequency response testing.
- Then, rely on it for electronic signal testing and diagnostics.
- After that, include it in educational projects focused on signal processing studies.
- Finally, use it for communication and RF signal testing with accurate results.
Related Product
Learn More
Frequently Asked Questions (FAQs)
Q1: What is the frequency range of the AD9833?
A: The AD9833 can generate frequencies from 0 Hz to 12.5 MHz, depending on the input clock frequency.
Q2: Can I control the amplitude of the signal output?
A: Yes, the AD9833/AD9837 allows control over the output amplitude and frequency using the connected microcontroller.
Q3: Is it compatible with Arduino?
A: Yes, this signal generator module is fully compatible with Arduino boards and can be easily interfaced with them using simple wiring and code.
Q4: Can it generate triangular waves?
A: Yes, the module can generate sine, square, and triangular waves for various applications.
Package Includes

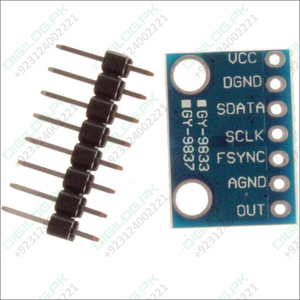

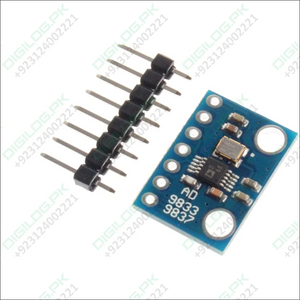

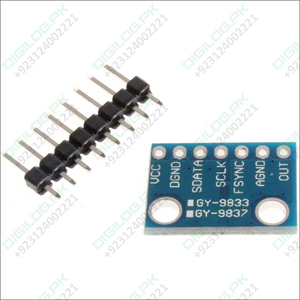

- 1 × AD9833/AD9837 Programmable Signal Generator Module
- 1 × Pin Header
