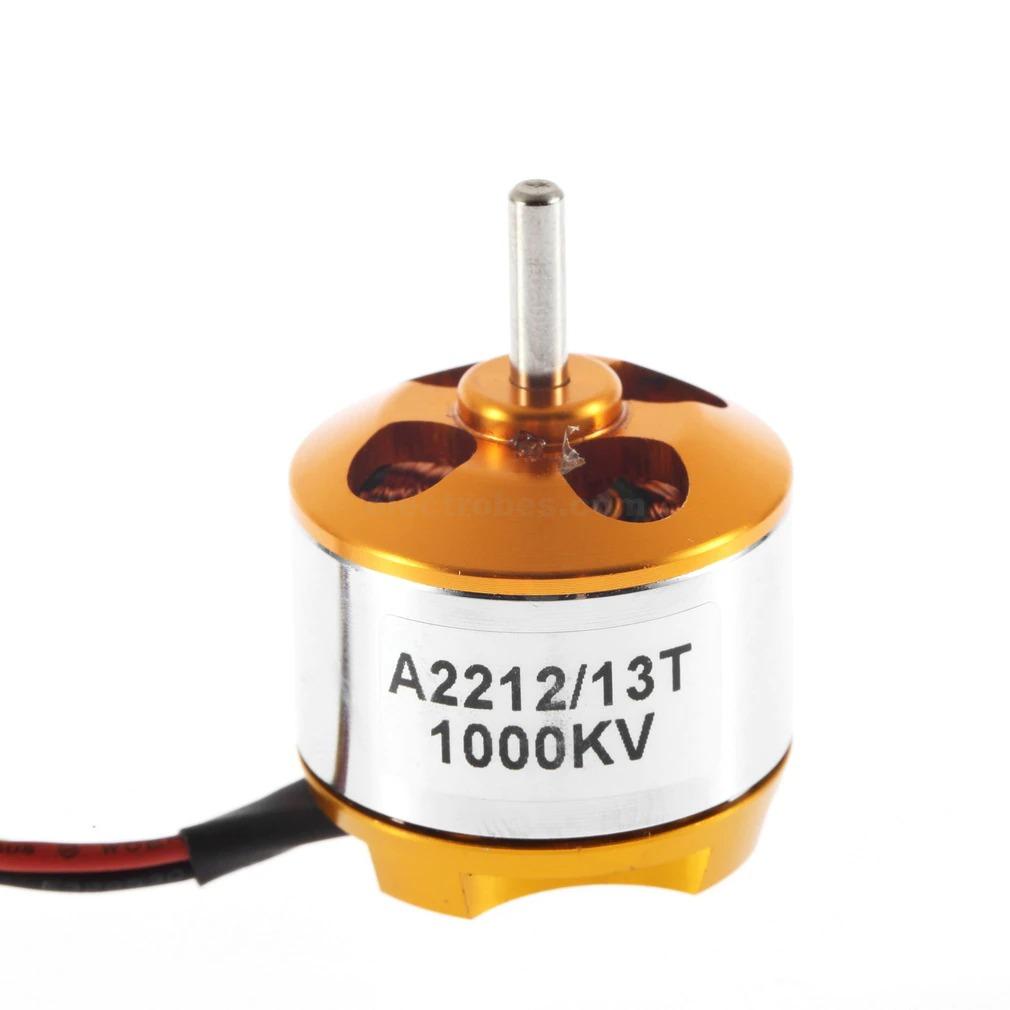

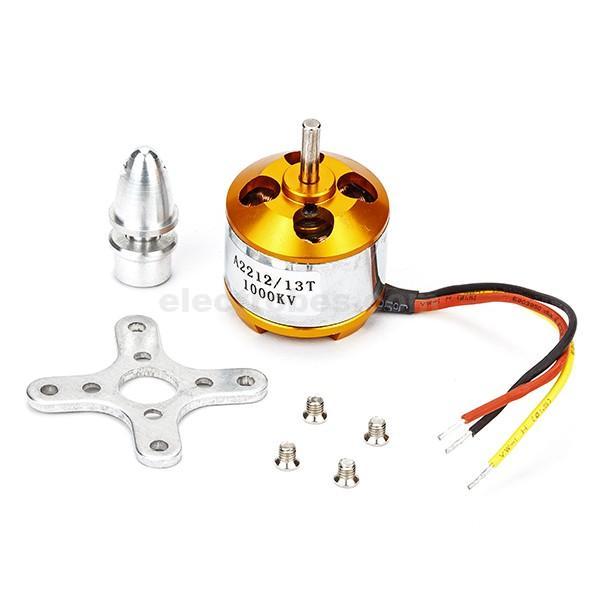

The A2212/13T 1000KV Brushless DC Motor is designed for RC drones, quadcopters, RC airplanes, and DIY aircraft projects. It features a brushless outrunner design that provides efficient motor operation for hobby and educational applications.

This motor is suitable for drone-building projects and remote-controlled aircraft. It works with a compatible Electronic Speed Controller (ESC), battery, and propeller.

Key Features:

• 1000KV brushless motor

• Outrunner motor design

• Suitable for RC drones and quadcopters

• Compatible with suitable 2S–3S LiPo battery systems

• Lightweight metal construction

• Ideal for DIY drone and RC aircraft projects

Applications:

• RC drones and quadcopters

• RC airplanes

• DIY electronics projects

• Educational engineering projects

   Product Specifications

  • Model: A2212/13T

  • Motor Type: Brushless DC Motor (BLDC)

  • KV Rating: 1000KV

  • Winding: 13 Turns (13T)

  • Motor Design: Outrunner

  • Battery Compatibility: 2S–3S LiPo

  • Nominal Voltage: 7.4V–11.1V

  • Maximum Current: 13A (60 seconds)

  • Maximum Power: 150W

  • No-Load Current: 0.5A at 10V

  • Winding Resistance: 0.090Ω

  • Maximum Efficiency: 80%

  • Motor Diameter: Approximately 28mm

  • Motor Length: Approximately 28mm

  • Shaft Diameter: Approximately 3.2mm

  • Motor Weight: Approximately 52.7g

  • Application: RC Drones, Quadcopters and RC Aircraft
