A1104e A04e New Original Hall Monopole Switch Small Volume To-92ua
The Allegro® A1104 Hall-effect switches are next-generation replacements for the popular Allegro 312x and 314x lines of unipolar switches. The A110x family, produced with BiCMOS technology, consists of devices that feature fast power-on time and low-noise operation. Device programming is performed after packaging, to ensure increased switch point accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and low-offset amplifiers help to minimize noise and to reduce the residual offset voltage normally caused by device over molding, temperature excursions, and thermal stress. The A1104 and Hall-effect switches include the following on a single silicon chip: voltage regulator, Hall-voltage generator, small-signal amplifier, Schmitt trigger, and NMOS output transistor. The integrated voltage regulator permits operation from 3.8 to 24 V.
Features:
- Continuous-time operation
- Fast power-on time
- Low noise
- Stable operation over the full operating temperature range
- Reverse battery protection
- Solid-state reliability
- Factory-programmed at end-of-line
- for optimum performance
- Robust EMC performance
- High ESD rating
- Regulator stability without a bypass capacitor
https://www.elecrow.com/download/A3141-2-3-4-Datasheet.pdf
Package Includes:

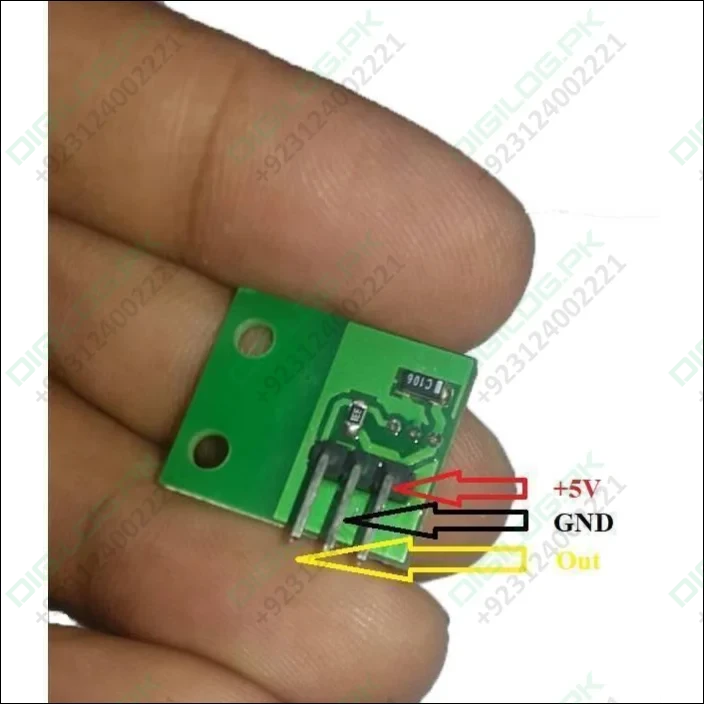

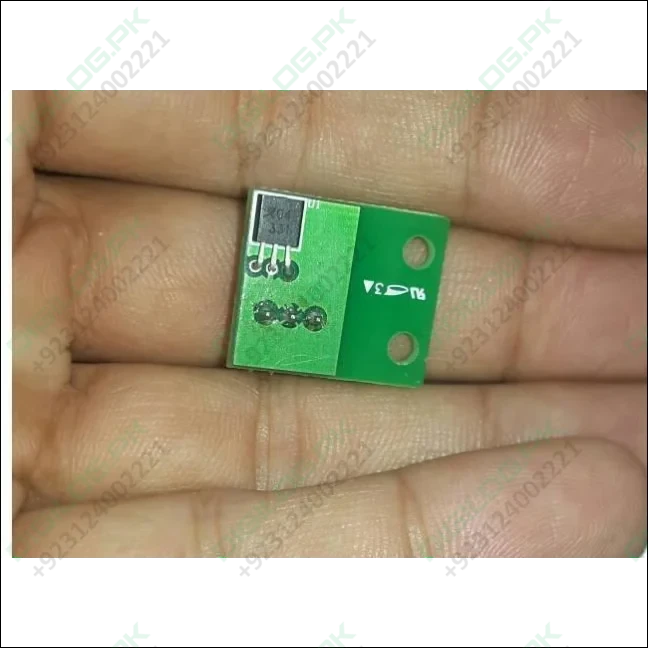

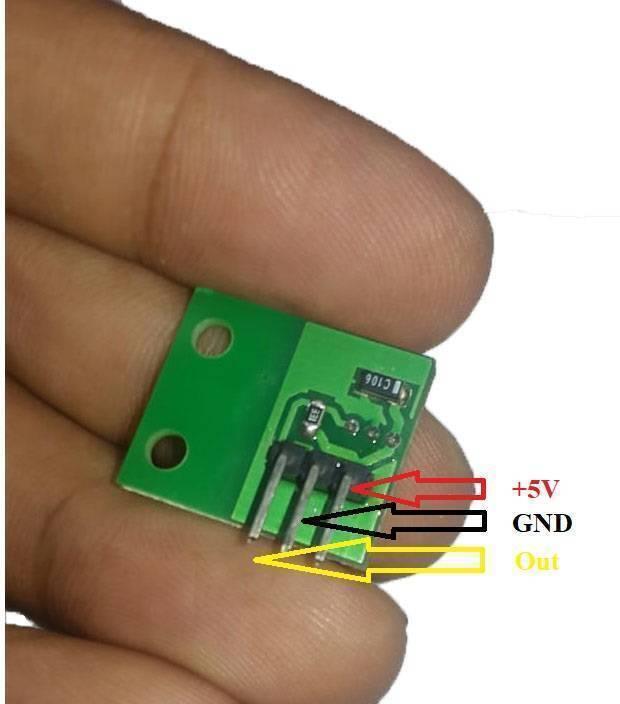

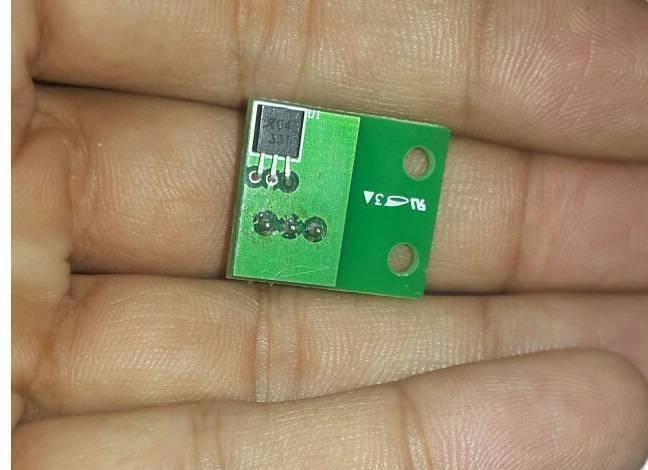

1x A1104E Hall effect sensor module
