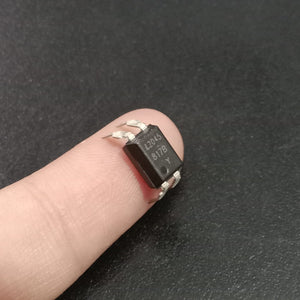

817B Optocoupler - a black, four-pin electronic component held on a finger, featuring the markings L2045, 817B, and Y on its top surface.

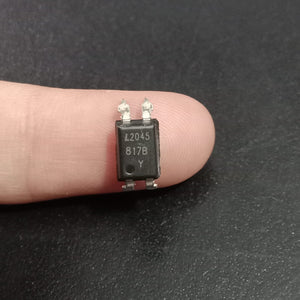

817B Optocoupler - a black, rectangular four-pin electronic component held between fingers, showing the text L2045, 817B, and Y printed on its surface.
817B Optocoupler - a black, four-pin electronic component held on a finger, featuring the markings L2045, 817B, and Y on its top surface.
817B Optocoupler - a black, rectangular four-pin electronic component held between fingers, showing the text L2045, 817B, and Y printed on its surface.

817B Optocoupler

Sale price Rs 35
SKU: sb33
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

817B Optocoupler - a black, four-pin electronic component held on a finger, featuring the markings L2045, 817B, and Y on its top surface.

817B Optocoupler

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
817B Optocoupler - a black, four-pin electronic component held on a finger, featuring the markings L2045, 817B, and Y on its top surface.
817B Optocoupler
Sale priceRs 35

This component is an 817B Optocoupler (also known as an Optoisolator) in a 4-pin package (common equivalents include PC817B, EL817B, or LTV-817B).

Marking Breakdown

  • 817B: Core part family (817 series) with a Rank B Current Transfer Ratio (CTR), which typically ranges from 130% to 260%.

  • L2045: Manufacturer batch / date code.

  • Small Dimple/Dot: Indicates Pin 1.

Pinout Configuration

Pin Name Description
Pin 1 (Dot mark) Anode (+) Input Infrared LED Positive terminal
Pin 2 Cathode (-) Input Infrared LED Negative terminal
Pin 3 Emitter Output Phototransistor Emitter
Pin 4 Collector Output Phototransistor Collector

Function & Typical Applications

An optocoupler transmits electrical signals using light rather than a direct wire, providing galvanic isolation between two parts of a circuit.

  • High-Voltage Protection: Protects sensitive microcontrollers (like Arduino, Raspberry Pi, or ESP32) from high voltages or voltage spikes on the load side.

  • Power Supplies: Commonly used in the feedback loop of Switched-Mode Power Supplies (SMPS) to regulate voltage safely.

  • Noise Reduction: Eliminates ground loops and isolates electrical noise in industrial control systems and relay driver circuits.
