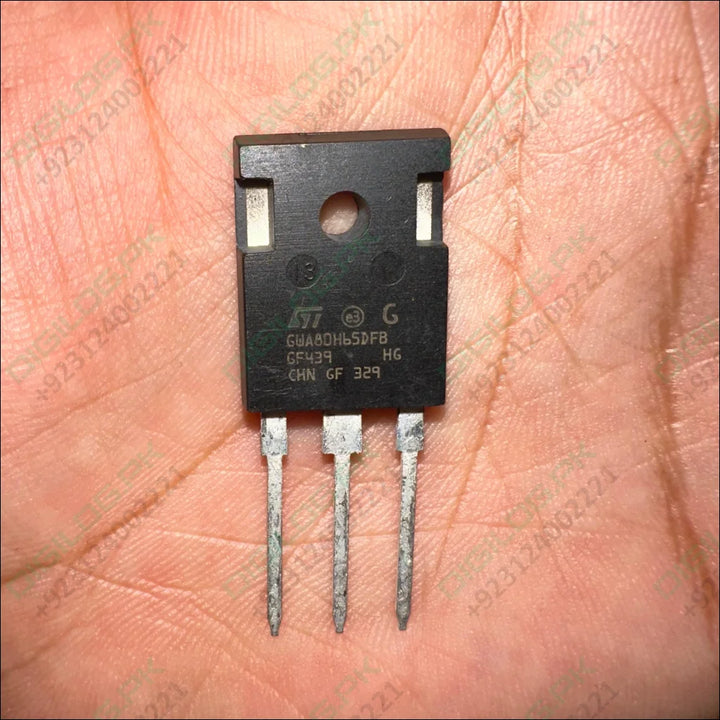

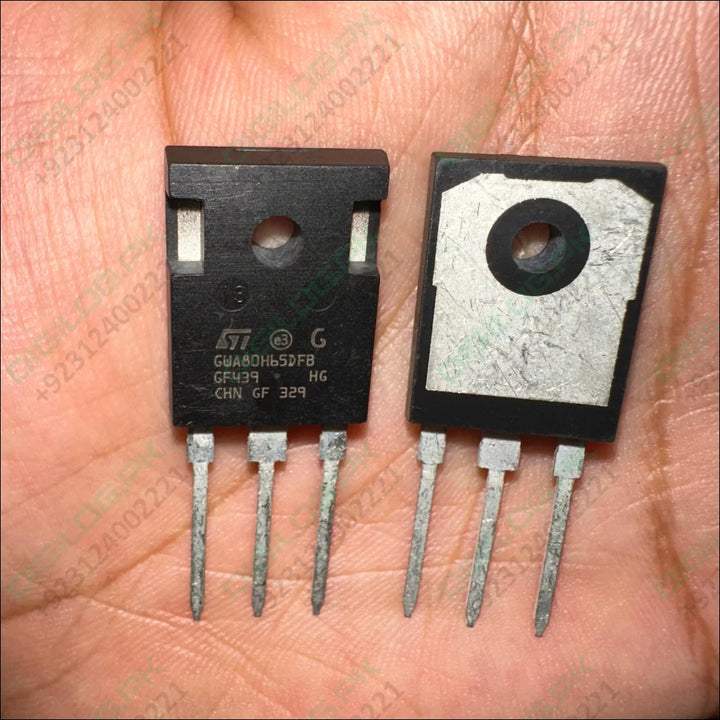

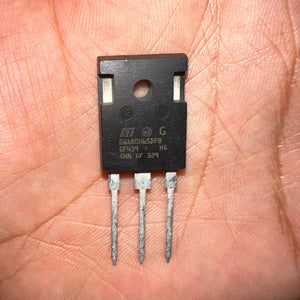

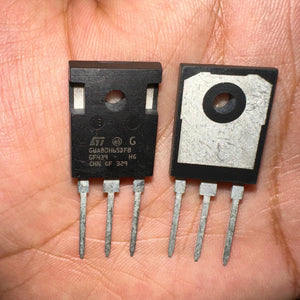

Copy 80N65 GW80H65 80H65 IGBT
Pickup available at Digilog Electronics
Usually ready in 2 hours
Copy 80N65 GW80H65 80H65 IGBT
The Copy GW80H65 80H65 IGBT, part of our HB series, combines high-speed switching with low saturation voltage, making it an excellent choice for frequency converters.
Features
-
Advanced Structure:
- Developed using a proprietary trench gate field-stop design.
-
Efficiency Maximization:
- Balances conduction and switching losses.
-
Safe Paralleling:
- Tight parameter distribution ensures secure parallel operation.
-
Fast Recovery Diode:
- Enhances performance in antiparallel applications.
Applications
-
Photovoltaic Inverters:
- Optimize energy conversion in solar power systems.
-
High-Frequency Converters:
- Efficiently handle variable frequencies.
Technical Specifications
- Voltage Rating: 650 V
- Continuous Collector Current: 80 A (TC = 100 °C)
- Junction Temperature: Up to 175 °C
🌐 Applications
-
🌞 Photovoltaic Inverters – Maximize solar energy efficiency
-
⚙️ Variable Frequency Drives (VFDs) – For industrial motor control
-
🔄 High-Frequency Converters – In telecom, UPS, and energy storage systems
📦 Package Includes
-
1 × GW80H65 IGBT Module
