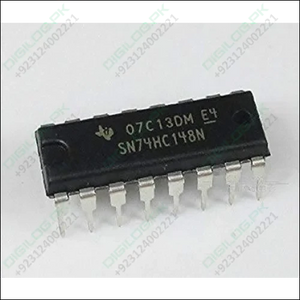

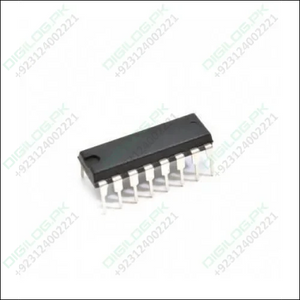

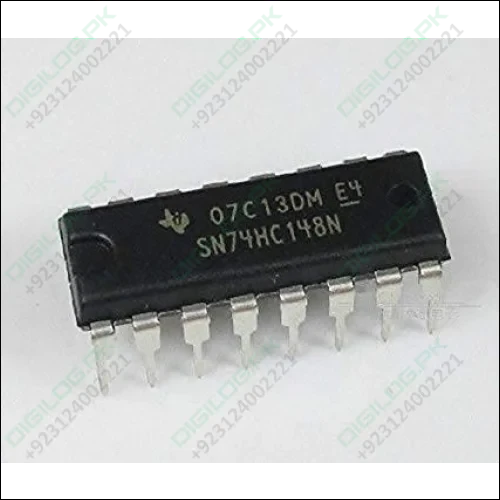

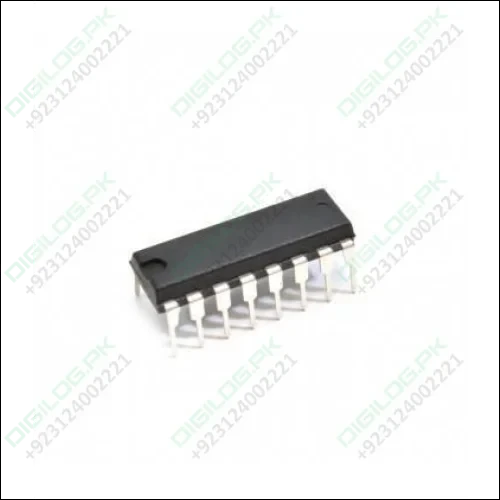

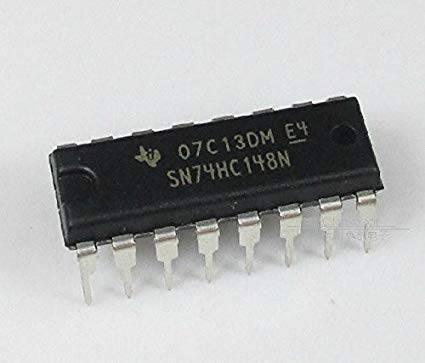

8 To 3 Line Priority Encoder Ic 74hc148
8 To 3 Line Priority Encoder Ic 74hc148
8 To 3 Line Priority Encoder Ic 74hc148

8 To 3 Line Priority Encoder Ic 74hc148

Rs 130 PKR
SKU: B249,Dell
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

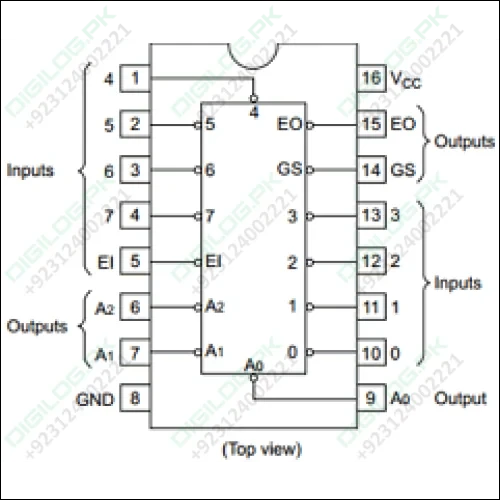

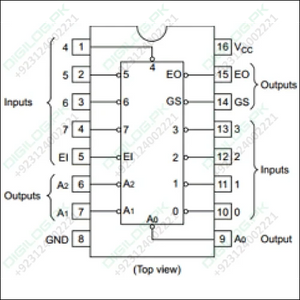

74HC148 is a 16 Pin 8-Line to 3-Line Priority Encoder IC having 2V to 6V Operating Voltage range with 5.2mA output current and low power consumption. It encodes Eight Data Lines to 3-Line Binary. It features priority decoding of the inputs to ensure that only the highest-order data line is encoded. Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry. Data inputs and outputs are active at the low logic level.

Specifications:

  1. Package Type:            DIP
  2. Voltage Rating:           2 to 6V
  3. Current Rating:           8mA Output Current, 1µA Maximum low input current
  4. Temperature Rating:    -40 to 85 Deg C
  5. Number of Pins:          16
  6. Propagation Delay:      16ns



Datasheet:

74HC148 IC Datasheet



Buy 74HC148 IC 8 to 3 Line Priority Encoder at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of Gate IC's. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan

Package Include:

1x 8 to 3 Line Priority Encoder IC 74HC148
