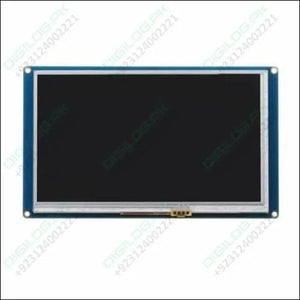

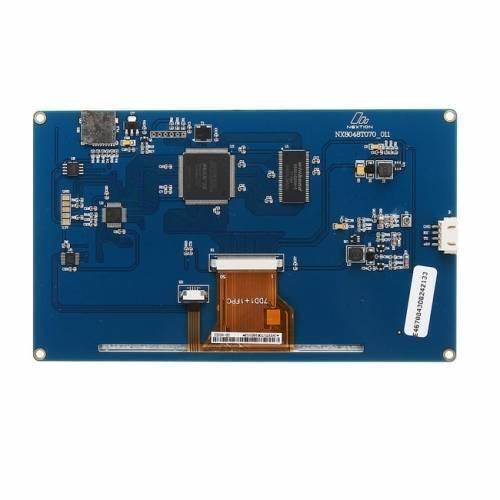

7 Inch Nextion Hmi Lcd Touch Display Screen Nx8048t070

Nextion 7″ TFT LCD Screen Module Display Panel For Raspberry Pi Arduino Kits is a seamless Human Machine Interface (HMI) solution. This 7 inches touch screen provides a control and visualization interface between a human and a process, machine, application or appliance. NX8048T070 7.0 Inch HMI Nextion LCD is mainly applied to the Internet of thing (IoT) or the consumer electronics field. This TFT screen is the best solution to replace the traditional LCD and LED Nixie tube. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. This Arduino touch screen 7 inches lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.

Features Of Nextion Display 7" NX8048T070 Resistive Touch Screen UART HMI LCD Module 800x480 for Arduino Raspberry Pi:

• Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.
• 800 x 480 Resolution.
• RGB 65K true to life colours.
• TFT Screen with integrated 4-wire Resistive Touch Panel.
• 4 pin TTL serial interface.
• 16M Flash memory for User Application Code and Data.
• Onboard micro-SD card slot for firmware up-gradation.
• Visual Area: 154.08mm(L)×85.92mm(W).
• Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%.
• Recommended Power Supply: 5V, 2A, DC.
• Certificates: CE/EMC, RoHS.

Specifications Of 7.0 Inch HMI Intelligent Resistive Touch Panel Board USART TFT LCD Module Work With Raspberry Pi:

1. Discontinued: No
2. Link Wiki: No
3. Display Resolution: 800 x 480
4. Display Interface: Serial
5. Screen Type: Touch Screen
6. Display Controller: No
7. TFT display interface: N/A
8. Display Size: 7.0”
9. Board Size: 181mm*108mm
10. Expand: SD Card SocketTouch Screen
11. Weight: 350 g

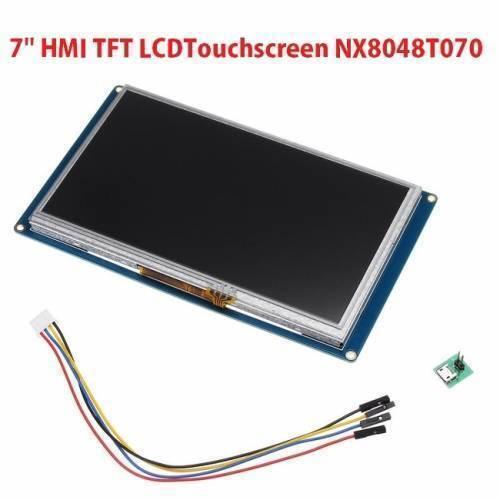

Package Includes:

• 1 x Nextion 7.0" HMI TFT Touch Display Screen

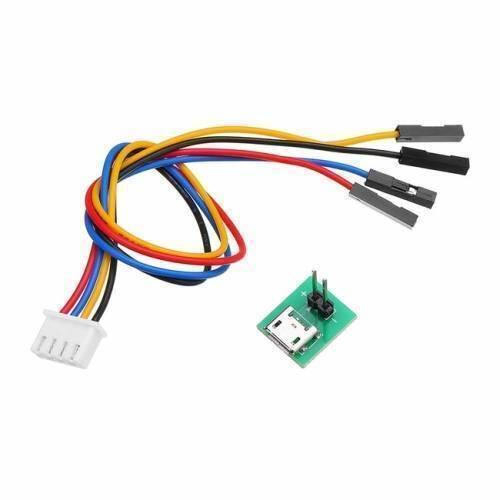

• 1 × Power supply test board
• 1 × 4-pin grove cable
