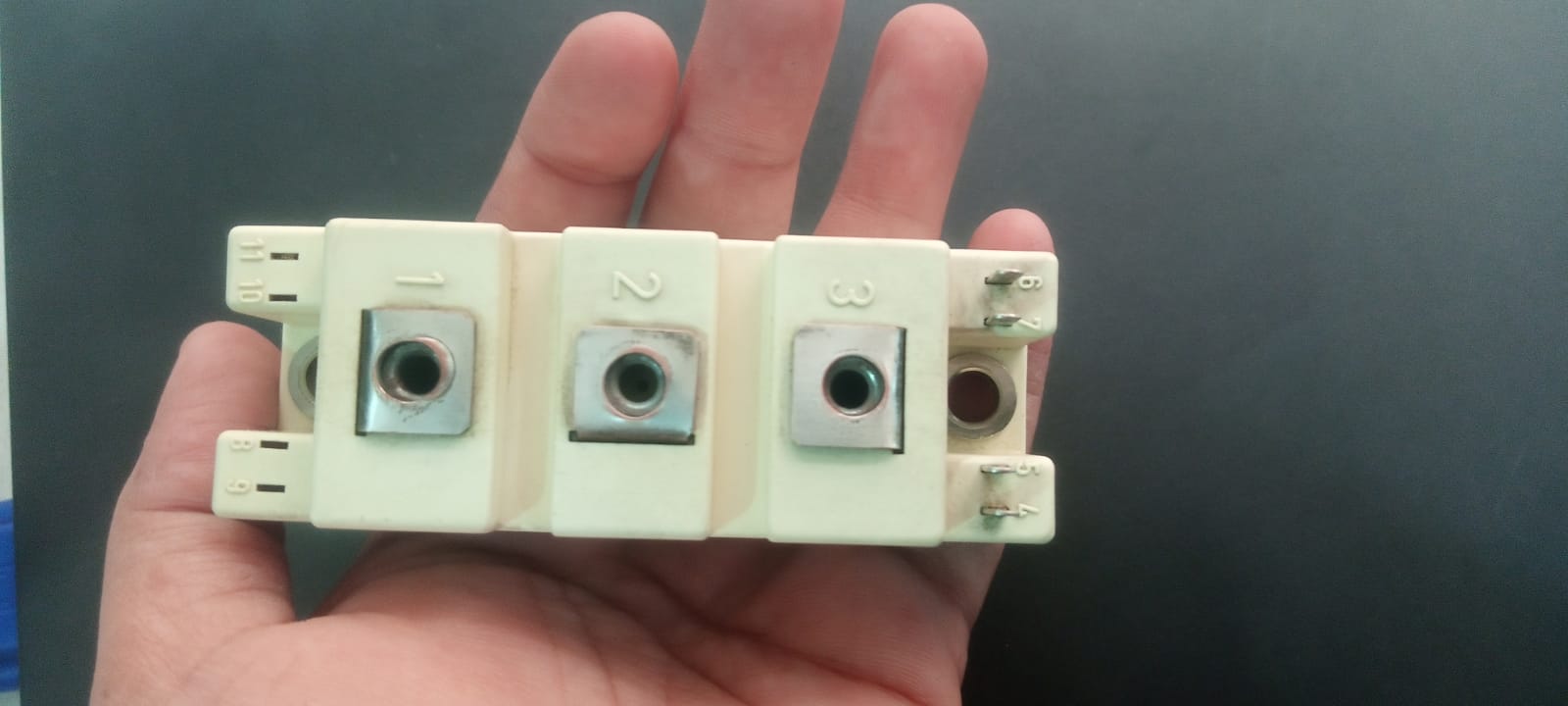

75A 1200V IGBT Module
Pickup available at Digilog Electronics
Usually ready in 2 hours
High-Power Switching Solution for Industrial Applications
The 75A 1200V IGBT Module always delivers fast, efficient, and reliable power switching. First, it handles high-speed switching with ease. Then, it reduces conduction loss, making it perfect for inverters, motor drives, UPS systems, and industrial automation projects.
Reliable, Efficient, and Built to Last
Right away, this module gives you a 75 Amp current rating, so it performs smoothly in high-power circuits. Next, it combines the speed of a MOSFET with the power of a transistor, giving you the best of both worlds. After that, it runs cool and stable, even in demanding environments. Finally, it lasts long thanks to its robust hybrid construction.
Applications
- Welding Machines
- Induction Heating Systems
- Solar and Wind Inverters
- Motor Control Circuits
- Uninterruptible Power Supplies (UPS)
- Electric Vehicle Controllers
Key Features
- Current Rating: 75A
- Voltage Rating: Typically up to 600V or 1200V (model-specific)
- High switching speed
- Low saturation voltage drop
- Compact and rugged design
- Long service life with proper thermal management
Related Products
Frequently Asked Questions (FAQs)
Q1: What does IGBT stand for?
A1: IGBT stands for Insulated Gate Transistor, a semiconductor device used for switching and amplifying signals.
Q2: Can I use this module for building an inverter?
A2: Yes, this 75A IGBT module is ideal for inverter applications, especially in high-power industrial setups.
Q3: Is a heat sink required?
A3: Yes, you should always ensure proper heat dissipation because it prevents thermal damage and keeps performance at its best.
Q4: What’s the difference between MOSFET and IGBT?
A4: IGBTs handle higher voltages and currents, whereas MOSFETs are better for lower power and high-frequency switching.
Package Includes
- 1 x 75A 1200V IGBT Module
