š Product Description:

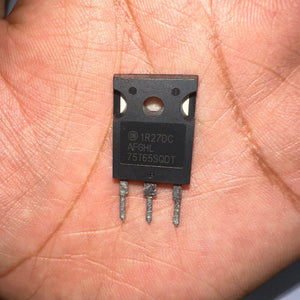

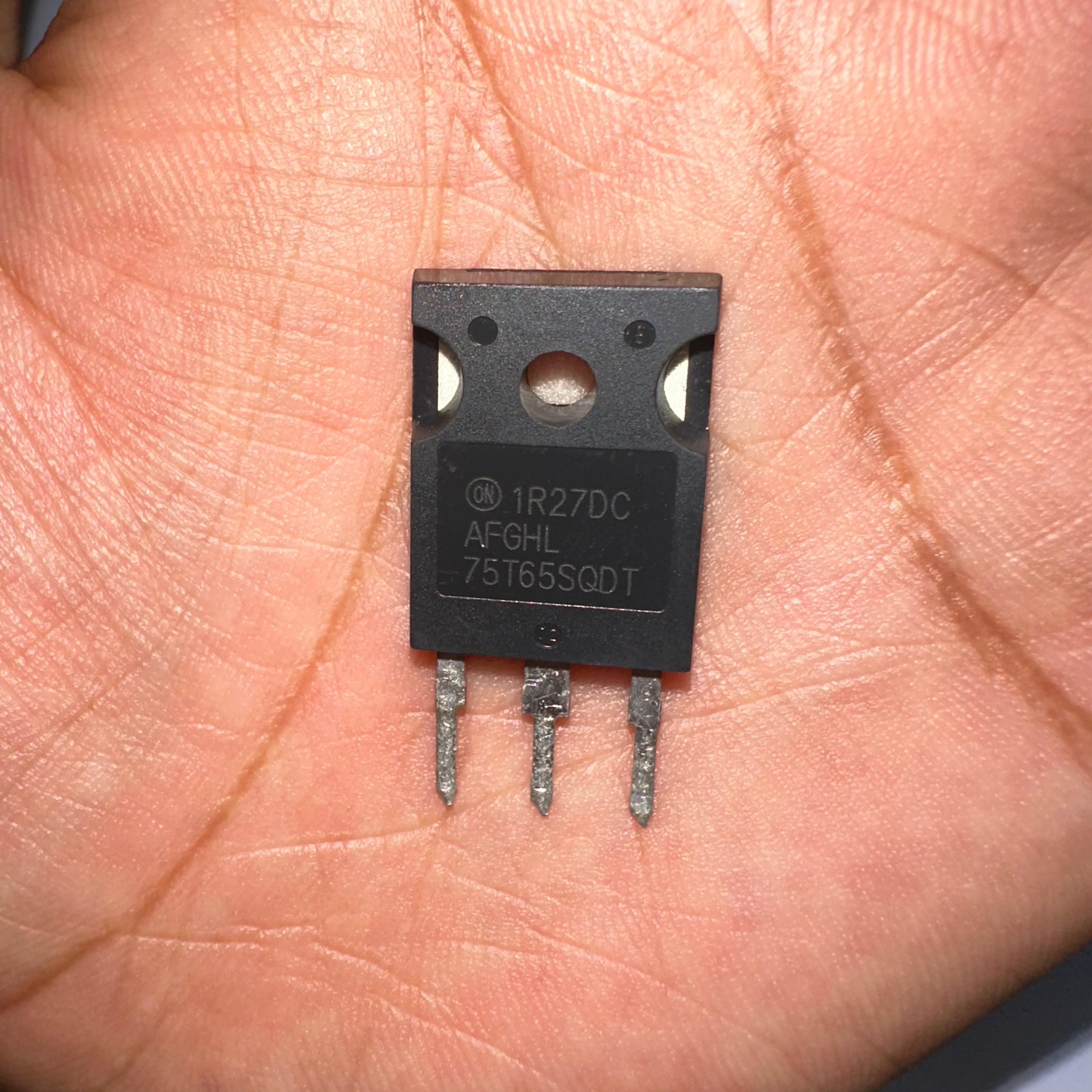

The 75T65SQDT is a 650V, 75A N-channel Field-Stop Trench IGBT from ON Semiconductor. It features an integrated soft, fast-recovery diode for efficient reverse current handling, making it ideal for hard-switching applications such as welding inverters, motor drives, UPS systems, and solar inverters.

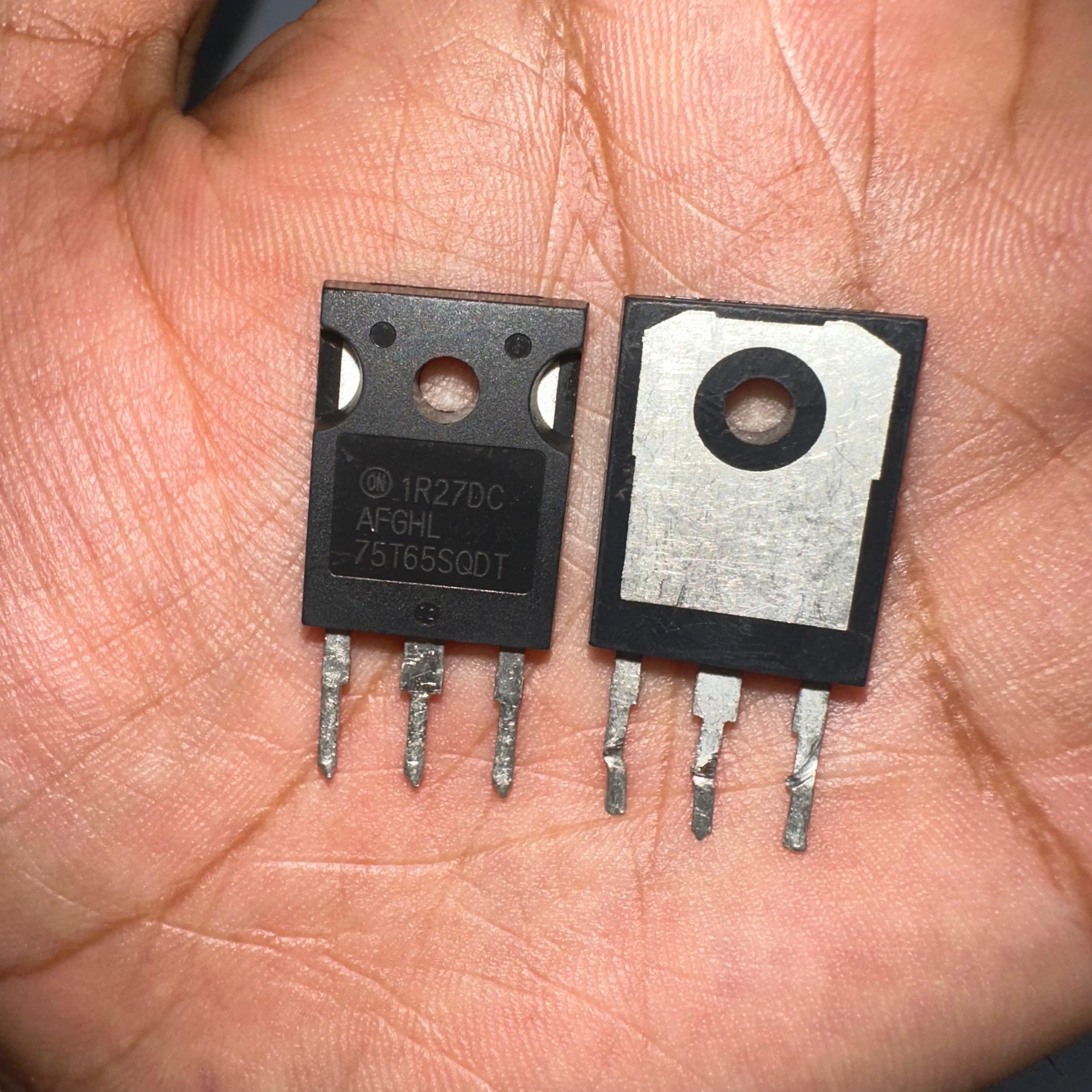

Designed for high performance, this IGBT delivers low conduction loss, fast switching times, and excellent ruggedness. The TO-247 package ensures superior thermal performance and easy mounting on heatsinks for high-power systems.
āļø Key Specifications:
| Parameter | Value |
|---|---|
| CollectorāEmitter Voltage (V<sub>CES</sub>) | 650āÆV |
| Continuous Collector Current (I<sub>C</sub>) | 75āÆA @ 100Ā°C |
| Pulsed Collector Current (I<sub>CM</sub>) | ~150ā200āÆA |
| Saturation Voltage (V<sub>CE(sat)</sub>) | ~1.65ā1.75āÆV @ 75āÆA |
| GateāEmitter Voltage (V<sub>GE</sub>) | Ā±20āÆV max |
| Total Gate Charge (Q<sub>g</sub>) | ~280ā350āÆnC |
| Turn-on / Turn-off Delay Times | ~50ā100āÆns typical |
| Junction Temperature Range (T<sub>j</sub>) | ā55Ā°C to +175Ā°C |
| Package Type | TOā247 (3-lead) |
| Built-in Diode | Soft fast recovery |
ā Features & Benefits:
-
High current rating of 75A for demanding power circuits
-
Low V<sub>CE(sat)</sub> reduces conduction losses
-
Fast switching with low tail current
-
Integrated fast diode supports bidirectional applications
-
TO-247 package ensures thermal stability and ease of mounting
-
Field-Stop Trench technology for ruggedness and efficiency
š§ Applications:
-
Welding inverters
-
Solar string inverters
-
UPS (Uninterruptible Power Supply)
-
Motor drives and industrial automation
-
EV charging and battery management systems
