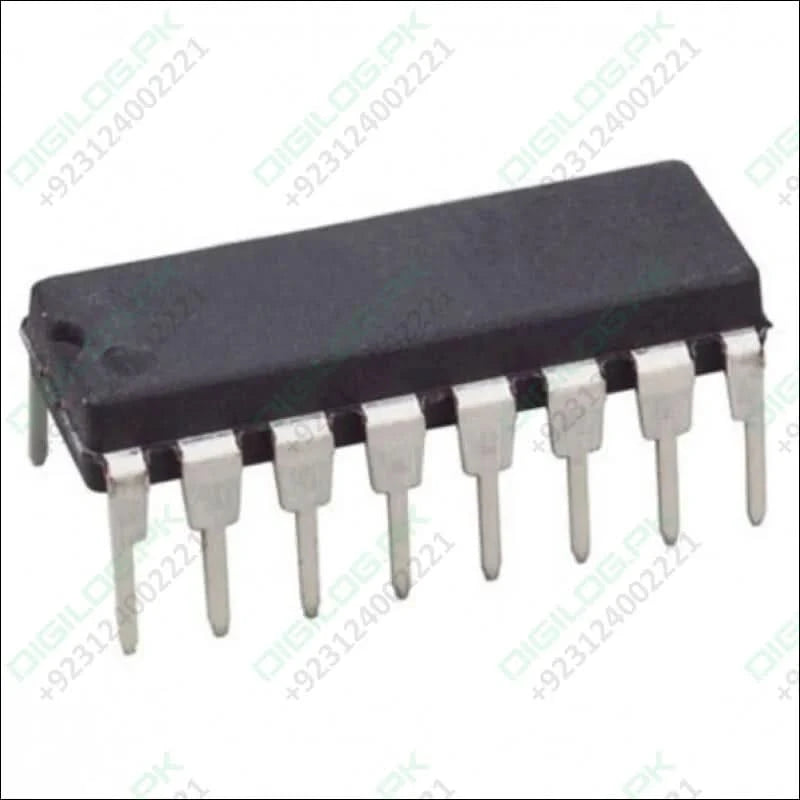

74LS189 64 Bit RAM with 3 State Output IC 74189 74HC189

74LS189 64 Bit RAM with 3 State Output IC 74189 74HC189

Regular price Rs 150
Regular price Sale price Rs 150
Sale Sold out
Shipping calculated at checkout.

SKU:b303

NOTIFY ME WHEN IN STOCK

The 74LS189 is a high-speed 64-bit RAM organized as a 16- word by the 4-bit array. Address inputs are buffered to minimize loading and are fully decoded on-chip. The outputs are 3-state and are in the high impedance state whenever the Chip Select (CS) input is HIGH. The outputs are active only in the read mode and the output data is the complement of the stored data.

Features:

  • 3-State Outputs For Data Bus Applications
  • Buffered Inputs Minimize Loading
  • Address Decoding On-Chip
  • Diode Clamped Inputs Minimize Ringing

Package Includes:

  • 1 x 74LS189 64 Bit RAM with 3 State Output IC 74189
View full details

Description

The 74LS189 is a high-speed 64-bit RAM organized as a 16- word by the 4-bit array. Address inputs are buffered to minimize loading and are fully decoded on-chip. The outputs are 3-state and are in the high impedance state whenever the Chip Select (CS) input is HIGH. The outputs are active only in the read mode and the output data is the complement of the stored data.

Features:

  • 3-State Outputs For Data Bus Applications
  • Buffered Inputs Minimize Loading
  • Address Decoding On-Chip
  • Diode Clamped Inputs Minimize Ringing

Package Includes:

  • 1 x 74LS189 64 Bit RAM with 3 State Output IC 74189
