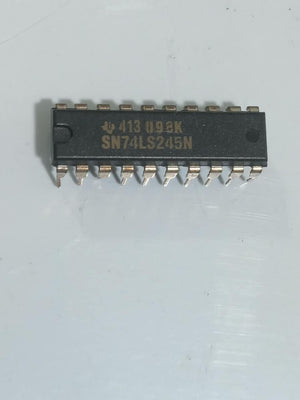

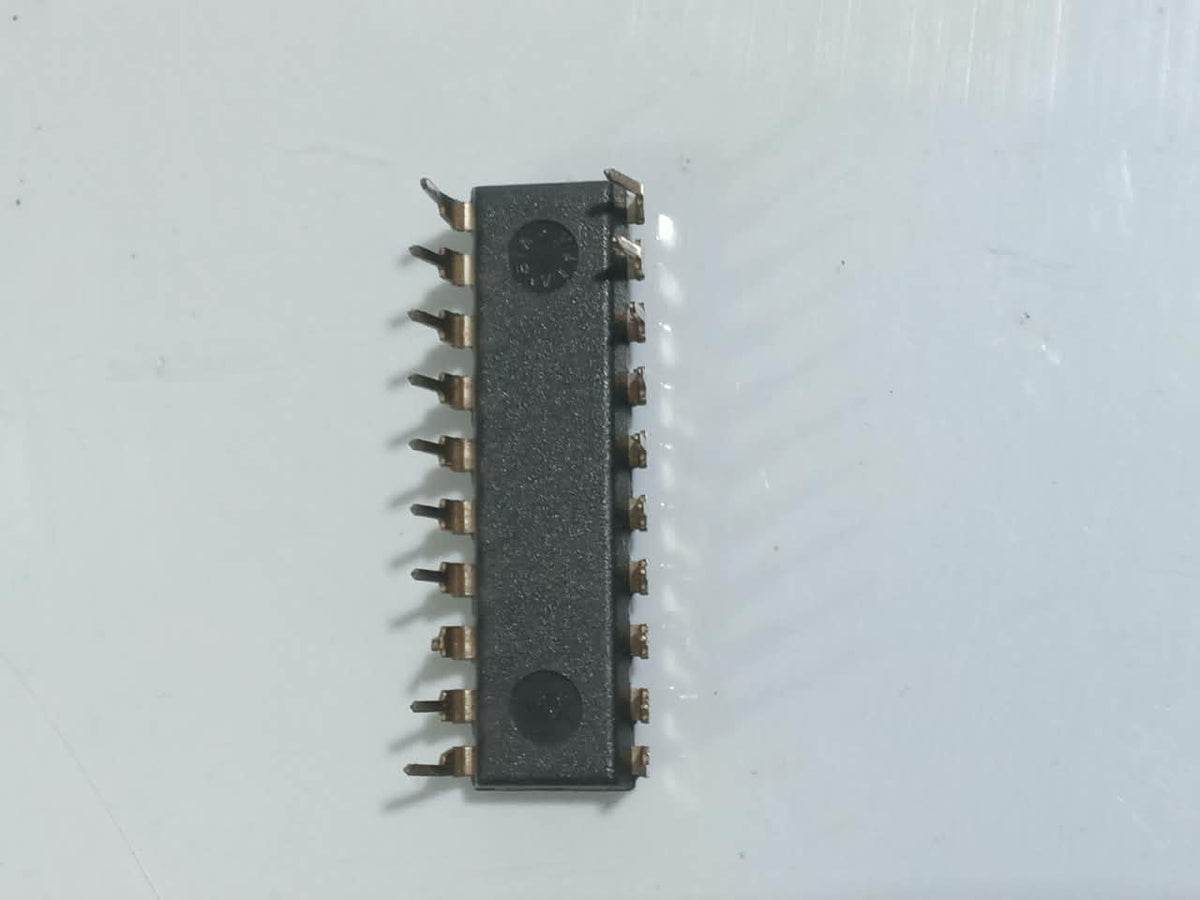

74245 Octal Bus Transceiver IC – DIP-20 Package

The 74245 octal bus transceiver IC provides bidirectional bus communication in a compact 20-pin DIP package. Its 3-state outputs drive bus lines directly, while PNP inputs reduce DC loading on the bus. Hysteresis at the bus inputs improves noise margins.

For a digital circuit that needs bidirectional bus interfacing, this DIP-20 bus transceiver brings together direct bus-line drive and a typical port-to-port propagation delay of 8 ns.

Key Features

• Bidirectional bus transceiver in a high-density 20-pin package.
• 3-state outputs drive bus lines directly.
• PNP inputs reduce DC loading on bus lines.
• Hysteresis at bus inputs improves noise margins.
• Typical port-to-port propagation delay: 8 ns.
• Typical enable/disable times: 17 ns.
• IOL (sink current): 24 mA.
• IOH (source current): −15 mA.

Specifications

• Package: DIP-20.
• Supply Voltage (VCC): 7 V.
• Input Voltage (VI): 7 V.
• Operating free-air temperature range: 0°C to +70°C.
• Storage temperature range: –65°C to +150°C.
