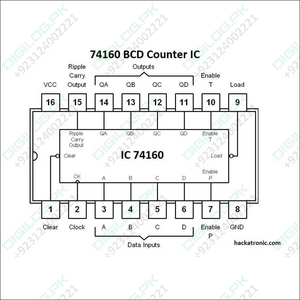

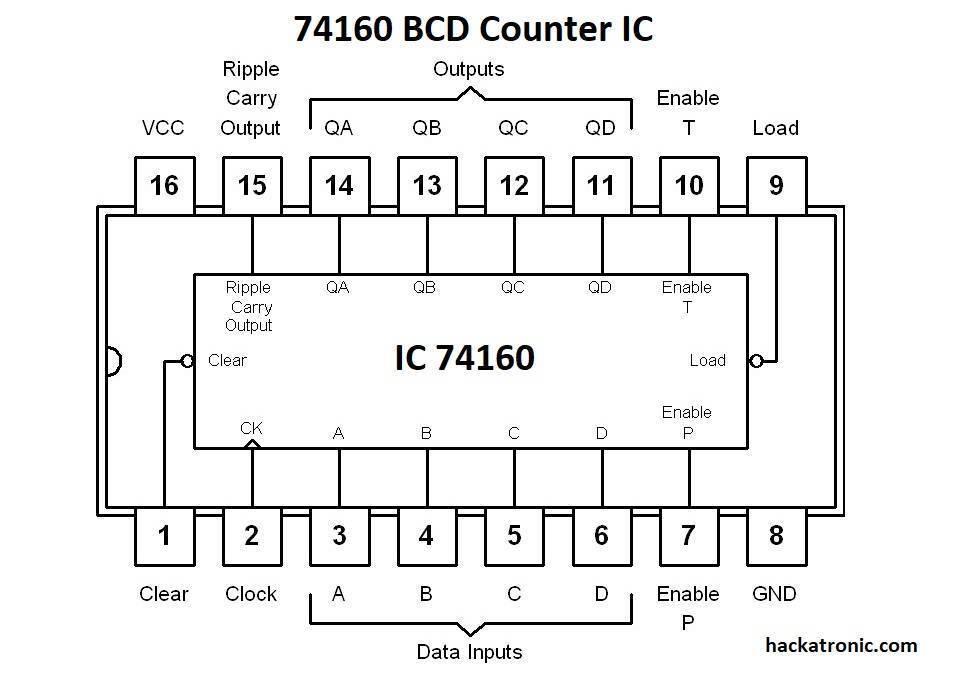

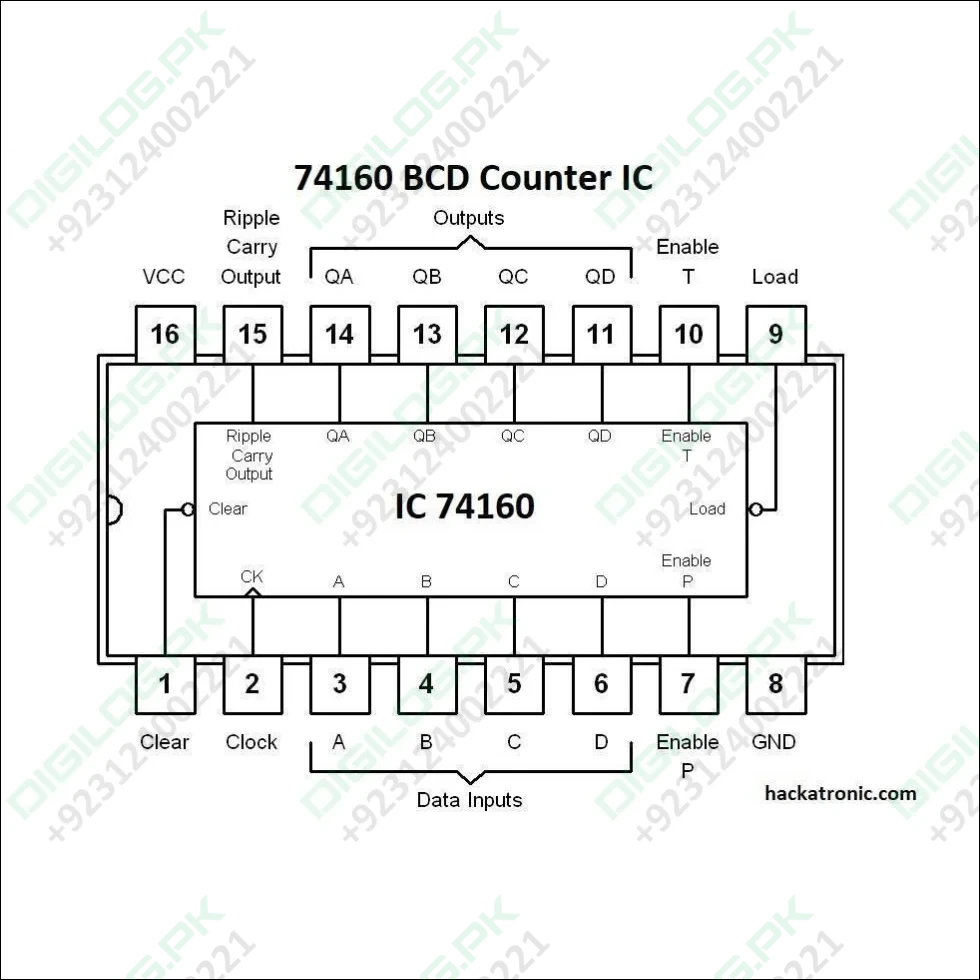

The 74160 BCD Counter IC is a synchronous 4-bit decade counter with asynchronous clear and synchronous load functions, designed for digital counting and frequency division applications in Pakistan. This TTL logic integrated circuit counts from 0 to 9 (BCD - Binary Coded Decimal) and provides ripple carry output for cascading multiple counters. Ideal for digital clocks, frequency counters, event counters, and educational electronics projects requiring reliable decade counting functionality.
Key Features
- 4-bit synchronous BCD decade counter counts from 0000 to 1001 (0 to 9 in decimal)
- Synchronous counting operation ensures all flip-flops change state simultaneously for glitch-free counting
- Asynchronous clear (reset) function allows immediate counter reset to zero
- Synchronous parallel load enables preset counter values for flexible counting sequences
- Ripple carry output (RCO) facilitates cascading multiple 74160 ICs for multi-digit counters
- TTL-compatible inputs and outputs work with standard 5V logic circuits in Pakistan
- DIP-16 package for easy breadboard prototyping and PCB mounting
Applications & Use Cases
- Digital clock circuits and time-keeping systems with BCD display decoders
- Frequency counters and event counting applications in electronics projects
- Digital frequency dividers for clock generation and timing circuits
- Multi-digit BCD counters by cascading multiple 74160 ICs
- Educational electronics and digital logic learning projects in Pakistan
- Industrial control systems requiring decimal counting and display
- Microcontroller interface circuits for counting external events
Technical Specifications
- Part Number: 74160 (SN74160, 74LS160, 74HC160 variants)
- Type: Synchronous 4-Bit BCD Decade Counter
- Count Range: 0 to 9 (BCD - Binary Coded Decimal)
- Logic Family: TTL (Transistor-Transistor Logic)
- Supply Voltage: 5V DC (4.75V to 5.25V typical)

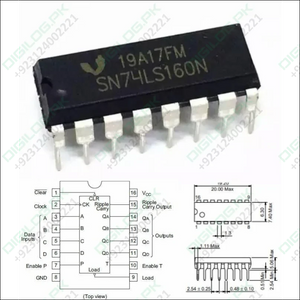

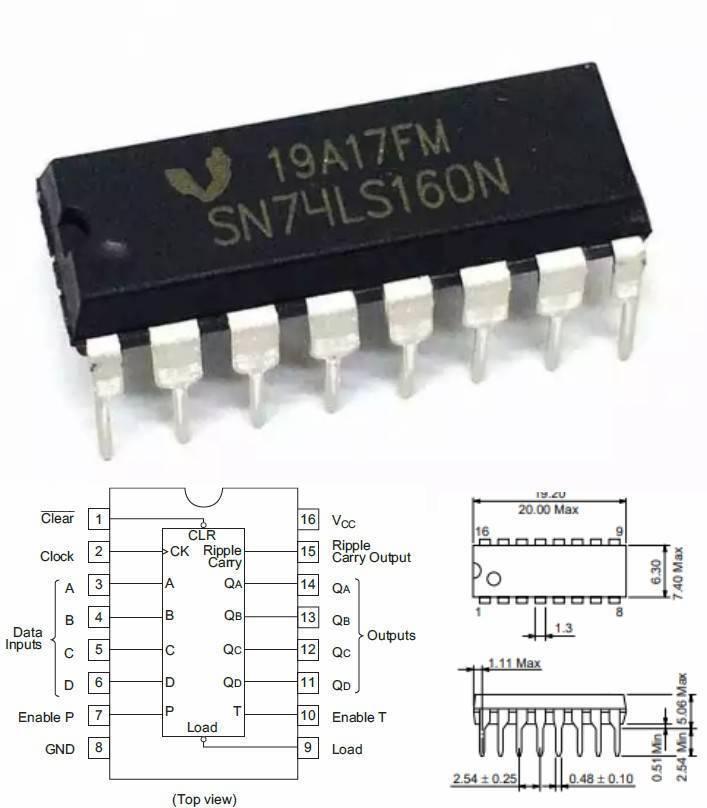

- Package: DIP-16 (Dual In-line Package, 16 pins)
- Clock Input: Edge-triggered (positive edge)
- Clear Function: Asynchronous active-low clear
- Load Function: Synchronous parallel load (active-low)
- Outputs: 4-bit BCD output (Q0-Q3) + Ripple Carry Output (RCO)
- Propagation Delay: Typical 20-30ns (varies by series)
- Operating Temperature: 0°C to +70°C (commercial grade)
- Weight: Approx. 1g
