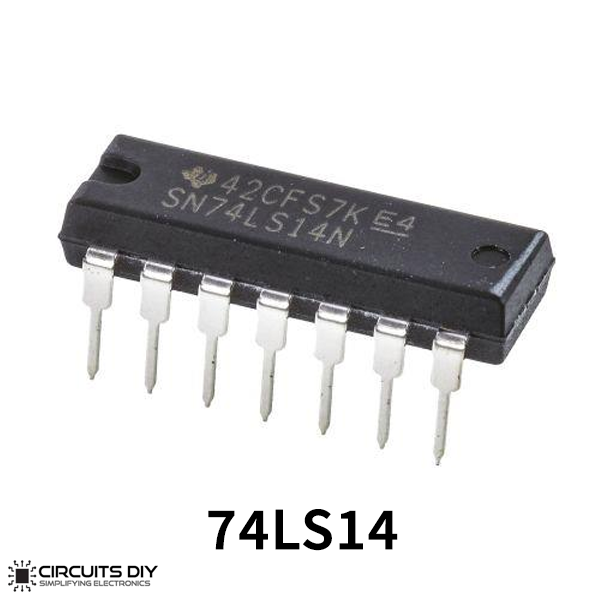

7414 74LS14 Schmitt Trigger Hex Inverter IC
Pickup available at Digilog Electronics
Usually ready in 2 hours
The 74LS14 IC Schmitt Trigger Hex Inverter IC belongs to the 74XXYY IC. 74LS14 uses a single power supply to all the triggers and can be used to operate with any TTL based device. These circuits can be easily operated in any environment and can be triggered easily with the slowest input ramps.
What is a Schmitt Trigger Circuit?
A Schmitt Trigger is a comparator-based circuit that gives the output on the basis of the previous gate output. In a Schmitt Trigger, the input value can be analog or digital but the output will be in two forms 1 or 0. Any circuit is convertible to Schmitt trigger by applying a positive feedback system. In a Schmitt Trigger circuit, the threshold is being used to get output. When the value is higher than the threshold the output will be HIGH otherwise it will be considered in the LOW state. These circuits are not only used to convert analog to digital, but it also helps to remove the noise from the signal.
74LS14 Pinout
74LS14 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | 1A | Input pin for the 1st Schmitt trigger |
| 2 | 1Y | The output pin of the 1st Schmitt trigger |
| 3 | 2A | Input pin of the 2nd Schmitt trigger. |
| 4 | 2Y | The output pin of the 2nd Schmitt trigger. |
| 5 | 3A | Input pin of the 3rd Schmitt trigger |
| 6 | 3Y | The output pin of the 3rd Schmitt trigger |
| 7 | GND | Ground Pin |
| 8 | 4A | Input pin of the 4th Schmitt trigger |
| 9 | 4Y | The output pin of the 4th Schmitt trigger |
| 10 | 5A | Input pin of the 5th Schmitt trigger |
| 11 | 5Y | The output pin of the 5th Schmitt trigger |
| 12 | 6A | Input pin of the 6th Schmitt trigger |
| 13 | 6Y | The output pin of the 6th Schmitt trigger |
| 14 | VCC | Supply Voltage |
74LS14 Key Features & Specifications
- Technology Family: TTL
- Max Supply Voltage: 7V
- Max Input Voltage: 7V
- Min VCC: 4.75V
- VCC (Max): 5.25V
- Storage Temperature Range: -65ºC to +150ºC
- No. of Channels: 6
- Inputs per channel: 1
- IOL (Max): 16mA
- IOH (Max): 0.8mA
- Output type: Push-Pull
- It can be used as a noise impunity device.
- It comes in multiple packages with all 14-Pins, SO, SSOP, SOIP, and PDIP.
Applications
- The IC can be used for Noise Removing.
- It has wide use in Power meter and Power analyzers.
You can download this Datasheet for 74LS14 Hex Inverter Schmitt Trigger from the link given below:
