Description

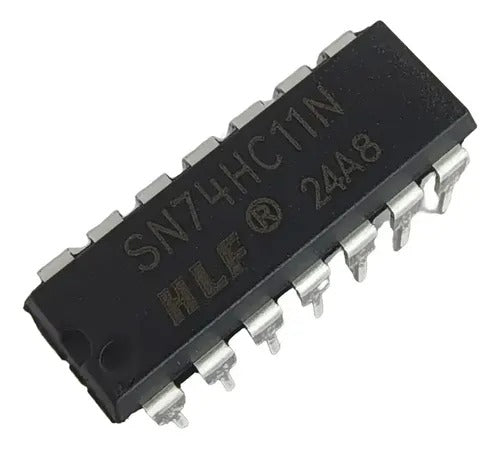

The SN74HC11N is a Triple 3-Input AND Gate IC manufactured by Texas Instruments, housed in a standard 14-pin DIP through-hole package. This device contains three independent 3-input AND gates, with each gate performing the Boolean function Y = A ● B ● C in positive logic — meaning each of the three sections outputs HIGH only when all three of its inputs are HIGH.

Built on high-speed CMOS (HC) logic technology, this chip offers buffered inputs, a wide operating voltage range of 2V to 6V, and a wide operating temperature range of -40°C to +85°C, while supporting fanout up to 10 LSTTL loads — making it flexible enough to interface cleanly with both modern low-voltage logic and legacy TTL-based systems. It delivers fast average propagation delay of around 7ns with strong 24mA drive strength, giving reliable, low-power AND logic performance for demanding digital designs.

With three independent AND gates on a single chip, the SN74HC11N is a compact, efficient building block for combinational logic design — commonly used for multi-input enable conditions, address decoding logic, control circuits, and general Boolean AND functions in digital systems.

Key Specifications

• Function: Triple 3-input AND gate (3 independent gates per chip)
• Logic Family: High-Speed CMOS (HC)
• Package: 14-pin PDIP (through-hole)
• Operating Voltage: 2V to 6V
• Operating Temperature: -40°C to +85°C
• Propagation Delay: ~7ns (typical)
• Drive Strength: ~24mA
• Manufacturer: Texas Instruments (branded HLF on this unit)

Common Applications

• Combinational logic and multi-condition AND functions
• Enable/interlock and control logic circuits
• Address decoding conditions in digital systems
• General-purpose digital logic design
• Educational and hobbyist electronics projects

Package Includes

• 1 x SN74HC11N IC (14-pin DIP)
