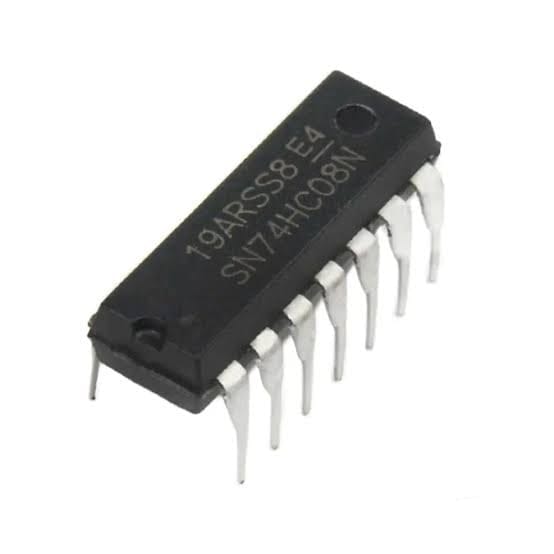

The SN74HC08N (7408) is a digital logic IC that contains four independent 2-input AND gates in a single chip. It is widely used in electronics projects to perform basic logical operations.

⚡ Key Features

• Quad AND Gates:
  Contains 4 separate AND gates (each with 2 inputs and 1 output)
• High-Speed CMOS Technology:
  Faster and more power-efficient than older TTL versions
• Wide Voltage Range:
  Operates from 2V to 6V
• Low Power Consumption:
  Ideal for battery-powered and low-power circuits
• DIP-14 Package:
  Easy to use with breadboards and DIY projects

🔌 How It Works

👉 Each AND gate gives output based on inputs:

✔ Output is HIGH (1) only when both inputs are HIGH

📌 Pin Configuration (DIP-14)

• 4 AND gates inside the IC
• Each gate has:
  • 2 Inputs (A, B)
  • 1 Output (Y)
• Includes VCC (power) and GND

🧰 Applications

• Digital circuits & logic design
• Arduino & microcontroller interfacing
• Signal control systems
• Educational electronics projects

⚠️ Important Notes

• Do not exceed 6V supply voltage
• Use proper grounding to avoid noise
• Compatible with most digital logic systems

💡 Simple Explanation

👉 It’s a logic chip that says “YES” only when both inputs are YES —
otherwise, the output stays OFF.

Package Includes:

• 1x SN74HC08N IC
