Dwin 7 Inch Hmi Lcd Display Touch Screen Resistive Touch Screen Dmg80480c070_03wtr

Dwin 7 Inch Hmi Lcd Display Touch Screen Resistive Touch Screen Dmg80480c070_03wtr

Regular price Rs 9,500
Regular price Rs 10,500 Sale price Rs 9,500
Sale Sold out
Shipping calculated at checkout.

SKU:B219 krt203

NOTIFY ME WHEN IN STOCK

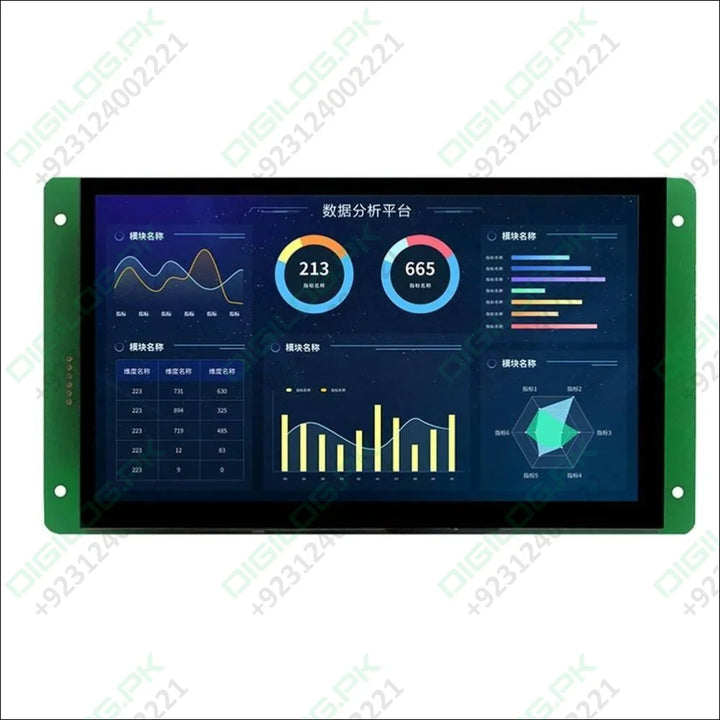

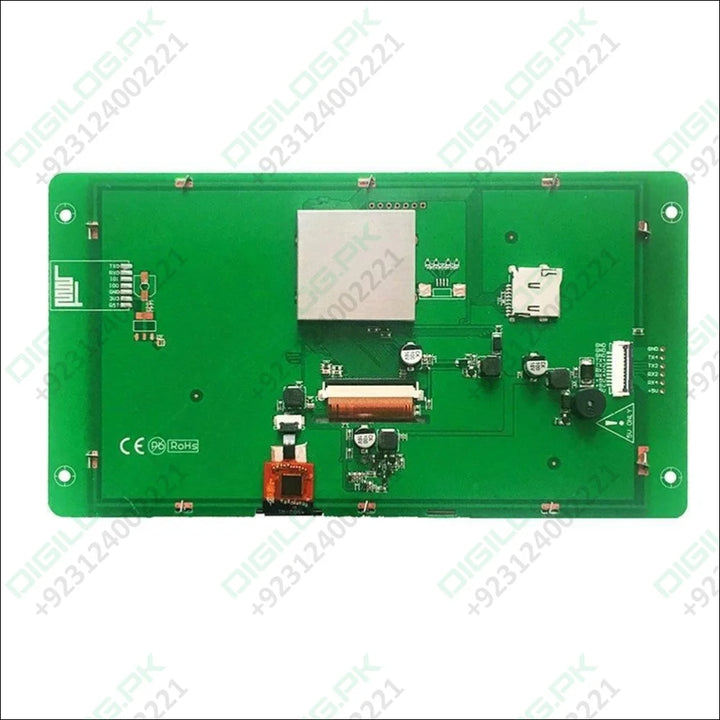

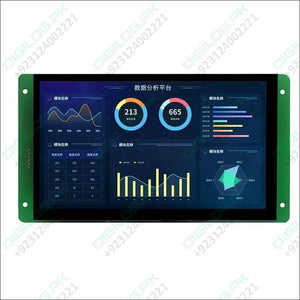

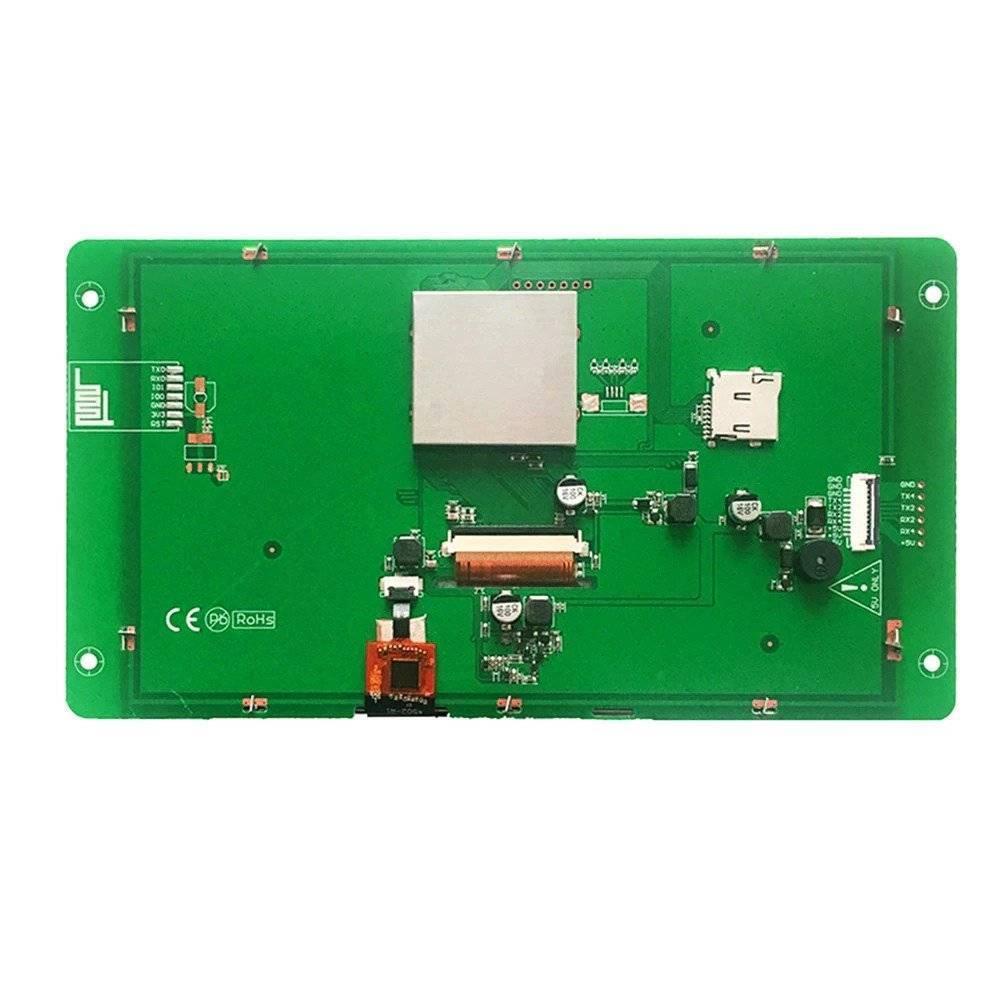

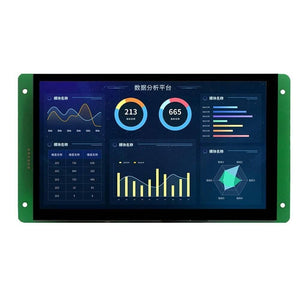

DMG80480C070_03WTR Dwin 7 Inch HMI LCD Display Touch Screen Resistive touch screen

DMG80480C070_03WTC

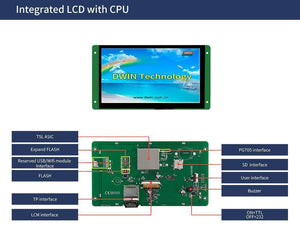

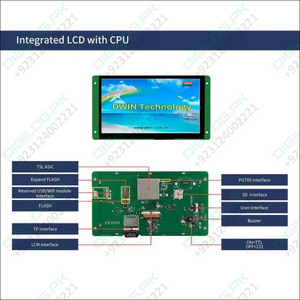

ASIC Information

T5L1 ASIC T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor  Flash on the chip, 512KBytes used to store the user database. Rewrite  cycle: over 100,000 times

Display

Color 16.7M(16777216) colors
LCD Type TN, TFT LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)
Display Area(A.A) 154.1mm (W) ×85.9mm (H)
Resolution 800x480Pixel
Backlight LED
Brightness DMG80480C070_03WTR:250nit
DMG80480C070_03WN:300nit
DMG80480C070_03WTC: 270nit

Voltage & Current

Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC = +5V, Backlight on,500mA
VCC = +5V, Backlight off,150mA

Reliability Test

Working Temperature 20℃~70℃ (5V @ 60% RH)
Storage Temperature -30~80℃
Working Humidity 10%~90%RH, typical value of 60% RH

Interface

LCM interface FPC50_0.5mm, RGB interface
RTP interface FPC4_1.0mm
CTP interface COB structure, IIC interface
Baudrate 3150~3225600bps, typical value of 115200bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3V
Output 0, Iout =-1mA;0~0.3V
Input Voltage
(RXD)
Input 1, Iin = 1mA, 2.4~5.0V
Input 0, Iin = -1mA, 0~0.5V
User Interface 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Peripheral

DMG80480C070_03WN  Buzzer
DMG80480C070_03WTR   Resistive touch screen, Buzzer
DMG80480C070_03WTC  Capacitance touch screen, Buzzer, RTC(Not welded)



Package Include:

1 x 7 Inch LCD Display Touchscreen DMG80480C070_03WTR Resistive touch screen

Data sheet

View full details
