7.0 Inch Fsk Bus Camera Scheme Screen Model DMG10600T070_26WTC Industrial Grade
The 7.0 inch FSK bus camera scheme screen model DMG10600T070_26WTC Industrial Grade is a high-quality, durable display unit designed for use in industrial environments.
With a screen size of 7.0 inches, it offers ample viewing space to display important information, making it ideal for use in vehicles, factories, and other industrial settings. The screen uses FSK bus camera scheme technology, which allows for easy integration with other industrial equipment and systems.
The model is built to withstand harsh conditions, with an industrial-grade design that includes features like high shock resistance and a wide operating temperature range. This makes it well-suited for use in demanding applications where reliability and durability are key factors.
Overall, the DMG10600T070_26WTC is a versatile and reliable display unit that offers excellent performance in a wide range of industrial settings.
Features:
● Based on T5L2, running DGUS II system, industrial grade.

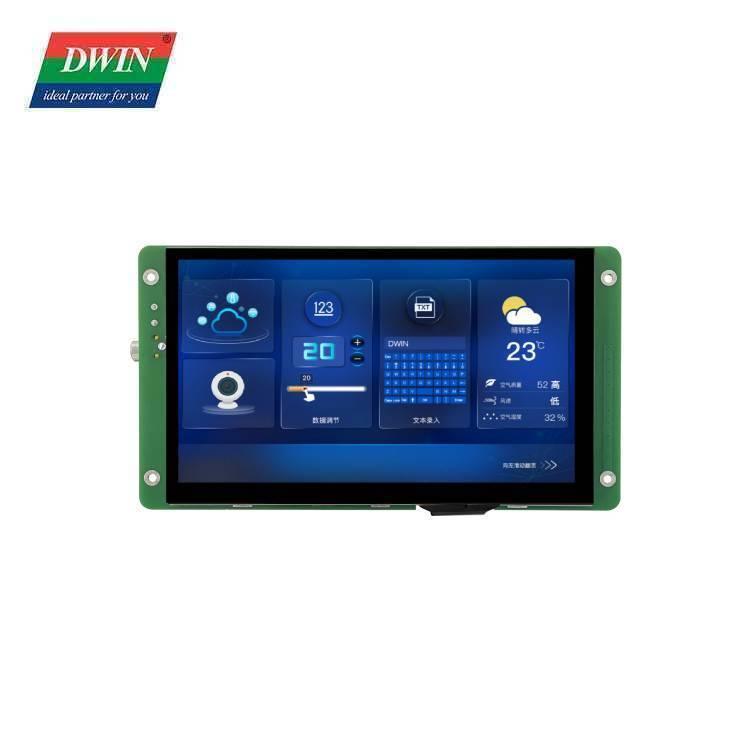

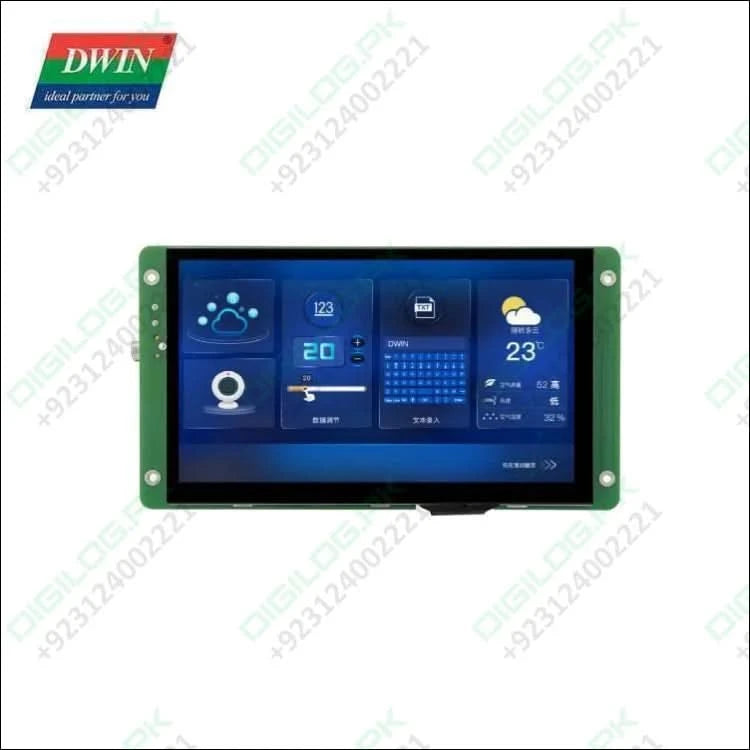

● 7.0-inch, 1024*600 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
● Video play,Music play are supported
● FSK camera interface: RCA-AV socket or 2Pin_5.08mm socket
● Support Speaker, Music play, USB camera, Video play,Buzzer
Specification
ASIC
| T5L2 ASIC | Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display Parameters
| Color | 16.7M colors |
| LCD Type | IPS-TFT-LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85°（L/R/U/D） |
| Display Area（A.A） | 154.08mm (W)×85.92mm (H) |
| Resolution | 1024*600 |
| Backlight | LED |
| Brightness | DMG10600T070_26WTC: 250nit DMG10600T070_26WTR: 250nit DMG10600T070_26WN: 300nit |
Touch Parameters
| Type | CTP (Capacitive touch panel) |
| Stucture | G+G structure with surface cover of tempered glass |
| Touch Mode | Support point touch and drag |
| Sureface Hardness | 6H |
| Light Transmittance | Over 90% |
| Lift | Over 1,000,000 times touch |
| Type | RTP (Resistive touch panel) |
| Stucture | ITO film + ITO glass |
| Touch Mode | Support point touch and drag |
| Sureface Hardness | 3H |
| Light Transmittance | Over 80% |
| Lift | Over 1,000,000 times touch |
Voltage & Current
| Power Voltage | 6~36V |
| Operation Current | VCC = +12V, Backlight on: 260mA (No camera) |
| VCC = +12V, Backlight off: 110mA |
Reliability Test
| Working Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Working Humidity | 10%~90%RH |
| Conformal coating | Yes |

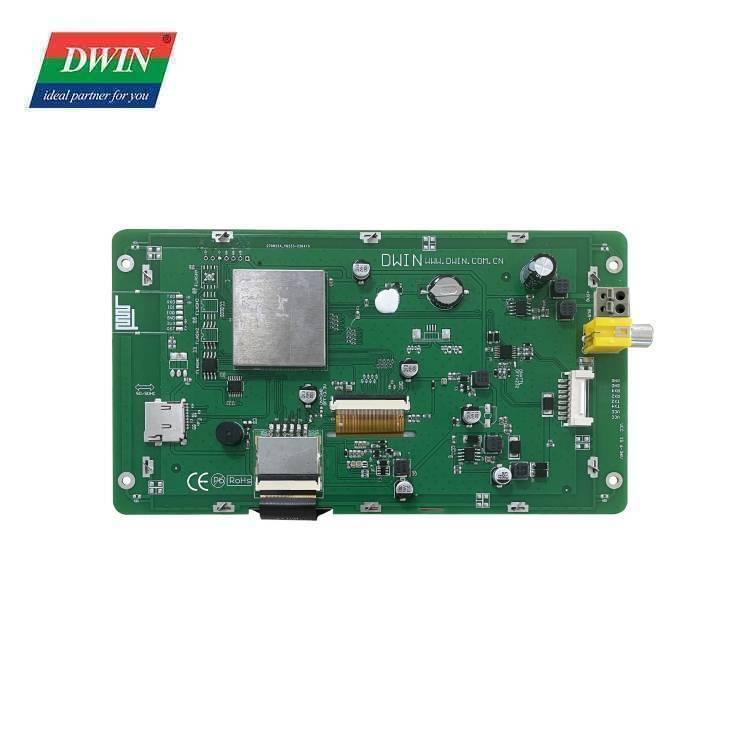

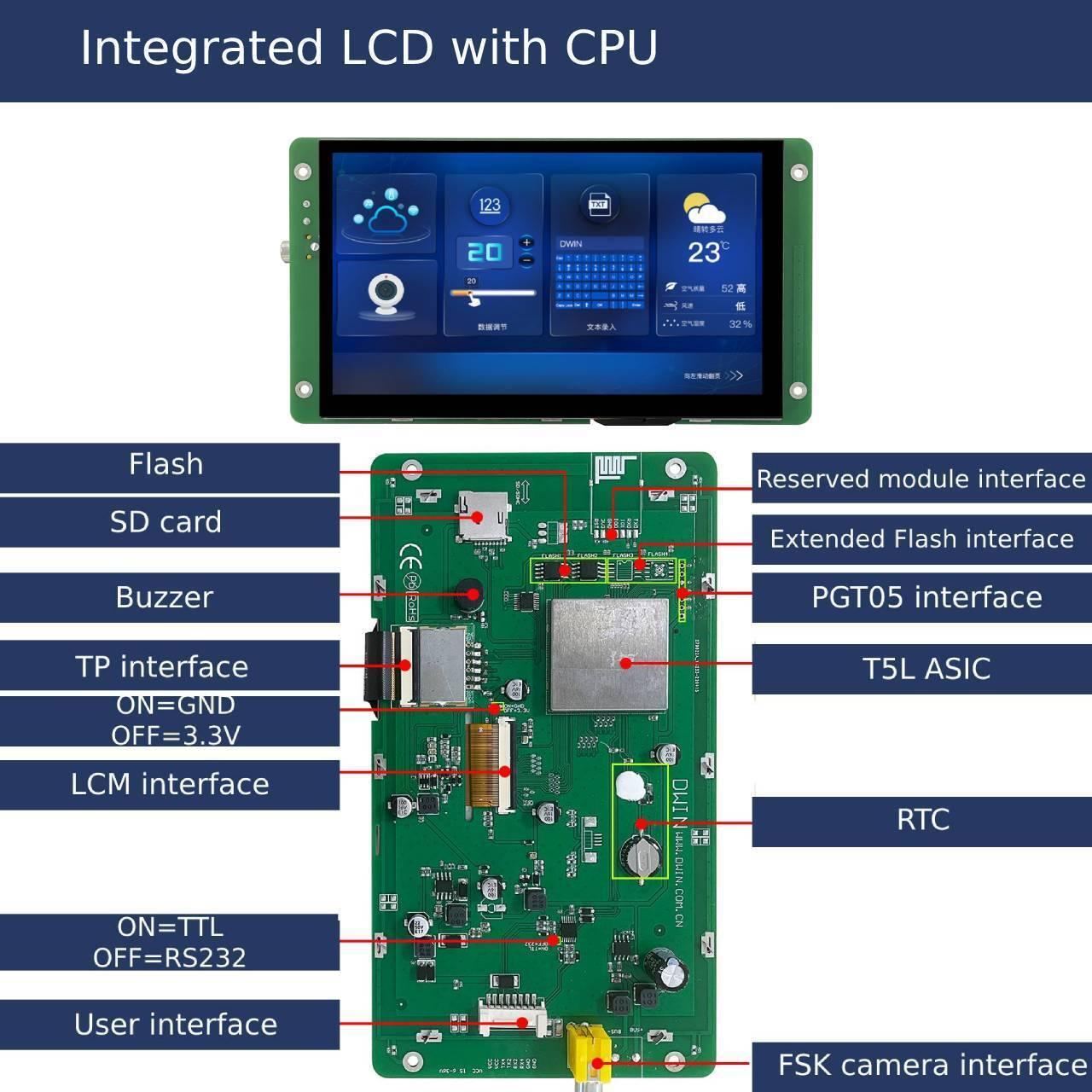

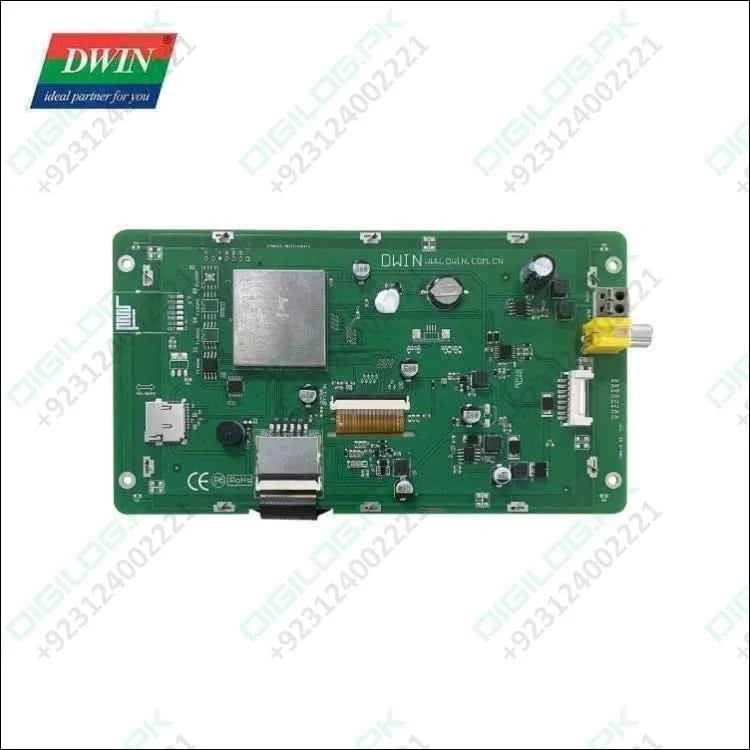

Interface
| LCM interface | FPC50_0.5mm, RGB interface |
| Baudrate | 3150~3225600bps, typical value of 115200bps |
| Output Voltage | Output 1, Iout = -4mA; 2.7~-3.2 V |
| Output 0, Iout =-4mA; 0.1~0.4 V | |
| Input Voltage （RXD） |
Input 1, 2.4~5.5V |
| Input 0, 0~1.0V | |
| Interface | UART2：ON=TTL/CMOS; OFF=RS232 UART4：ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)) |
| User interface | 8Pin_2.0mm |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| Reserved module interface |
Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk |
| FSK camera interface | RCA-AV socket or 2Pin_5.08mm socket |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Peripheral
| DMG10600T070_26WTC | Capacitive touch panel, FSK camera interface, RTC |
| DMG10600T070_26WTR | Resistive touch panel, FSK camera interface, RTC |
| DMG10600T070_26WN | No touch screen, FSK camera interface, RTC |
Package Include:
1 x 7.0 Inch DMG10600T070_26WTC Industrial Grade Capacitive Touch LCD
