Description
Features:
● Capable for Google Play Services

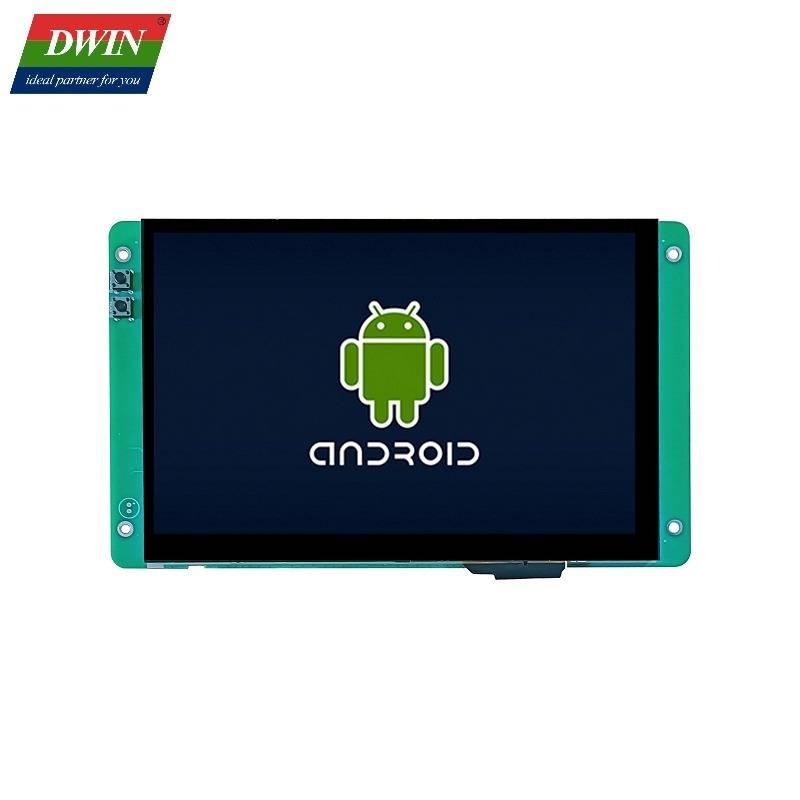

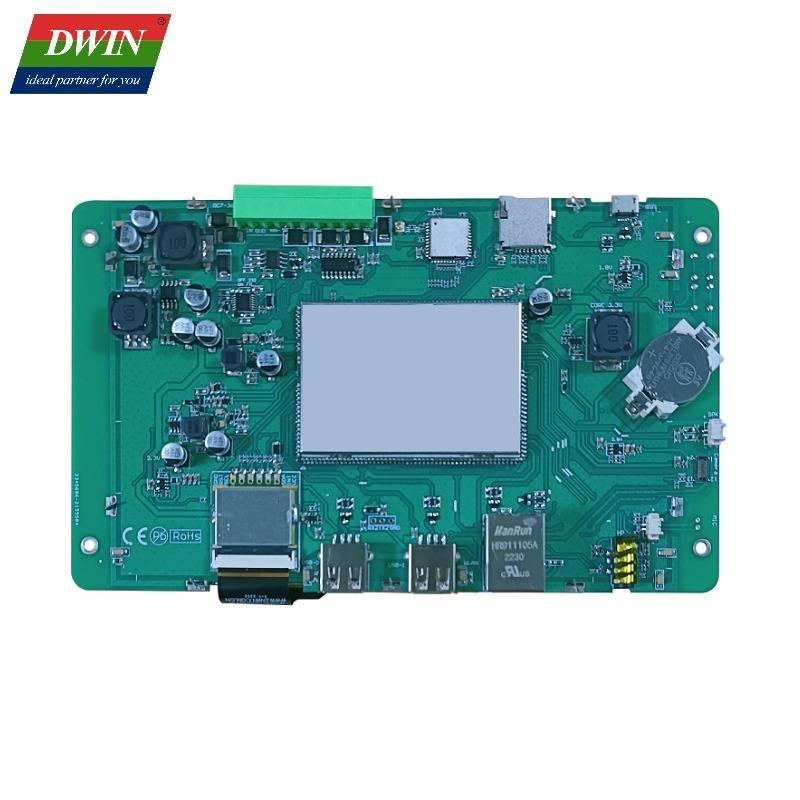

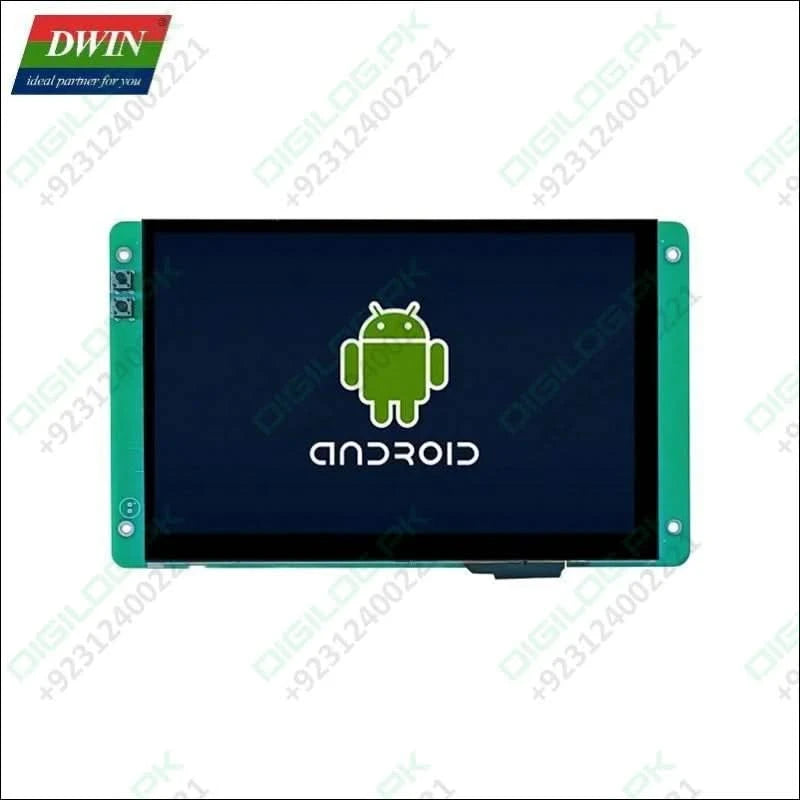

● Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.
● 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, CTP.
● Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals.
● Available for USB and SD card updates.
● Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet , browsing, music and video playback, data copy, etc.
● Available for RS232 and RS485 port to connect and communicate with external devices.
Specification

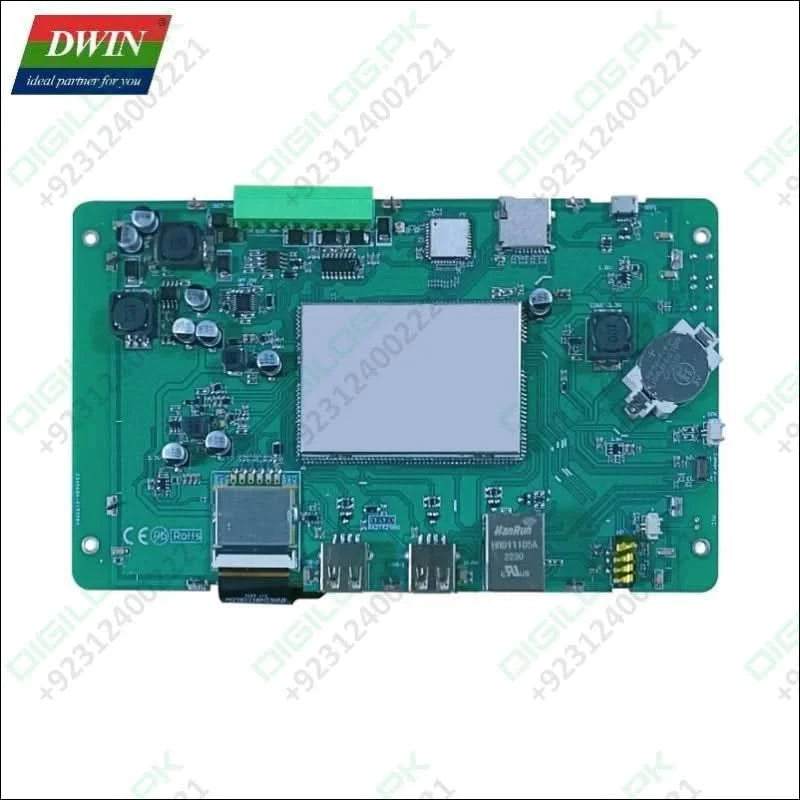

Master Control Parameters
| Motherboard Level | Industrial |
| CPU | RK3566, Cortex-A55, quad-core |
| OS | Android 11 |
| FLASH | 8Gbytes EMMC |
| RAM | 2Gbytes LPDDR4 |
Display Parameters
| Color | 16.7M(16777216)colors |
| Panel Type | IPS |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Active Area (A.A.) | 149.76mm (W)*93.60mm (H) |
| Visible Area (V.A.) | 150.76mm (W)*94.60mm (H) |
| Resolution | 1280*800 Pixel |
| Backlight | LED,≥20000H |
| Brightness | 250nit |
Voltage & Current
| Power Voltage | 7~36V, Typical:12V |
| Operation Current | VCC = +12V, Backlight on, 310mA |
| VCC = +12V, Backlight off, 140mA | |
| Recommended power supply: 12V 0.5A DC | |
Reliability Test
| Working Temperature | -20~70℃, 60%RH at 12V voltage |
| Storage Temperature | -30~80℃ |
| Working Humidity | 10%~90%RH |
| Protective Paint | Yes |
| ESD | Air discharge±8KV; Contact discharge±6KV |
| EFT | Group pulse interference ±2KV |
Peripheral Interface
| COM | 2-way RS232 |
| 1-way RS485 | |
| 1-way TTL/COMS | |
| USB Interface | HOST*2, OTG*1 |
| Headphone Interface | 3.5mm spacing interface |
| Speaker Interface | 2Pin_1.25mm interface |
| Microphone Interface | 2Pin_1.25mm interface |
| Camera Interface | USB, Not supported by Mipi |
| SD Card Slot | Drawer type card slot(Max 64G) |
| Ethernet Interface | 10/100Mbps |
| WIFI module | WIFI_ITM-WIFI-SD41，Bluetooth |
| RTC | Button cell for power supply. Accuracy: ±20ppm @25℃ |
Interface Parameters
| Baud Rate | 2400~230440bps, Typical value: 115200bps |
| Output Voltage (TXD) |
Output 1: -5V (Typ.) |
| Output 0: 5V (Typ.) | |
| Input Voltage (RXD) |
Input 1: -5V (Typ.) |
| Input 0: 5V (Typ.) | |
| Baud Rate | 2400~921600bps, typical value: 115200bps |
| (V_AB) | Output 1: 5V(Typ.); 2.5V(Min.) |
| Output 0 : -5V (Typ.); -2.5V(Max.) | |
| (V_AB) | Input 1: 2.5V (Typ.); 0V(Min.) |
| Input 0: -2.5V (Typ.); -0.2V(Max.) | |
| Interface | Support TTL/COMS,RS232 or RS485 level |
| Socket | 10Pin_3.81mm Socket |
