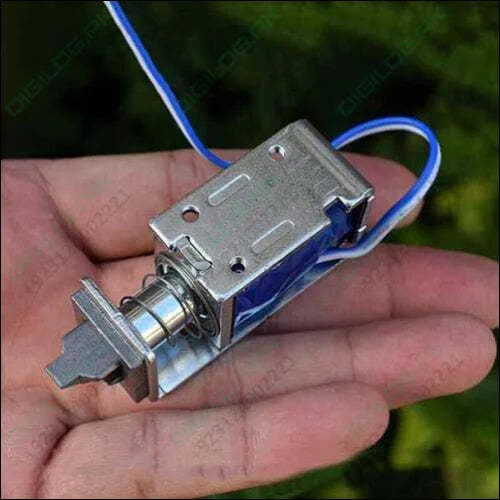

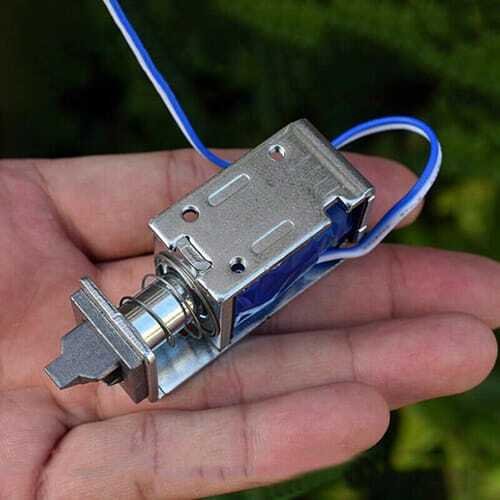

5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metallic frame, a blue coil, a spring-loaded plunger, and two blue and white electrical wires.

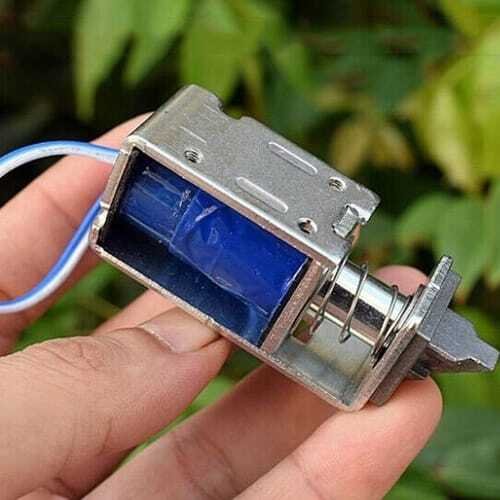

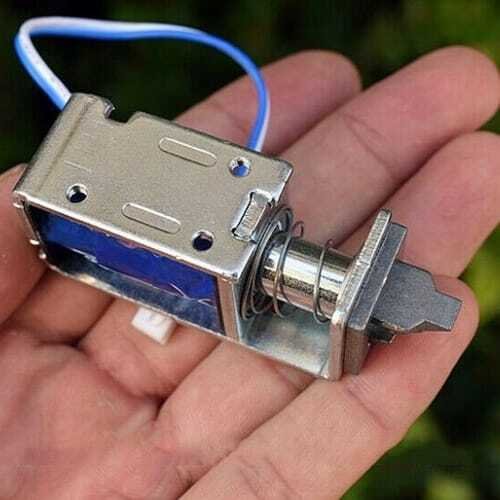

5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metallic rectangular body, a spring-loaded plunger, and blue and white wires.

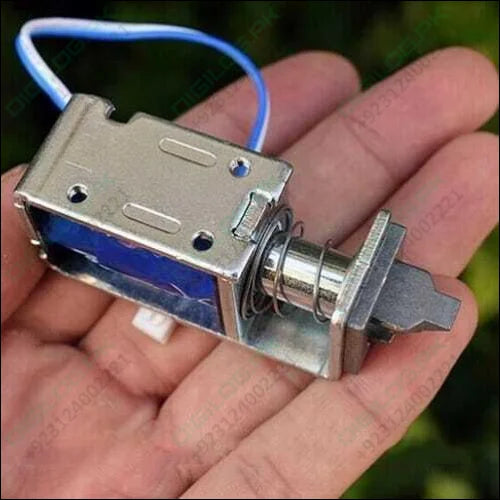

5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metal frame, a spring-loaded plunger, and a blue and white wire connector.
5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metallic frame, a blue coil, a spring-loaded plunger, and two blue and white electrical wires.
5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metallic rectangular body, a spring-loaded plunger, and blue and white wires.
5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metal frame, a spring-loaded plunger, and a blue and white wire connector.

5V-7.4V DC Mini Electromagnet Solenoid Door Lock

Sale price Rs 960
SKU: B324,L5,Th2
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metallic frame, a blue coil, a spring-loaded plunger, and two blue and white electrical wires.

5V-7.4V DC Mini Electromagnet Solenoid Door Lock

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
5V-7.4V DC Mini Electromagnet Solenoid Door Lock - a metallic frame, a blue coil, a spring-loaded plunger, and two blue and white electrical wires.
5V-7.4V DC Mini Electromagnet Solenoid Door Lock
Sale priceRs 960

Normal open type when power is given it pulls in and about 6mm and automatically resets open when the power is off, the whole electromagnet is very thick in workmanship and feels very solid and reliable, it should be used in the door. Above the electromagnetic lock.

Specifications:

  1. Cable length: about 130 mm
  2. Weight: 111 grams
  3. Voltage: DC 5V
  4. Current: 1.4 A
  5. Voltage: DC7.4V
  6. Current: 1.85 A
  7. Voltage: DC12V (only suitable for short-term power-on)
  8. Current: 2.9 A (prone to heat)

Package Includes:

  • 1 x 5V DC Mini Electromagnet Solenoid Door Lock
