Description

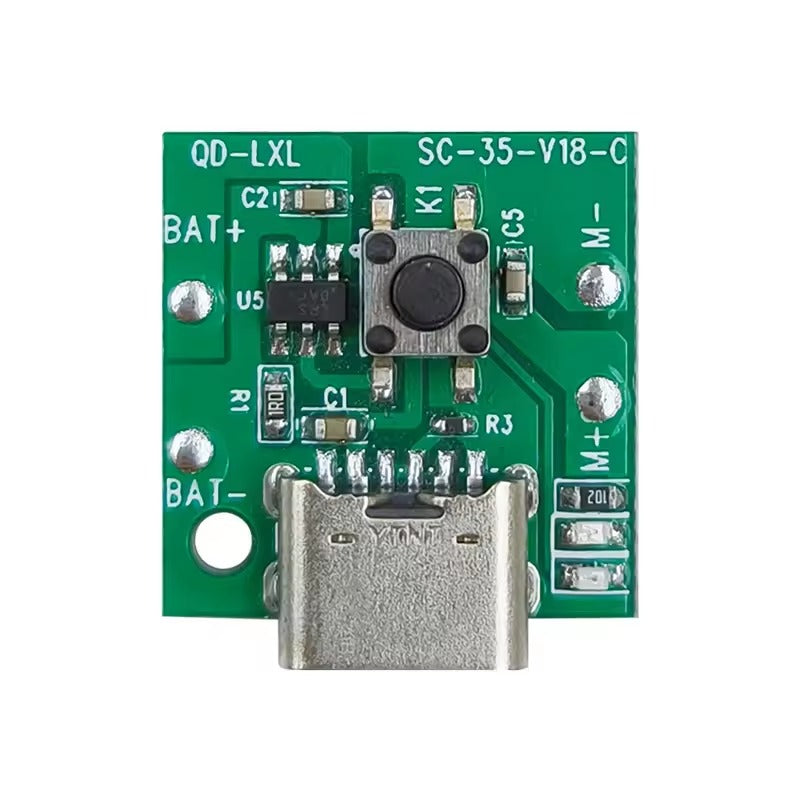

This is a compact 5V 1A USB Type-C lithium battery charging module, designed for charging and powering single-cell 18650 (or similar) Li-ion/LiPo batteries in small DIY electronics and handheld device builds. It combines a battery charging circuit with a one-button power switch and motor output terminals, making it a convenient all-in-one board for battery-powered projects.

The module accepts a standard USB Type-C 5V input and charges the connected battery at up to 1A, with dedicated BAT+ / BAT- pads for simple battery wiring. A built-in tactile push button (K1) serves as the power on/off switch, controlling output to the onboard M+ / M- terminals — ideal for directly driving a small DC motor or load from the battery with one-touch control.

Its compact size and integrated charge-and-switch functionality make it a practical choice for mini fans, handheld gadgets, flashlights, and other small motorized or battery-powered DIY builds where you want charging and power control combined on a single small board.

Key Features

• Input: USB Type-C, 5V
• Charge Current: 1A
• Battery Type: Single-cell 18650 / Li-ion / LiPo
• Built-in push-button (K1) power switch
• Dedicated BAT+/BAT- battery terminals
• Dedicated M+/M- output terminals for motor/load
• Compact PCB footprint for easy integration into small enclosures

Common Applications

• 18650 battery-powered DIY projects
• Mini handheld fans and personal gadgets
• Flashlights and portable lighting builds
• Small motorized devices needing simple charge + power switch control
• Replacement/repair board for similar small electronics

Package Includes

• 1 x 5V 1A Type-C 18650 Charging Module (SC-35-V18-C)
