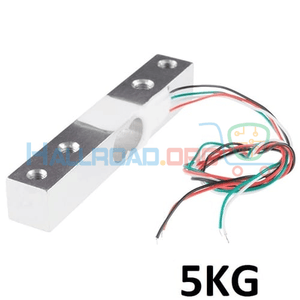

5kg Range Aluminum Weighing Sensor Load Cell Sensor Yzc-133
5kg Range Aluminum Weighing Sensor Load Cell Sensor Yzc-133
The YZC-133 5kg Load Cell Sensor is a versatile and essential component for precise weight measurement in your projects. This high-performance sensor offers accurate and reliable readings, making it ideal for various applications.
Key Features:
- 5kg Capacity: Measures weights up to 5 kilograms.
- High Accuracy: Delivers precise and reliable measurements.
- Durable Construction: Built to last with high-quality materials.
- Versatile Applications: Suitable for weighing scales, industrial automation, and more.

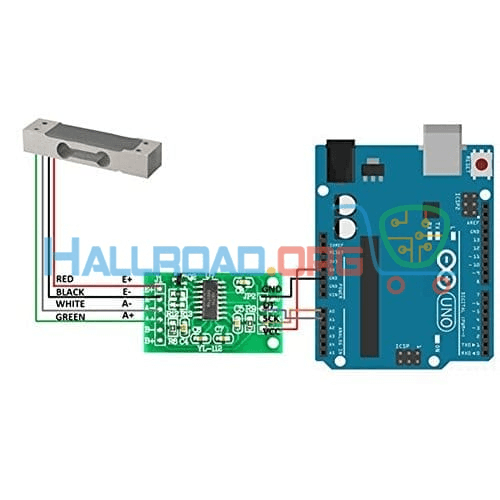

- Easy Integration: Simple to connect to your microcontroller or other devices.
Specifications:
- Capacity: 5kg
- Rated Output: 1.0 Β± 0.15mV/V
- Nonlinearity: 0.03% F.S
- Hysteresis: 0.03% F.S
- Repeatability: 0.03% F.S
- Creep: 0.05% F.S
- Temperature Effect on Output: 0.003% F.S / Β°C
- Temperature Effect on Zero: 0.02% F.S / Β°C
- Input Impedance: 1066 Β± 20%
- Output Impedance: 1000 Β± 10%
- Insulation Resistance: 2000 MΞ©
- Operating Temperature: -20Β°C to 65Β°C
Order Now:
Upgrade your projects with our YZC-133 5kg Load Cell Sensor:. Experience the accuracy, reliability, and versatility of this essential component.
