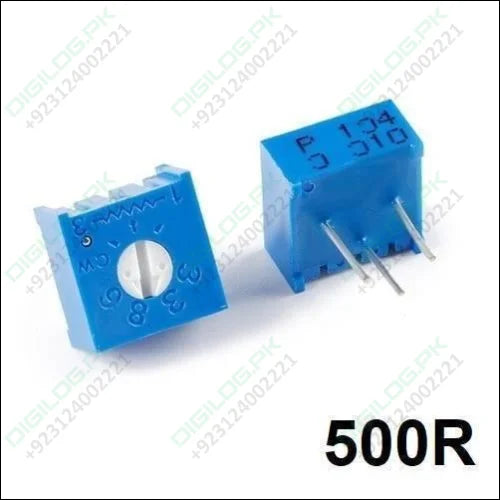

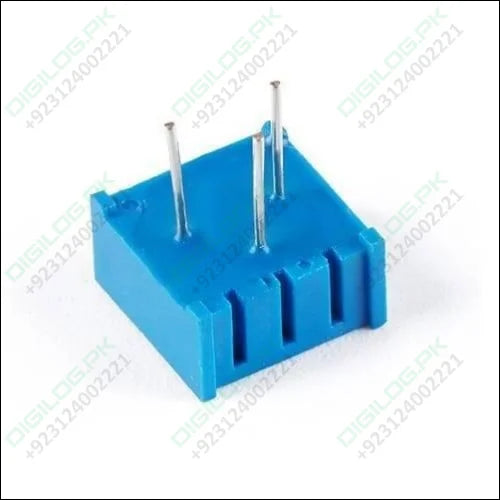

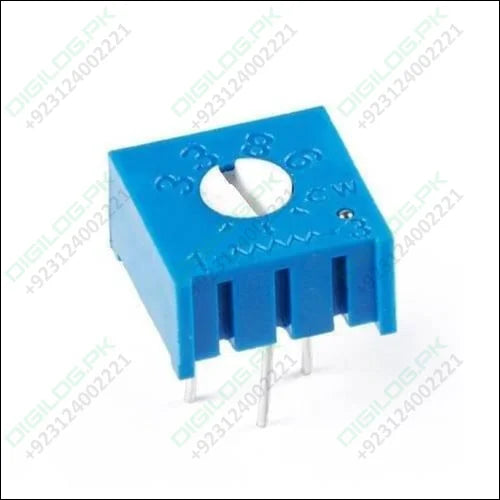

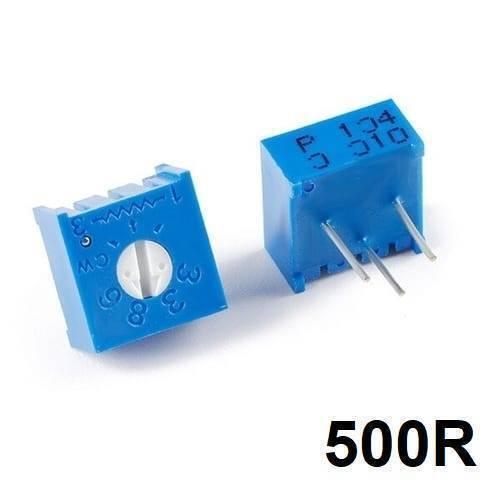

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Features And Specifications Of 500R Variable Resistor 3386 Single Turn Trimmer Potentiometer:

• Trimmer is a high accuracy variable resistor and PCB mountable with 3 terminal pins.
• The voltage between the terminal varies as the trimpot is rotated.
•  Resistance: 500R
• Resistance Tolerance: ± 5%
• Temperature Coefficient: ± 50 ppm/°C
• Potentiometer Mounting: Through Hole
• Adjustment Type: Top
• Contact Resistance Variation +: 1%
• Full Power Rating Temperature: 85°C
• Lead Diameter: 0.5mm
• Operating Temperature Range: -55°C to +125°C
• Resistor Element Material: Variable Rotary Trimmer

Package Include:

• 1 x 500R Potentiometer Trimmer
