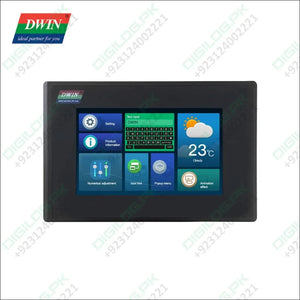

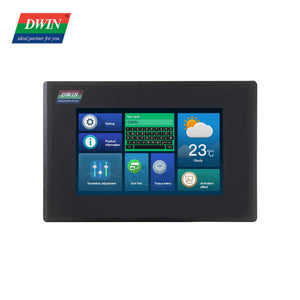

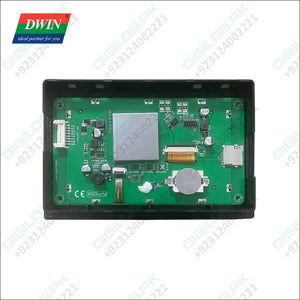

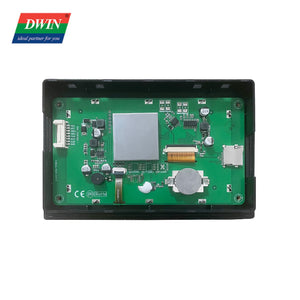

5 Inch With Enclosure HMI Display DMG80480C050_15WTR commercial Grade
Features:
● 800*480 resolution, 262K colors, TN-TFT-LCD;
● Resistive touch screen;
● RS232 and RS485 Interface, 8Pin2.0mm Socket connection wire;
● Download via SD card or on-line serial port;
● 16MBytes NOR Flash, for fonts, pictures and audio files;
● Brightness is up to 200nit;
● Nomal View Angle: 70/70/50/70 (L/R/U/D) ;
Datasheet:
ASIC Information
T5L0 ASIC |
Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display
Color |
18-bit 6R6G6B |
LCD Type |
TN, TFT LCD |
Viewing Angle |
Normal viewing angle, 70°/70°/50°/70° (L/R/U/D) |
Display Area(A.A) |
109.0mm (W)×65.8mm (H) |
Resolution |
800×480 pixels (support 0°/90°/180°/270°) |
Backlight |
LED |
Brightness |
DMG80480C050_15WTR:200nit |
Touch Parameters
Type |
RTP (Resistive touch panel) |
Structure |
ITO film + ITO glass |
Touch Mode |
Single point touch, support continuous sliding touch |
Surface Hardness |
3H |
Light Transmittance |
Over 80% |
Life |
Over 1,000,000 times touch |
Voltage & Current
Power Voltage |
6~36V, typical value of 12V |
Operation Current |
VCC=12V, max backlight,170mA |
VCC=12V, backlight off,80mA |
Reliability Test
Working Temperature |
-20℃~70℃ (12V @ 60% RH) |
Storage Temperature |
-30~80℃ |
Working Humidity |
10%~90%RH, typical value of 60% RH |
Interface
LCM interface |
FPC40_0.5mm, RGB interface |
RTP interface |
4Pin_1.0mm interface |
Baudrate |
3150~3225600bps, typical value of 115200bps |
UART Mode |
UART2: RS232 UART4: RS485(Only available after OS configuration)
|
Flash |
16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
Buzzer |
3V passive buzzer. Power: <1W |
RTC |
Button cell for power supply. Accuracy: ±20ppm @25℃ |
SD card interface |
Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |

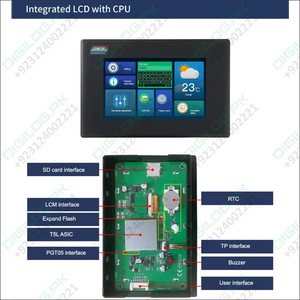

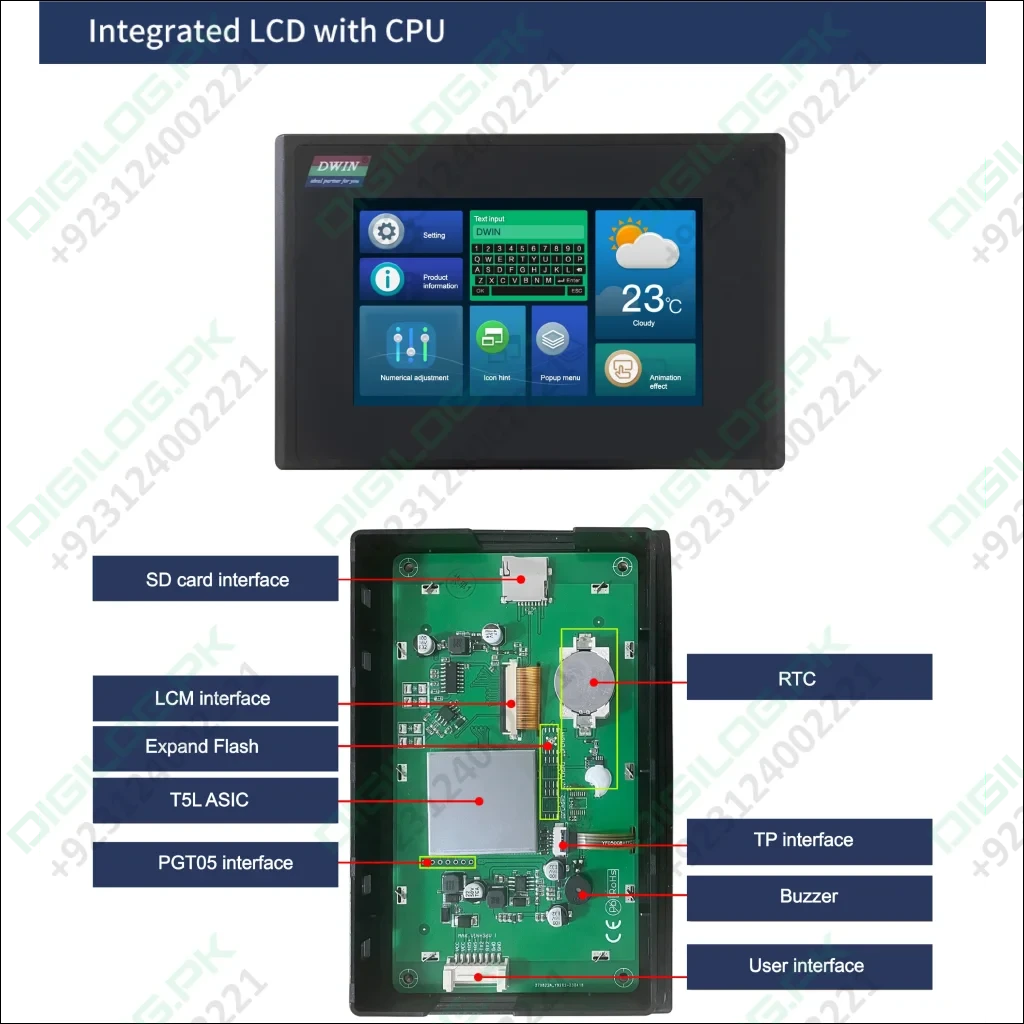

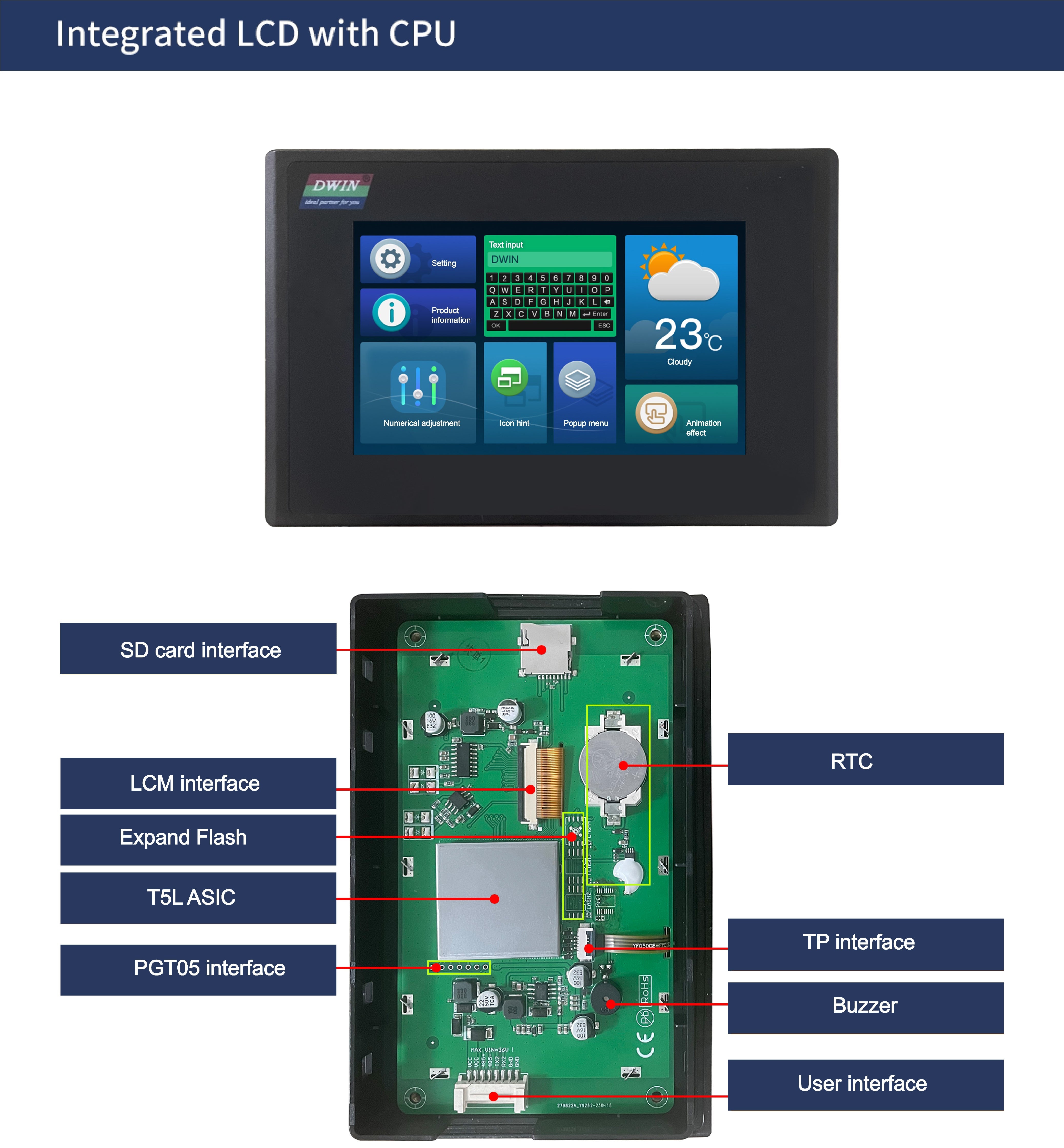

PGT05 interface |
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Peripheral
DMG80480C050_15WTR |
Resistive touch panel, Buzzer,RTC |
