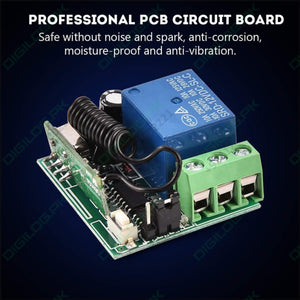

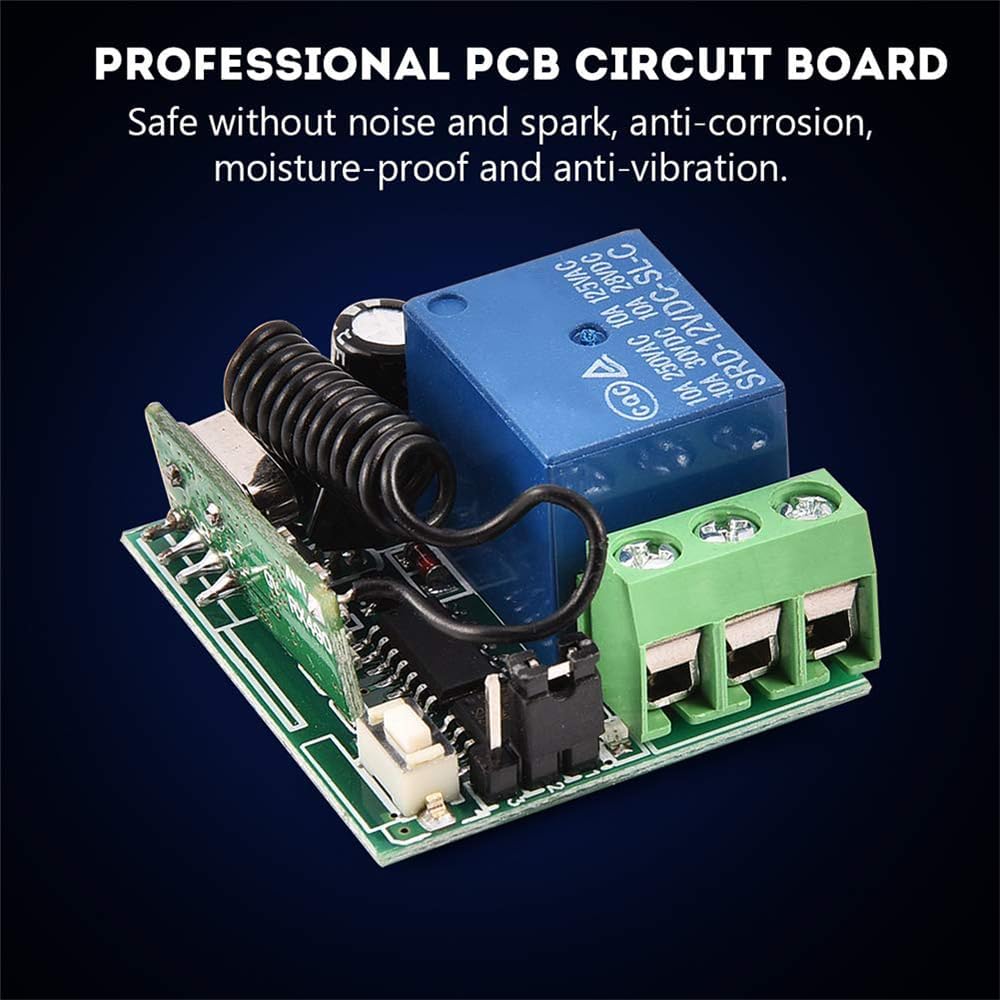

1 Channel Wireless Smart Remote Control Relay Switch 12V DC 10A 433MHZ Transmitter And Receiver Set

Features:

• Three output modes for the choice.
• Safe and flexible to operate and install.
• Wide use in the house, shopping center, electric motor, cars, motorcycle anti-theft alarm system or other control systems.
• Specified as preferred components in the remote control garage, roller blind, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry.
• Output Operation: Jog / Unlocked, press a button, works / loosens and release your finger on the same button is stop / off. (A channel change needs a key on the remote control)
• Auto lock: Press a button for a time works / up and press the same button is stop / off. (A channel change needs a button on the remote control)
• Interlock / locked: Press one button works / up and another button press / off stop. (A channel change requires 2 buttons on the remote control)

Learning and procedures for removing:

Learning method:

Press the learning code for 3 seconds. The indicator will then flash, and then loosen the finger, press any key to transmit the remote signal, the indicator will flash 3 times and then usually that means you will learn it successfully.

Remove / clean method:

The learn button will press approximately 8 seconds, the display will be from being away all the time, it means to keep the information you have successfully removed

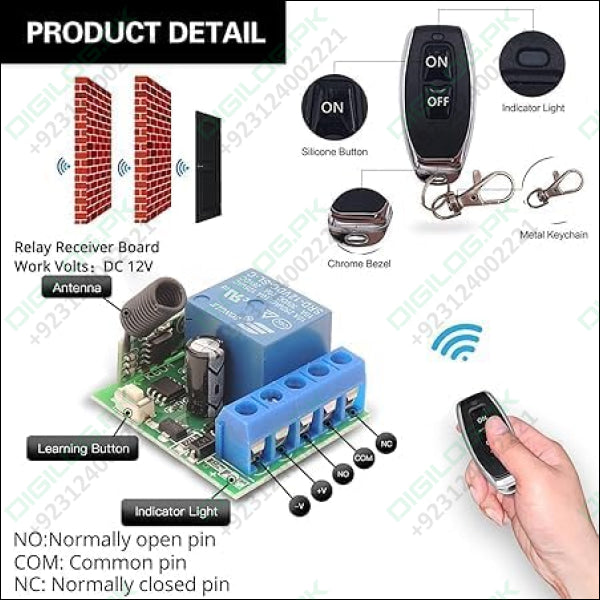

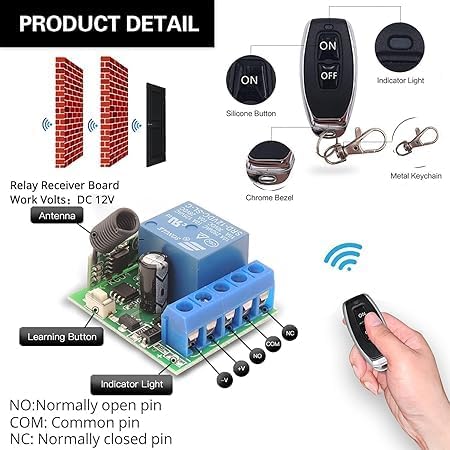

Wiring diagram:

+V : 12V + input ;
– V: 12V – input ;
NO: Output , normal open;
COM: Output , common ;
NC: Output , normal close.
