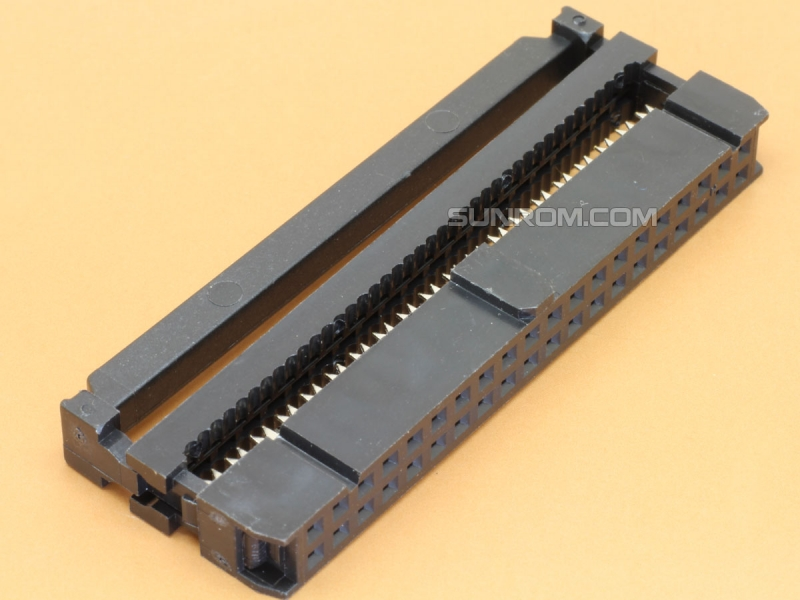

40 Pin Female IDC Connector
Pickup available at Digilog Electronics
Usually ready in 2 hours
40 Pin Female IDC Connector
40 Pin Female IDC Connector
The 40 Pin Female IDC (Insulation Displacement Connector) is a reliable and widely used connector for flat ribbon cables. Designed for easy termination without stripping wires, it is ideal for data transmission in embedded systems, development boards, and DIY electronics projects.
Key Features
- 40-pin dual-row female IDC connector
- Compatible with standard 2.54mm (0.1") pitch flat ribbon cables
- Insulation displacement contact — no wire stripping required
- Secure locking mechanism for reliable connection
- Durable black thermoplastic housing
- Suitable for high-density PCB and cable applications
Specifications
| Number of Pins | 40 (2 rows × 20 pins) |
| Pitch | 2.54mm (0.1 inch) |
| Connector Type | Female IDC (Insulation Displacement) |
| Cable Compatibility | 40-wire flat ribbon cable |
| Housing Material | Black Thermoplastic (PBT/Nylon) |
| Contact Material | Phosphor Bronze / Tin-plated |
| Current Rating | 1A per contact |
| Voltage Rating | 250V AC |
| Operating Temperature | -25°C to +85°C |
| Mounting Type | Cable Mount |
Common Applications
- IDE hard drive and optical drive interfaces
- Microcontroller and development board connections
- Parallel data bus wiring
- DIY electronics and prototyping projects
- Embedded systems and industrial control panels
Similar Products

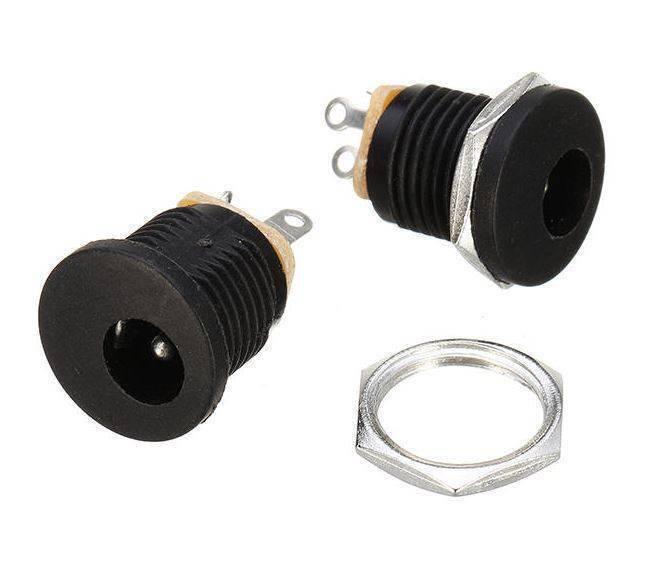

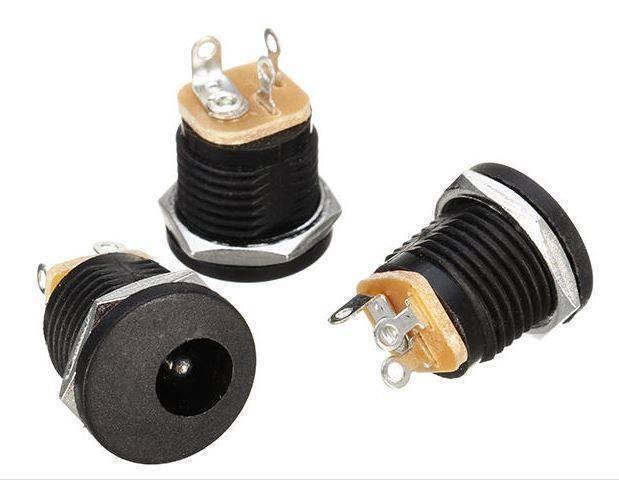

DC-022 DC Power Jack PCB Mount Female Connector 3 Pin With Nut 5.5mm x 2.1mm

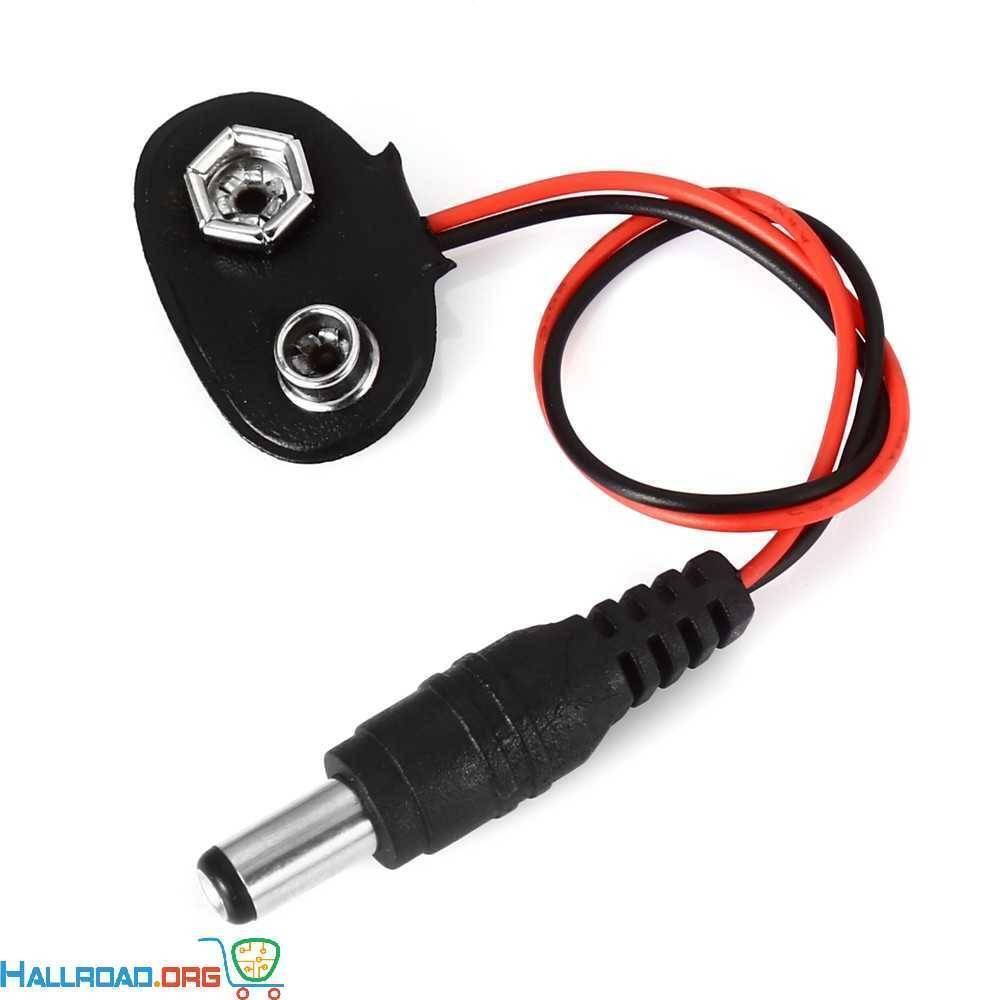

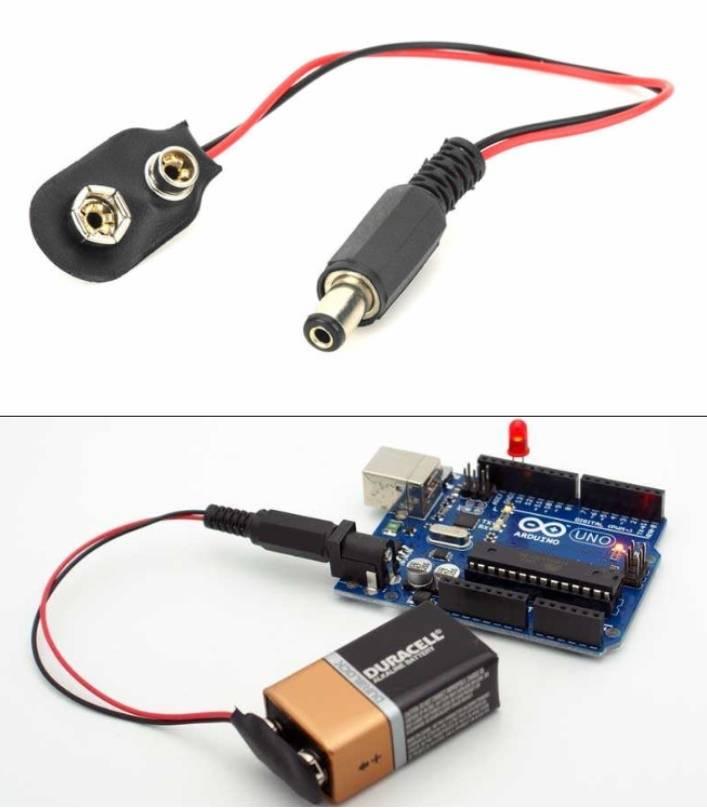

9V Battery Snap Connector To DC Male Power Adapter Cable For Arduino
