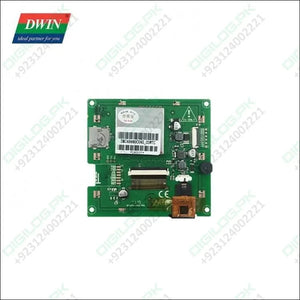

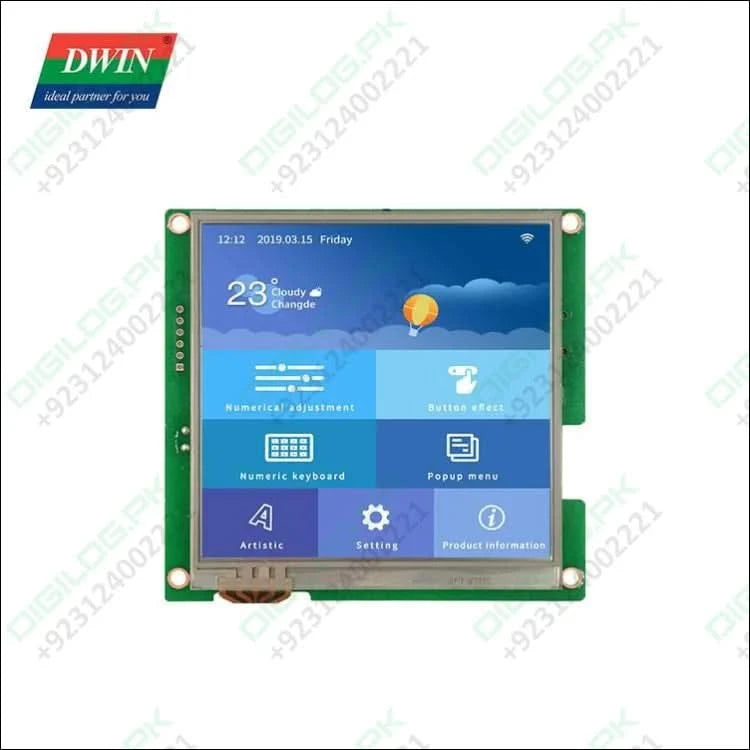

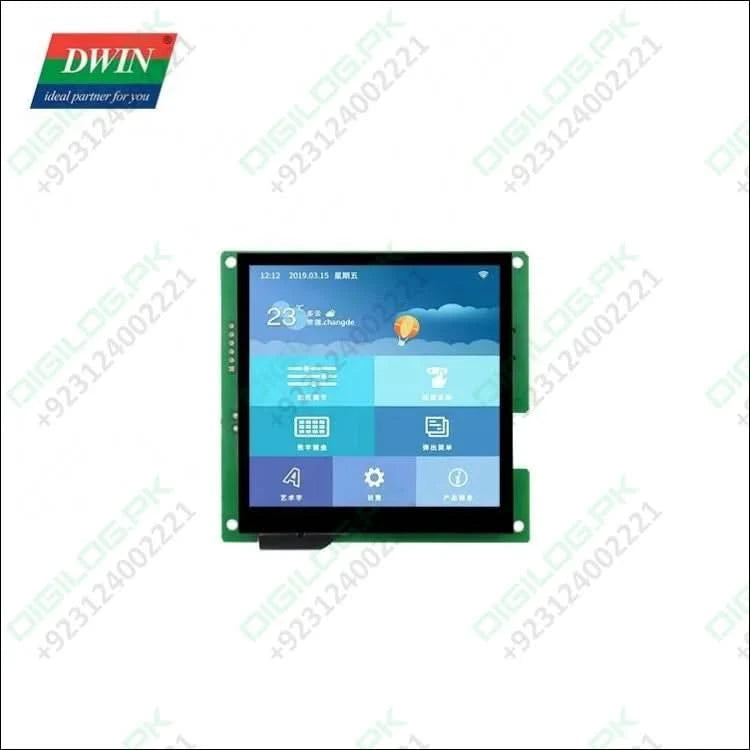

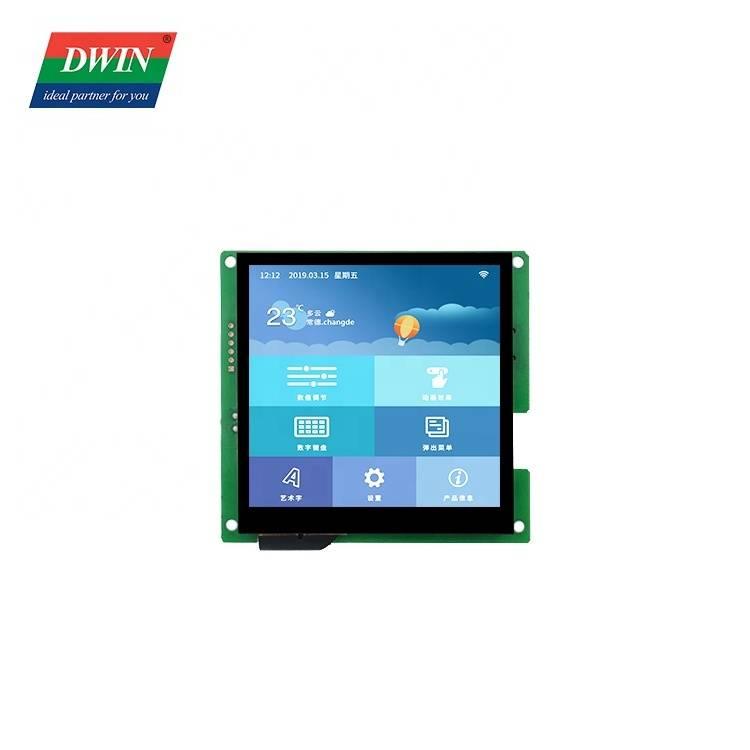

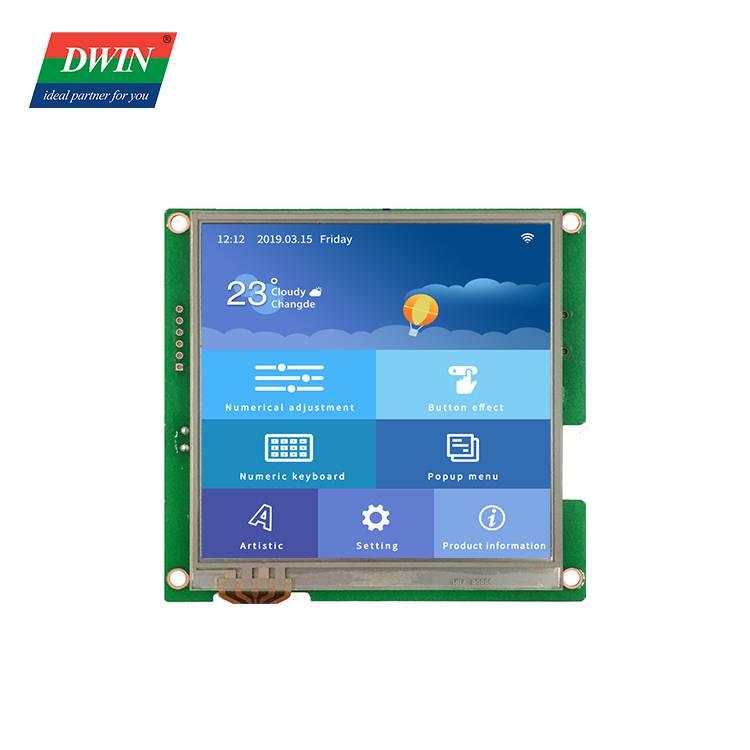

4.0 Inch Hmi Lcd Display Dmg48480c040_03w Commercial Grade In Pakistan

4.0 Inch Hmi Lcd Display Dmg48480c040_03w Commercial Grade In Pakistan

Regular price Rs 5,500
Regular price Sale price Rs 5,500
Sale Sold out
Shipping calculated at checkout.

SKU:b834

NOTIFY ME WHEN IN STOCK

4.0 inch HMI LCD Display DMG48480C040_03W Commercial grade

Specification:

● 4.0-inch, 480*480 pixels resolution, 16.7M colors,IPS TFT LCD;

●LCM interface FPC50_0.5mm,RTP interface FPC4_1.0mm;

● No touch/Resistive touch /Capacitive touch ;

● Download via SD card or on-line serial port,480×480 pixels;

● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;

● ITO film + ITO glass/G+G structure with surface cover of Asahi tempered glass;

● IPS View Angle: 85°/85°/85°/85° (L/R/U/D);

● DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.

Specification

DMG48480C040_03WTR

Specification Parameters

Color 16.7M(16777216) colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A) 71.90mm (W)×70.20mm (H)
Resolution 480×480
Backlight LED

Brightness

DMG48480C040_03WN 300nit
DMG48480C040_03WTR 270nit
DMG48480C040_03WTC 250nit

Touch Parameters

Type RTP (Resistive touch panel)
Structure ITO film + ITO glass
Touch Mode Support point touch and drag
Surface Hardness 3H
Light Transmittance Over 80%
Life Over 1,000,000 times touch

Type CTP (Capacitive touch panel)
Structure G+G structure with surface cover of Asahi tempered glass
Touch Mode Support point touch and drag
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch

Operating Environment

Working Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Working Humidity 10%~90%RH
Power Voltage 4.5~5.5V
Operation Current VCC = +5V, Backlight on,220mA
VCC = +5V, Backlight off,70mA
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
Output 0, Iout =-1mA;0~0.3 V
Input Voltage
(RXD)
Input 1, Iin = 1mA;2.4~5.0V
Input 0, Iin = -1mA;0~0.5V

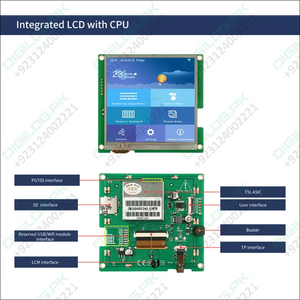

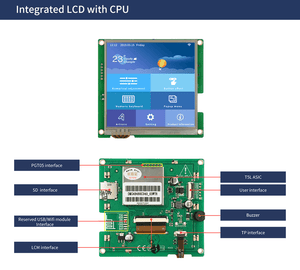

Interface

LCM interface FPC50_0.5mm, RGB interface
RTP interface FPC4_1.0mm
Baudrate 3150~3225600bps
User Interface UART2:3.3V & 5V TTL/CMOS
UART4:3.3V & 5V TTL/CMOS (Only available after OS configuration)
10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to

Packaging & Dimensions

DMG48480C040_03WN 60g
DMG48480C040_03WTR 85g
DMG48480C040_03WTC 90g
