Description

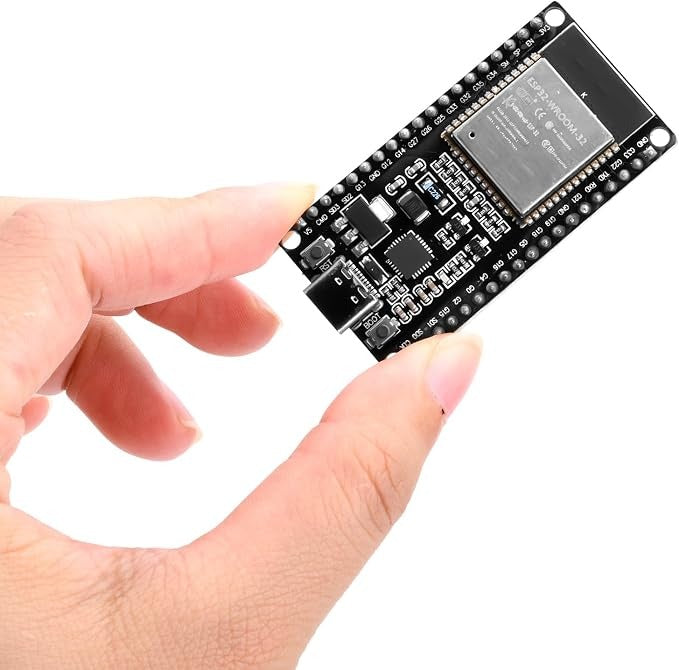

A complete ESP32 development board built around the ESP32-WROOM-32 module, featuring dual-core WiFi and Bluetooth connectivity for IoT, home automation, and embedded projects. This version includes a modern USB Type-C connector for programming and power (upgraded from the older Micro-USB versions).

Key Features:

• Core Module: ESP32-WROOM-32 (dual-core Tensilica LX6, WiFi 802.11 b/g/n + Bluetooth/BLE)

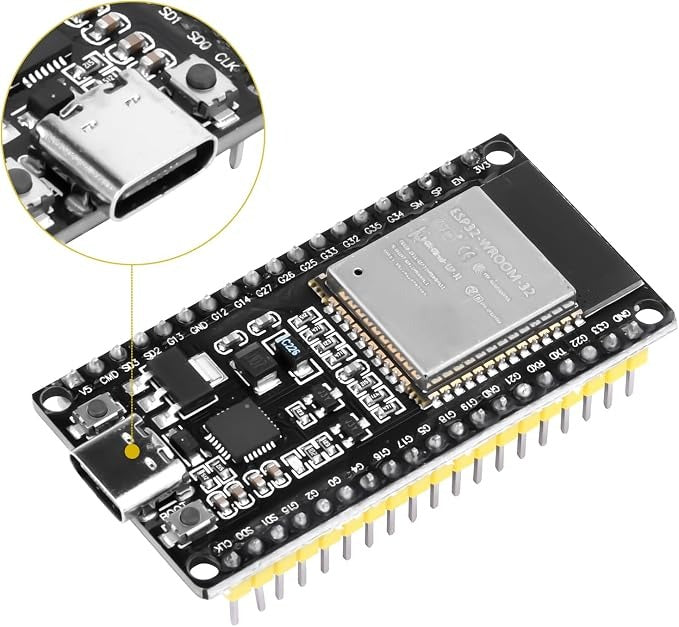

• Connectivity: USB Type-C for programming, power, and serial communication
• CH340/CP2102-type USB-to-Serial chip (onboard, auto-reset supported)
• Pin Layout: 38-pin, breadboard-friendly dual-row header
• Onboard Buttons: EN (Reset) and BOOT (Flash mode) buttons
• Onboard Voltage Regulator: Supports 5V USB input, regulated to 3.3V logic
• GPIO: Multiple digital I/O, ADC, DAC, PWM, SPI, I2C, UART, touch-sensor pins broken out
• Antenna: Onboard PCB trace antenna for WiFi/BT

Ideal For:

• IoT projects and smart home devices
• Home automation and sensor networks
• Robotics and remote control projects
• Wireless data logging
• Arduino/MicroPython/ESP-IDF development

Package Includes:

• 1 x ESP32-WROOM-32 Development Board Type C
