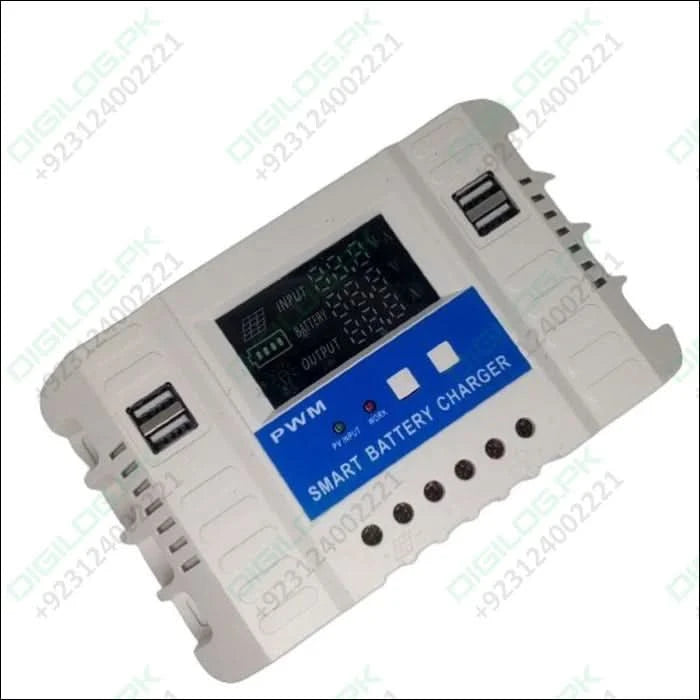

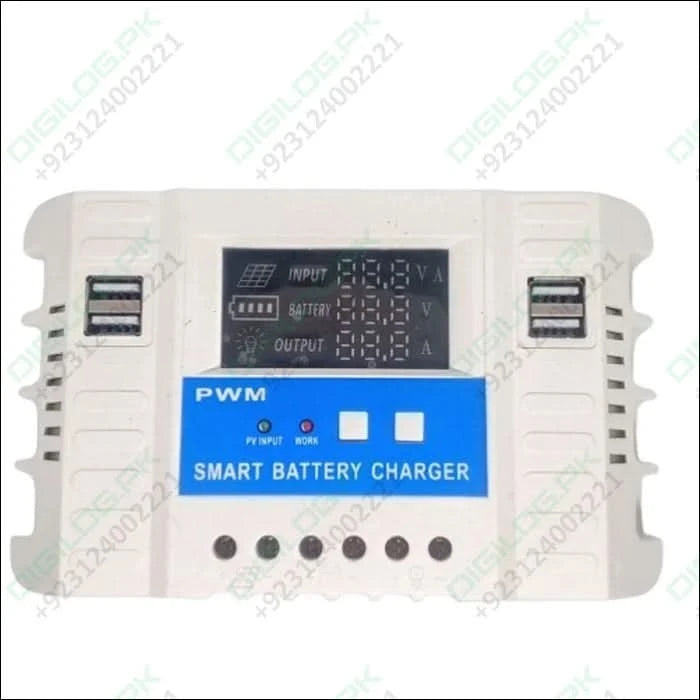

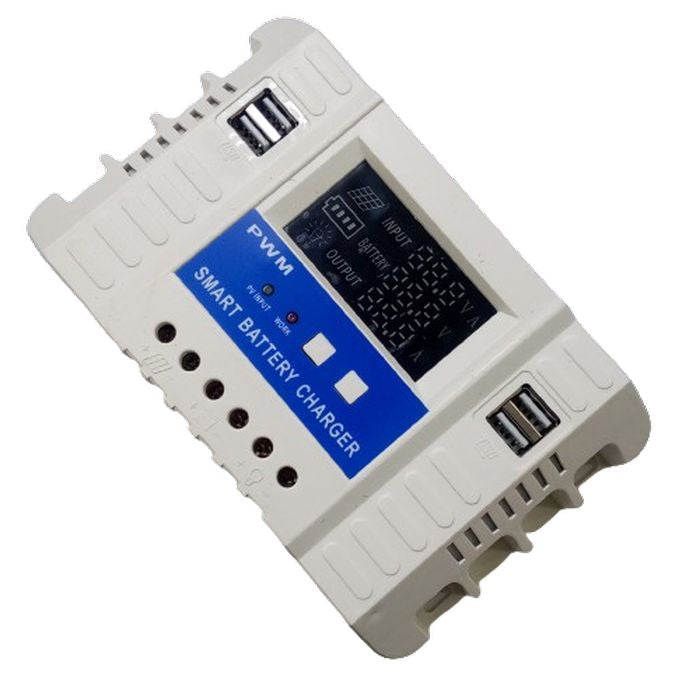

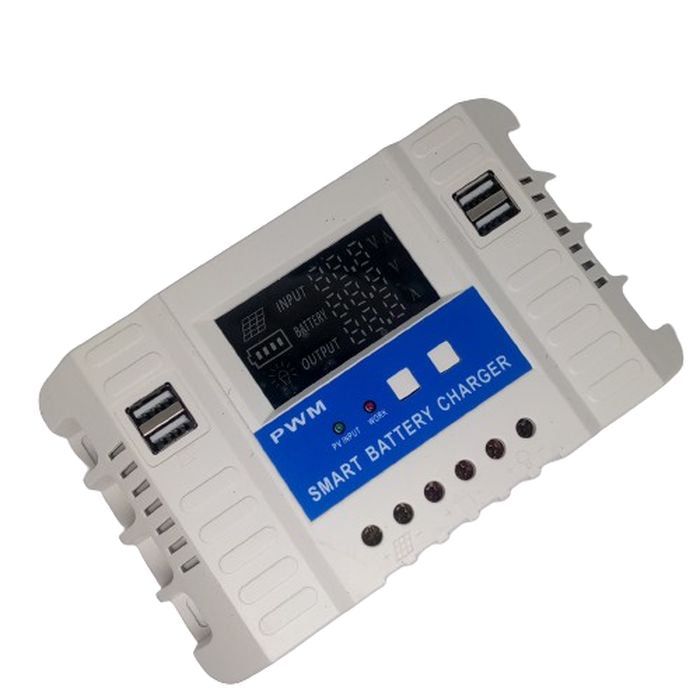

30a 12v/24v Lcd Solar Panel Regulator Generator Charge Charging Controller Cm3024z

30a 12v/24v Lcd Solar Panel Regulator Generator Charge Charging Controller Cm3024z

Regular price Rs 1,500
Regular price Sale price Rs 1,500
Sale Sold out
Shipping calculated at checkout.

SKU:B687,krt159

NOTIFY ME WHEN IN STOCK

12V/24V automatic identification charger, lead-acid battery (lithium battery, Ni-MH battery is not available) solar charge controller, only supports photovoltaic solar panels as a charging source. When the charging battery is 12V, choose the 17-22V solar panel; when the charging battery is 24V, choose the 30-42V solar panel for charging. Charging with mismatched voltage will damage the controller. Charging and discharge status display, cumulative power generation and discharge query, temperature display. Light control + delay control, adjustable charge and discharge parameters, with power-off memory function. Built-in over the current, short circuit, open circuit, reverse connection, protection; self-recovery protection, does not damage the controller and extends the service life.

Features:

  • 100% brand new and high quality.
  • The controller adopts 12V/24V automatically. And with super LCD.
  • Complete 3-stage PWM charging management.
  • Built-in over-current/short circuit protection, open circuit protection, and reverse connection protection are self-recovery types and do not damage the controller.
  • Double MOS anti-backflow circuit, ultra-low heat.
  • Information such as charging current and accumulated charging amount can be seen through the LCD screen.

Specifications:

  1. Application: Solar System Controller
  2. Model: CM3024Z
  3. Accumulator Capacity: 30A(mAH)
  4. Output Voltage: 12(V)
  5. Product Usage: solar power generation
  6. Woke Voltage: 12/24V
  7. Charging Type: PWM
  8. Colour: Black

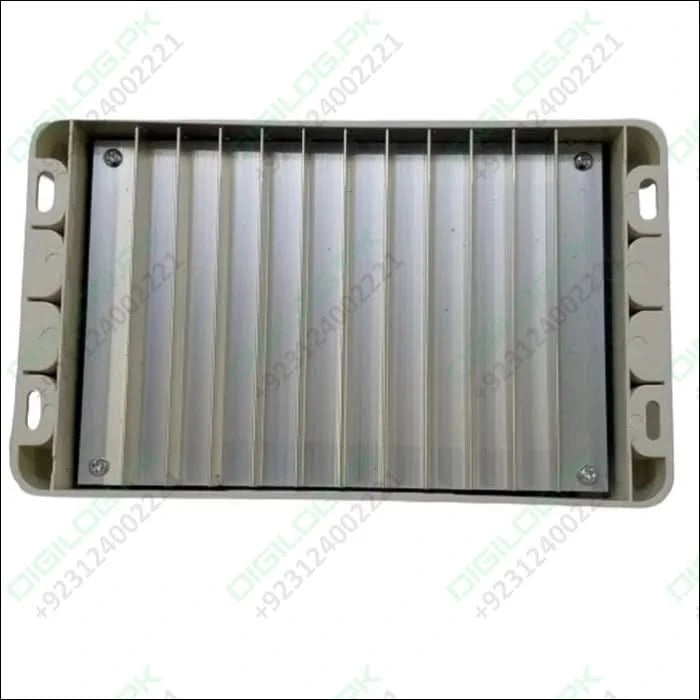

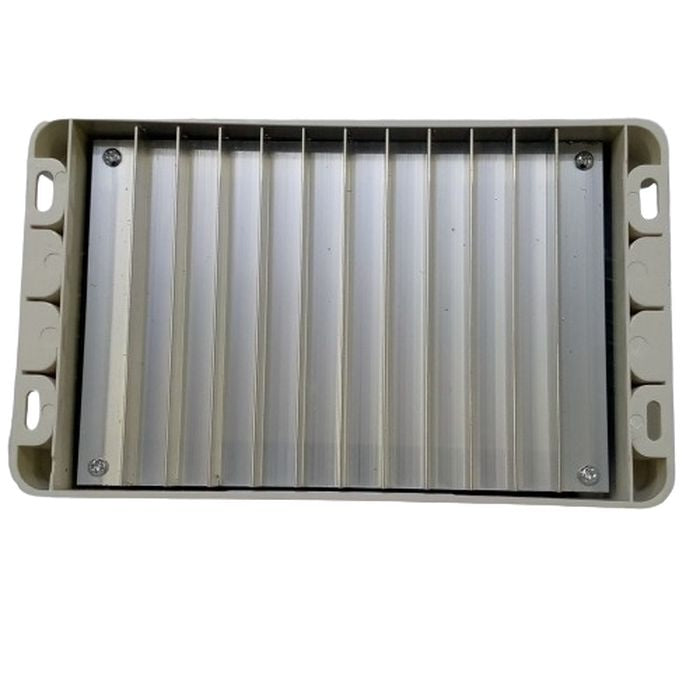

  9. Material: ABS + aluminum alloy bottom plate
  10. Size: (approx)18.3 * 9 * 4.5cm

Installation:

  1. Ready tools and cables. Encourage you to match the right cables. Ensure that the current density<4mm2 is conducive to reducing the line voltage drop—recommended: 60A with 20mm2 cable. Check whether the installation sites comply with the relevant safety requirements. Please avoid dampness, and dust, there is a place flammable, explosive, and corrosive gases use the controller to install.
  2. Install the controller into a fixed vertical plane. See section 5 of the pore size and pore spacing. To ensure good thermal control conditions, please set aside each 10cm below the controller space.
  3. As shown on the right, connect the (1) Load, (2) Battery, and (3) Solar Panel to the controller according to the order of (1) (2) (3). Pay attention to the load, battery, solar panel, and controller of the same polarity.
  4. Put into the external temperature sensor on the left of the controller (probe port). The temperature sensor should be similar space to the battery. (Otherwise, the controller will control the parameters of all wrong temperature compensation.)
  5. If you have remote monitoring and control function, please insert one end of the included communication wire on the right of the controller (communication port), and the other end to connect to The host computer.

Demolition: To prevent accidents, please order the destruction of solar panels, battery, and load disconnect with the controller.
Note: Battery polarity will not damage the controller, but you will have a load of equipment security risks.

Package Includes:

  • 1 x Solar Controller

Best online shopping website for 30A 12V/24V LCD Solar Panel Regulator Generator Charge Charging Controller CM3024Z at the best and low cost in Lahore Karachi Islamabad, and all over Pakistan.






View full details

Description

12V/24V automatic identification charger, lead-acid battery (lithium battery, Ni-MH battery is not available) solar charge controller, only supports photovoltaic solar panels as a charging source. When the charging battery is 12V, choose the 17-22V solar panel; when the charging battery is 24V, choose the 30-42V solar panel for charging. Charging with mismatched voltage will damage the controller. Charging and discharge status display, cumulative power generation and discharge query, temperature display. Light control + delay control, adjustable charge and discharge parameters, with power-off memory function. Built-in over the current, short circuit, open circuit, reverse connection, protection; self-recovery protection, does not damage the controller and extends the service life.

Features:

  • 100% brand new and high quality.
  • The controller adopts 12V/24V automatically. And with super LCD.
  • Complete 3-stage PWM charging management.
  • Built-in over-current/short circuit protection, open circuit protection, and reverse connection protection are self-recovery types and do not damage the controller.
  • Double MOS anti-backflow circuit, ultra-low heat.
  • Information such as charging current and accumulated charging amount can be seen through the LCD screen.

Specifications:

  1. Application: Solar System Controller
  2. Model: CM3024Z
  3. Accumulator Capacity: 30A(mAH)
  4. Output Voltage: 12(V)
  5. Product Usage: solar power generation
  6. Woke Voltage: 12/24V
  7. Charging Type: PWM
  8. Colour: Black
  9. Material: ABS + aluminum alloy bottom plate
  10. Size: (approx)18.3 * 9 * 4.5cm

Installation:

  1. Ready tools and cables. Encourage you to match the right cables. Ensure that the current density<4mm2 is conducive to reducing the line voltage drop—recommended: 60A with 20mm2 cable. Check whether the installation sites comply with the relevant safety requirements. Please avoid dampness, and dust, there is a place flammable, explosive, and corrosive gases use the controller to install.
  2. Install the controller into a fixed vertical plane. See section 5 of the pore size and pore spacing. To ensure good thermal control conditions, please set aside each 10cm below the controller space.
  3. As shown on the right, connect the (1) Load, (2) Battery, and (3) Solar Panel to the controller according to the order of (1) (2) (3). Pay attention to the load, battery, solar panel, and controller of the same polarity.
  4. Put into the external temperature sensor on the left of the controller (probe port). The temperature sensor should be similar space to the battery. (Otherwise, the controller will control the parameters of all wrong temperature compensation.)
  5. If you have remote monitoring and control function, please insert one end of the included communication wire on the right of the controller (communication port), and the other end to connect to The host computer.

Demolition: To prevent accidents, please order the destruction of solar panels, battery, and load disconnect with the controller.
Note: Battery polarity will not damage the controller, but you will have a load of equipment security risks.

Package Includes:

  • 1 x Solar Controller

Best online shopping website for 30A 12V/24V LCD Solar Panel Regulator Generator Charge Charging Controller CM3024Z at the best and low cost in Lahore Karachi Islamabad, and all over Pakistan.
