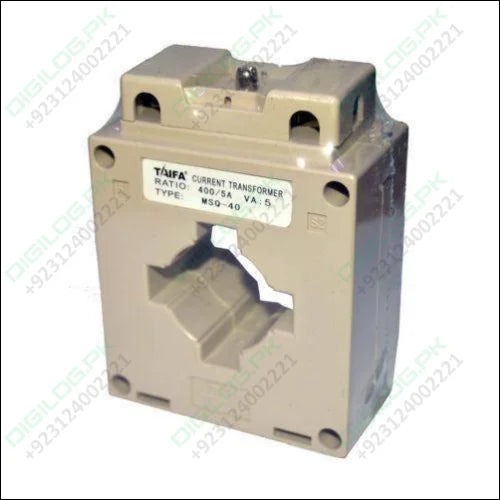

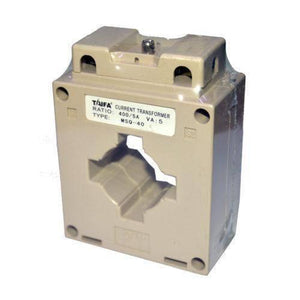

300A Ct 300amp Current Transformer - Taifa MSQ-40 current transformer, a beige square-shaped electrical component with a central opening and a label reading 400/5A VA:5.

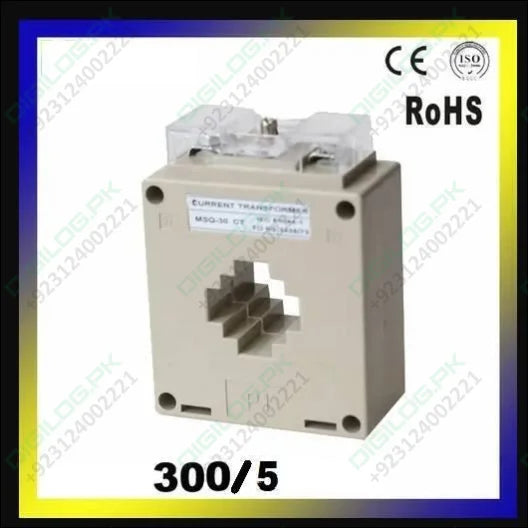

300A Ct 300amp Current Transformer - 300/5 Current Transformer, a beige square-shaped electrical component with a central aperture and two top terminals under a clear plastic cover.
300A Ct 300amp Current Transformer - the front and side profile dimensions labeled with letters A through F.

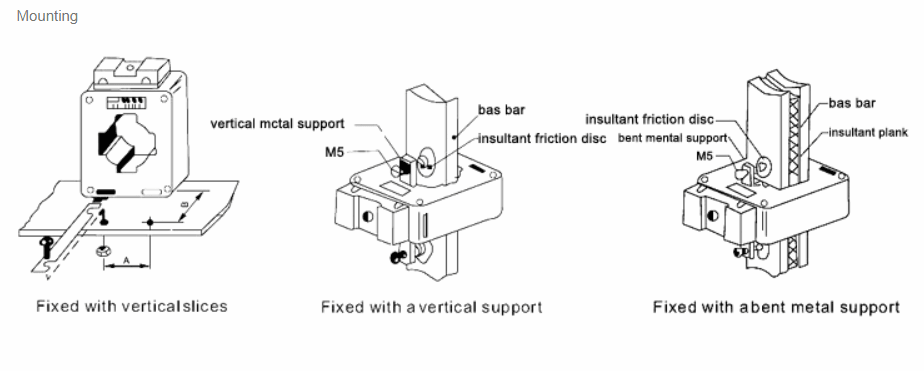

300A Ct 300amp Current Transformer - three different mounting methods using metal supports, screws, and insulating discs.
300A Ct 300amp Current Transformer - Taifa MSQ-40 current transformer, a beige square-shaped electrical component with a central opening and a label reading 400/5A VA:5.
300A Ct 300amp Current Transformer - 300/5 Current Transformer, a beige square-shaped electrical component with a central aperture and two top terminals under a clear plastic cover.
300A Ct 300amp Current Transformer - the front and side profile dimensions labeled with letters A through F.
300A Ct 300amp Current Transformer - three different mounting methods using metal supports, screws, and insulating discs.

300A Ct 300amp Current Transformer

Sale price Rs 910
SKU: B311,DELL
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

300A Ct 300amp Current Transformer - Taifa MSQ-40 current transformer, a beige square-shaped electrical component with a central opening and a label reading 400/5A VA:5.

300A Ct 300amp Current Transformer

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
300A Ct 300amp Current Transformer - Taifa MSQ-40 current transformer, a beige square-shaped electrical component with a central opening and a label reading 400/5A VA:5.
300A Ct 300amp Current Transformer
Sale priceRs 910

Ensure the safe and efficient operation of your electrical equipment with this high-quality 300A current transformer. This versatile tool offers a range of benefits:

  • Real-time Current Monitoring: Accurately measures and displays current flow in your electrical system.
  • Overload Protection: Protects your equipment from damage caused by excessive current spikes.
  • Data Recording Compatibility: Works with compatible data acquisition systems for in-depth analysis.
  • Easy Installation: Simple and straightforward installation process.

Specifications:

  • Primary Current: 300A
  • Secondary Current: 5A
  • Rated Frequency: 50/60Hz
  • Maximum Operating Voltage: 660V AC
  • Operating Temperature: -10°C to 80°C
  • Dimensions: 80mm x 61mm x 37mm (H x W x D)

Applications:

  • Industrial control systems
  • Building automation
  • Power monitoring and analysis
  • Predictive maintenance

 Image result for current transformer gif
