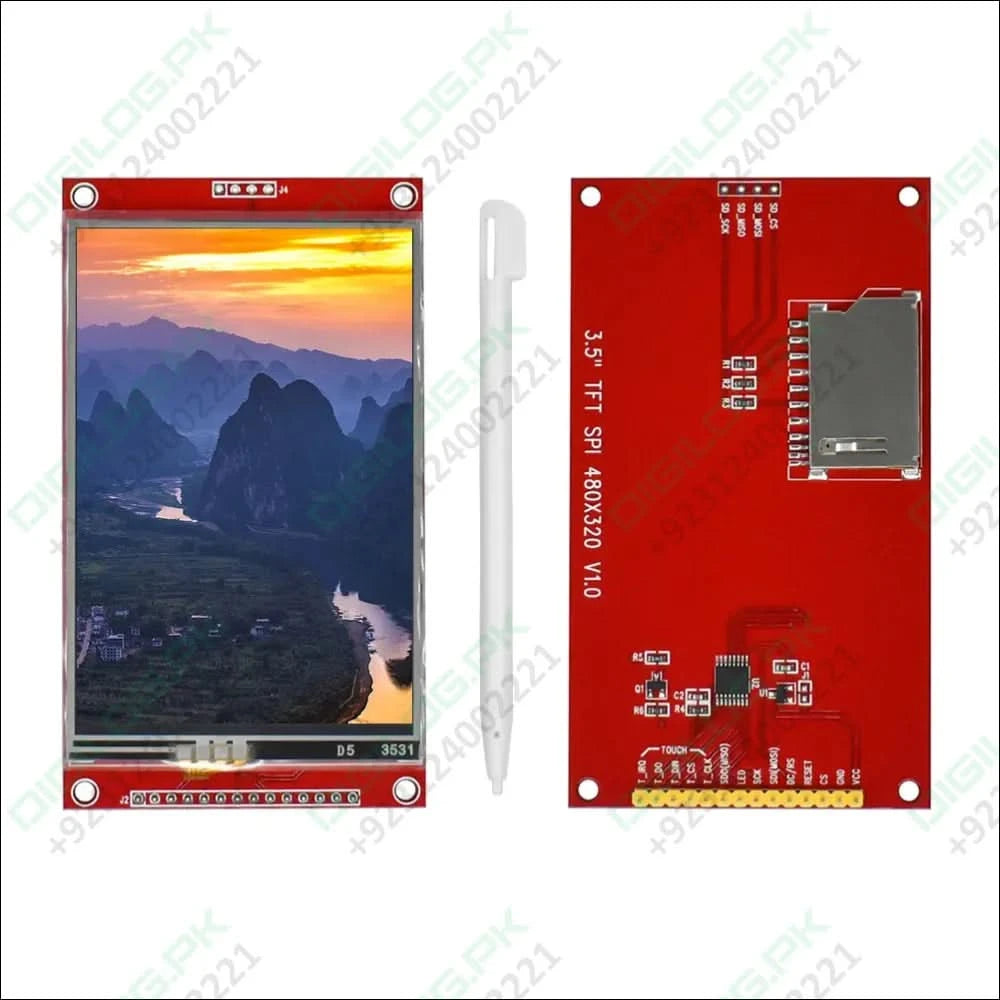

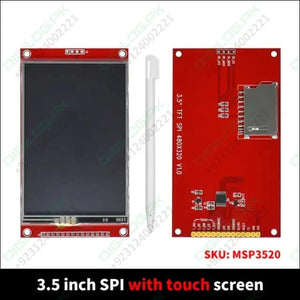

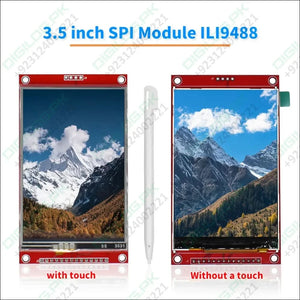

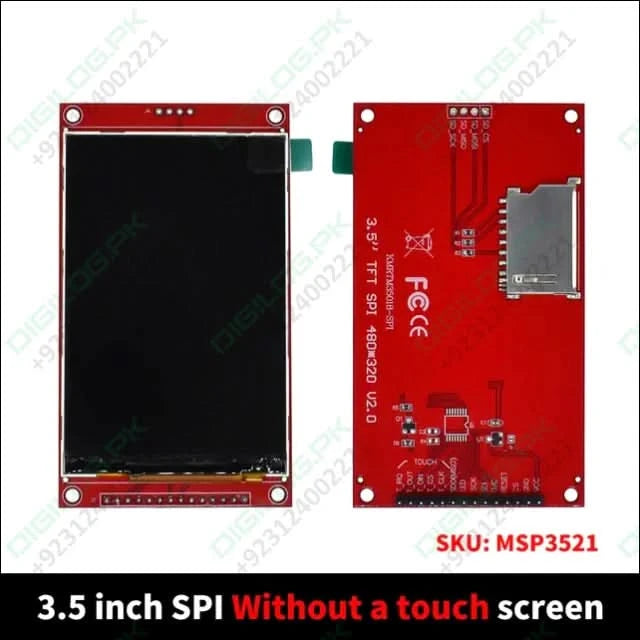

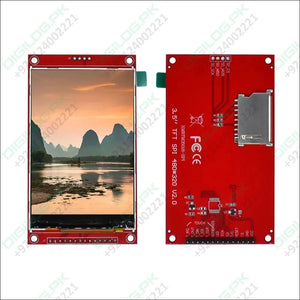

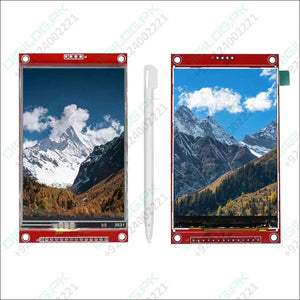

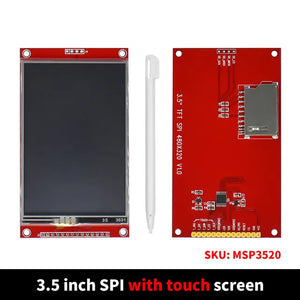

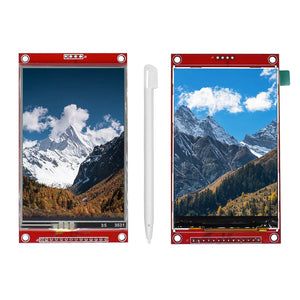

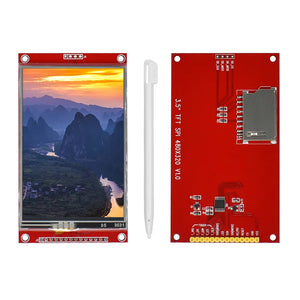

3.5 Inch Tft Lcd Module With Touch Panel Ili9488 Driver 320x480 Spi Port Serial Interface (9 Io) Touch Ic Xpt2046
3.5 Inch Tft Lcd Module With Touch Panel Ili9488 Driver 320x480 Spi Port Serial Interface (9 Io) Touch Ic Xpt2046
SKU:B837
Couldn't load pickup availability

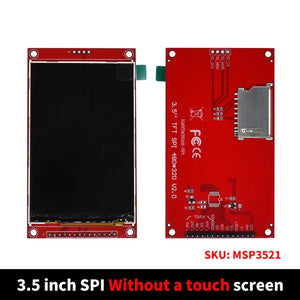

Type: with or without touch panel
Size:3.5 inch SPI Serial
Display size:56.34(W)X98.00(H)mm
Active area:48.96x73.44(mm)
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9488
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 65K
Resolution (dots): 320RGB*480 Dots
Power consumption: about 90ma
Data Interface: 4-Wire SPI interface
VCC Voltage: 3.3V - 5V
IO Voltage: 3.3V
With or without touch
Need at least 4 IOs from your MCU

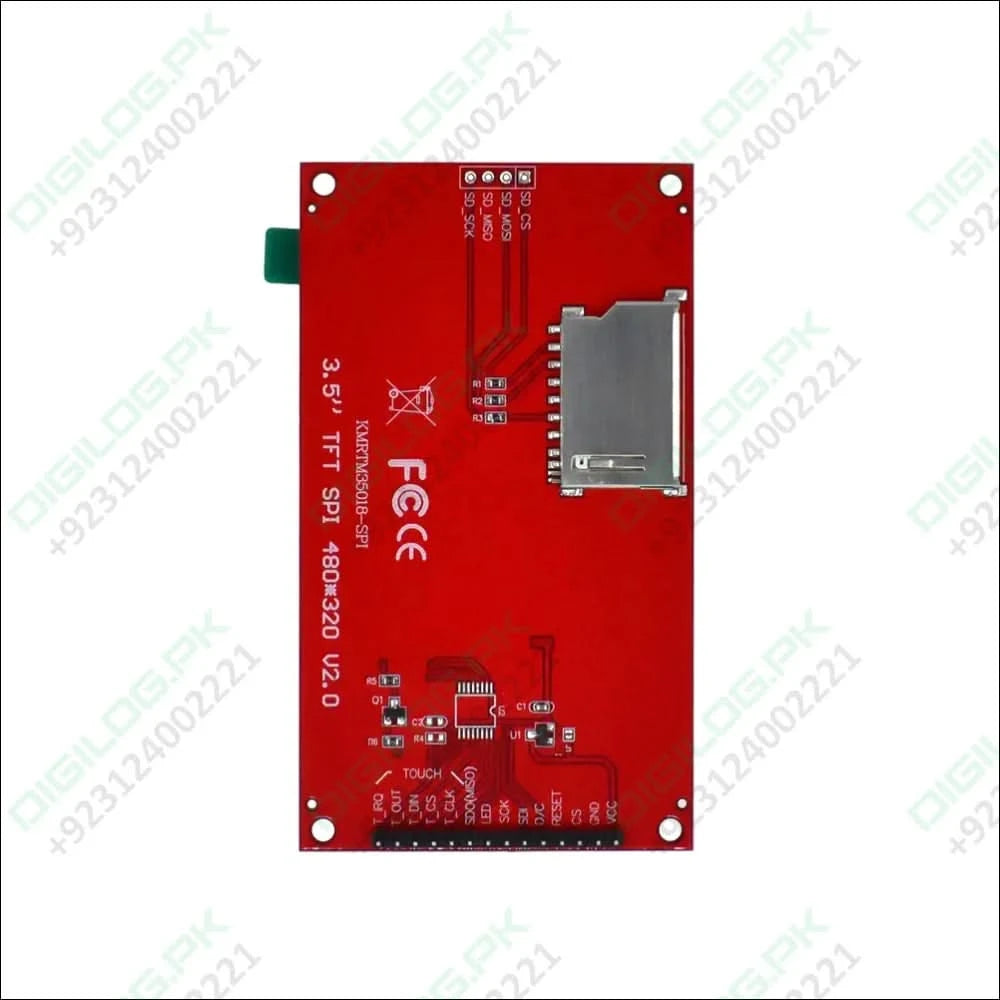

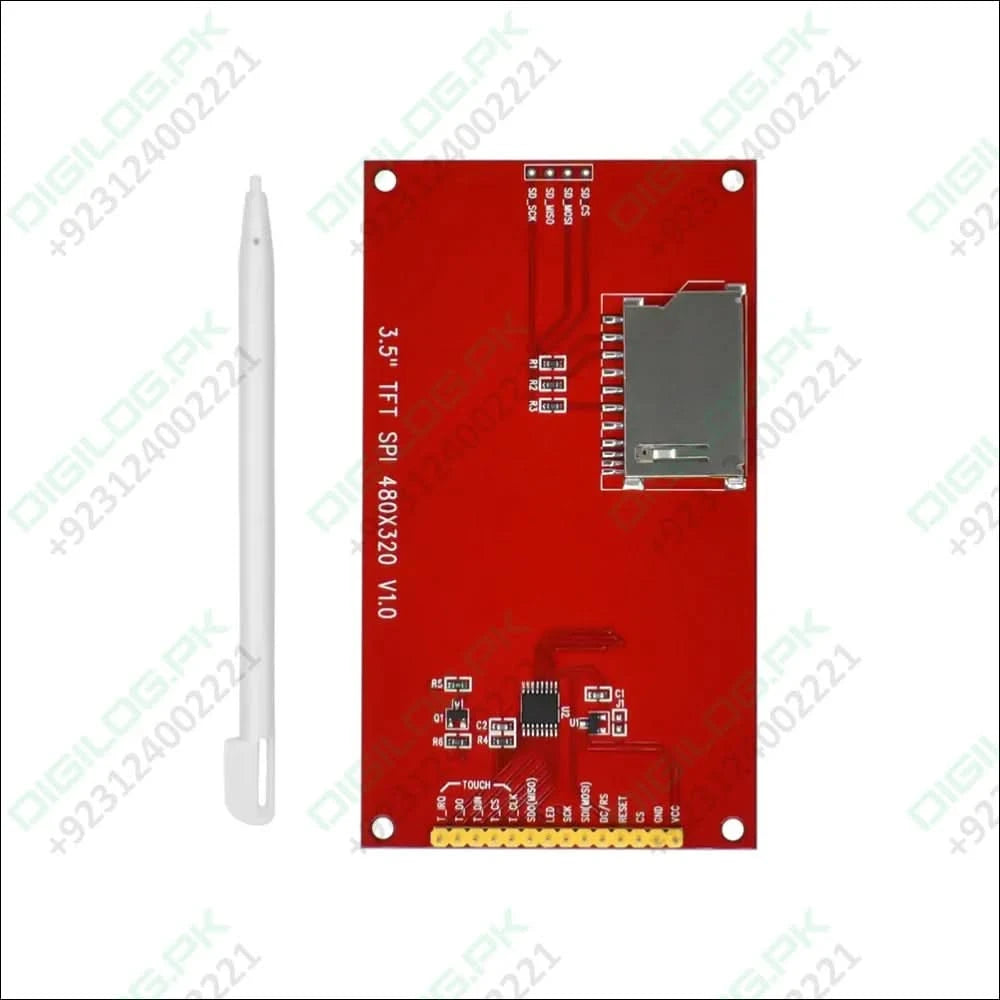

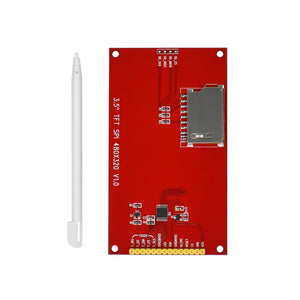

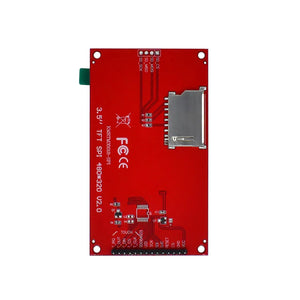

With PCB plate (including power supply IC, SD), compatible with 5110 interface
Description
Type: with or without touch panel
Size:3.5 inch SPI Serial
Display size:56.34(W)X98.00(H)mm
Active area:48.96x73.44(mm)
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9488
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 65K
Resolution (dots): 320RGB*480 Dots
Power consumption: about 90ma
Data Interface: 4-Wire SPI interface
VCC Voltage: 3.3V - 5V
IO Voltage: 3.3V
With or without touch
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
