3.5 Inch TFT LCD Module ILI9488 Driver 320x480 SPI Port Serial Interface (9 Io)
Pickup available at Digilog Electronics
Usually ready in 2 hours
3.5 Inch TFT LCD Module ILI9488 Driver 320x480 SPI Port Serial Interface (9 Io)

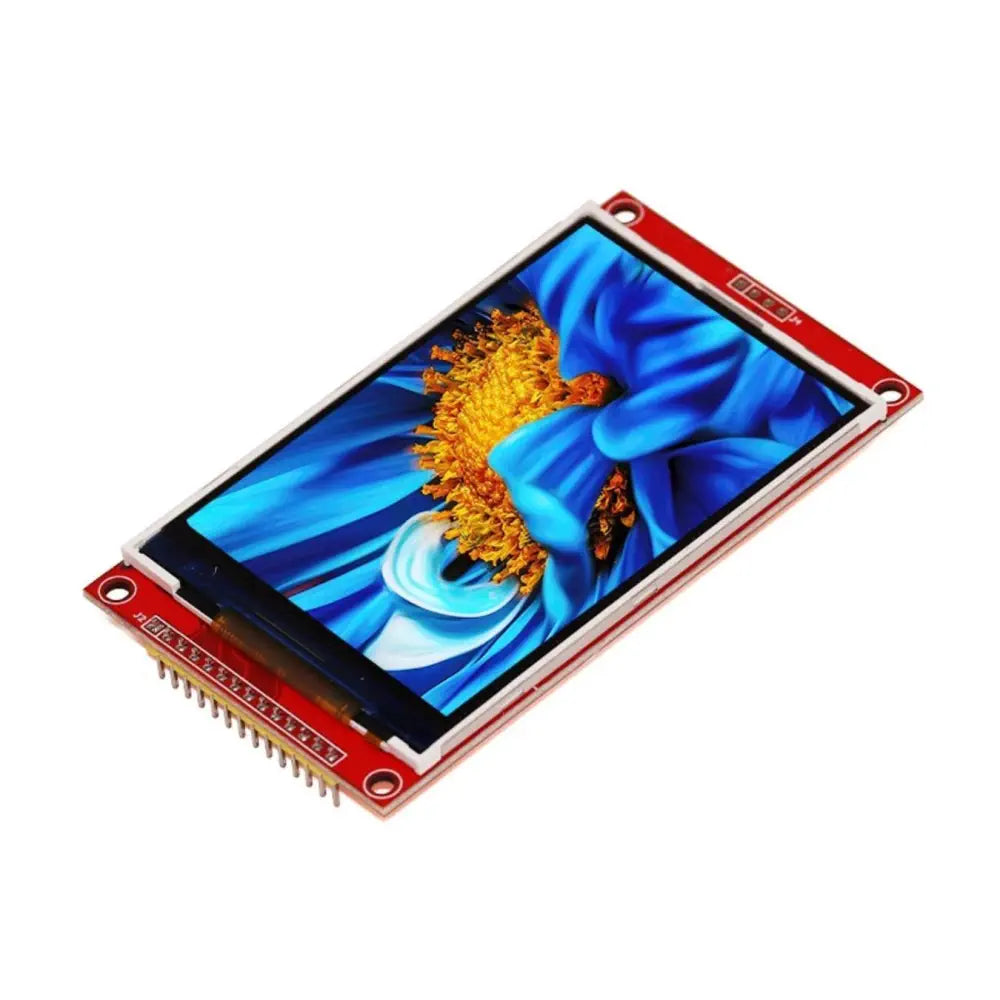

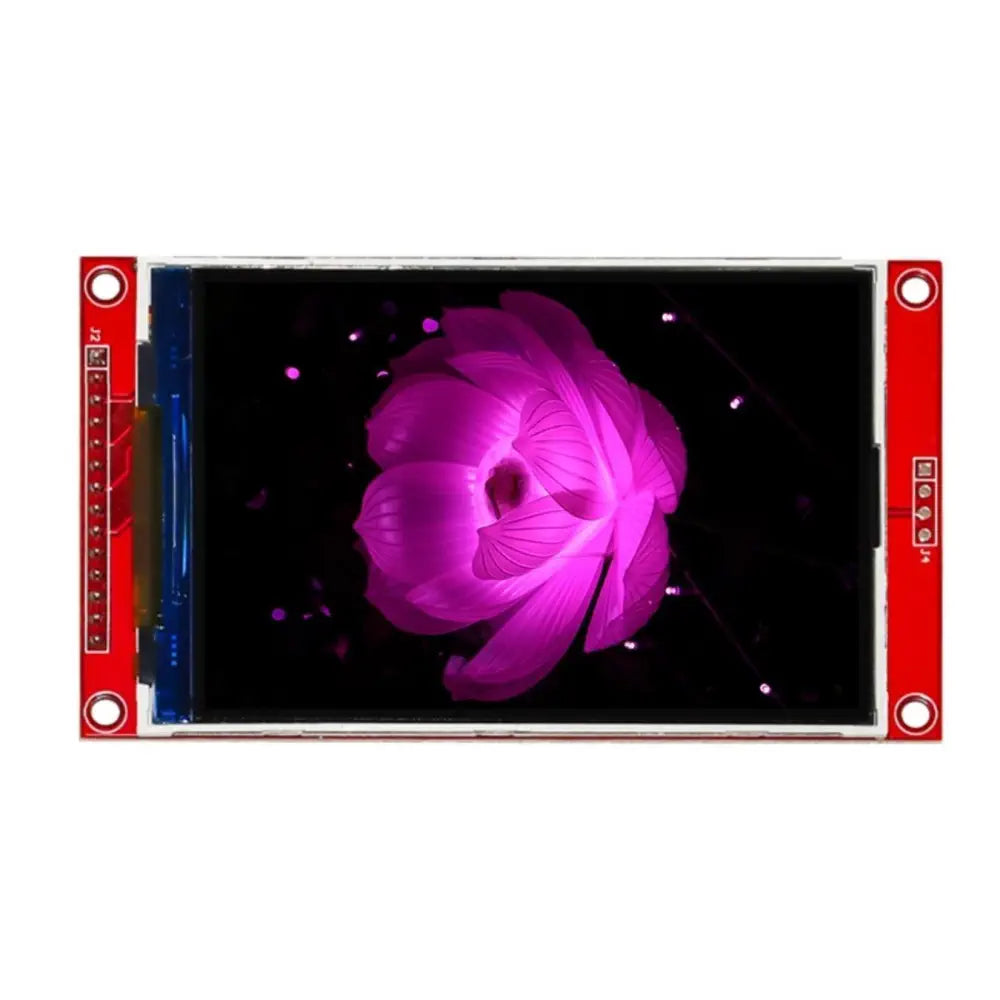

Introducing our high-quality 3.5 inch TFT LCD module, featuring a vibrant, high-resolution display. This versatile module is perfect for a wide range of electronic projects.
Key Features:
- 3.5 Inch Display: Offers ample viewing area for your applications.
- SPI Serial Interface: Supports a simple and efficient communication protocol.
- High Resolution: 320x480 pixels for detailed visuals.
- RGB Vertical Stripe: Provides accurate color reproduction.
- White LED Backlight: Ensures bright and clear images.

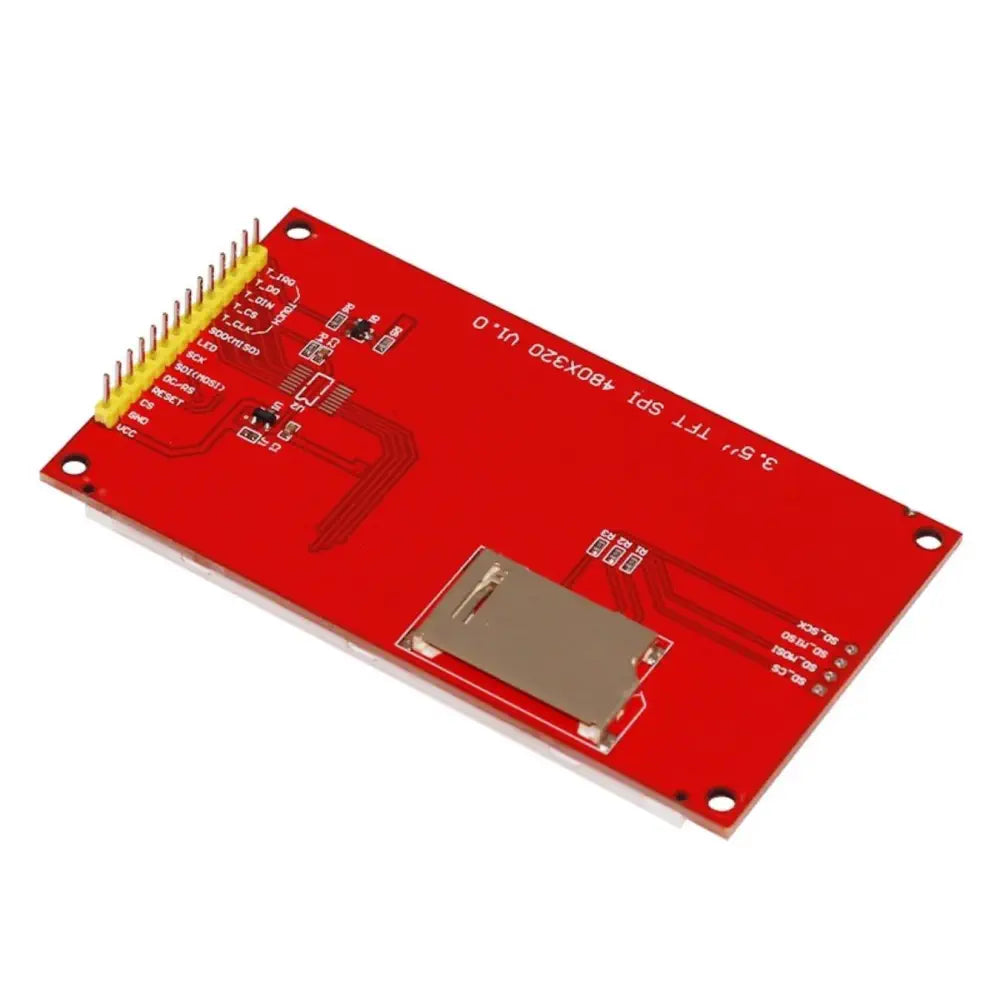

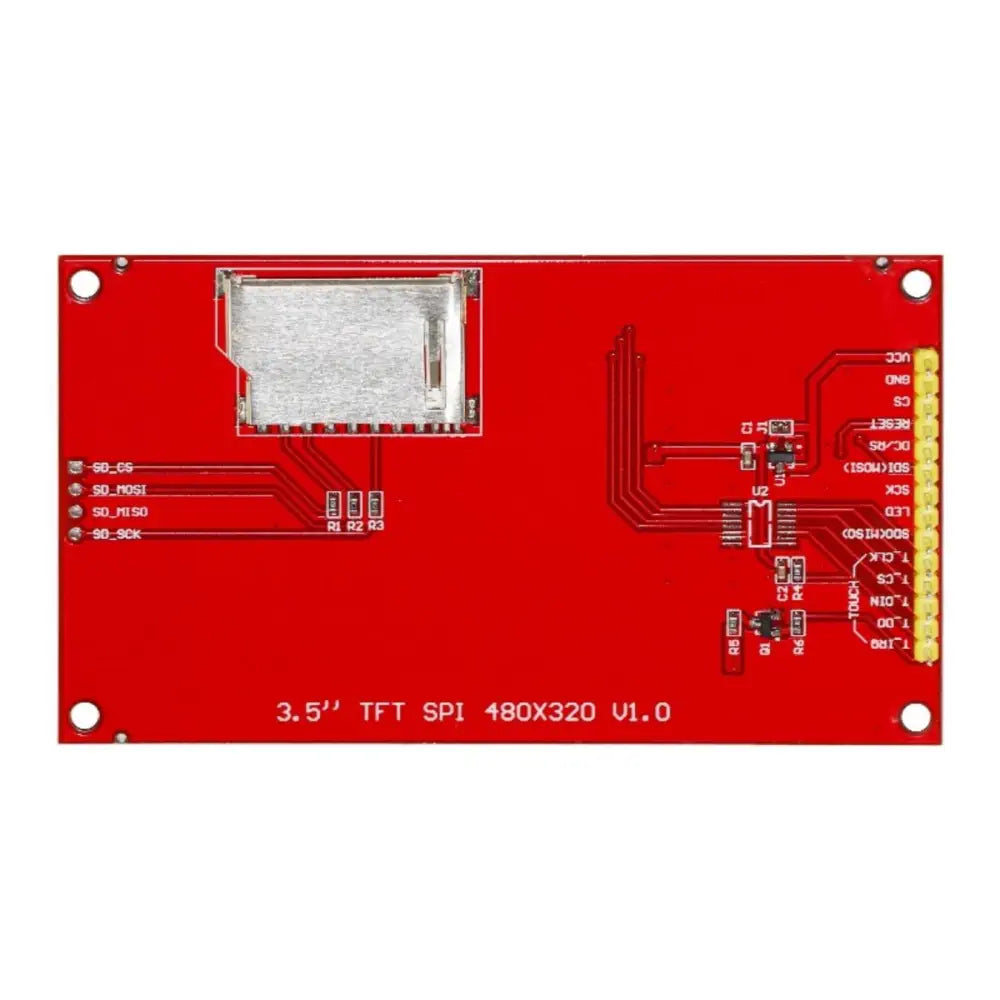

- Onboard Components: Includes power supply IC and SD card slot for added functionality.
- Wide Compatibility: Works with various microcontrollers and development boards.
Specifications:

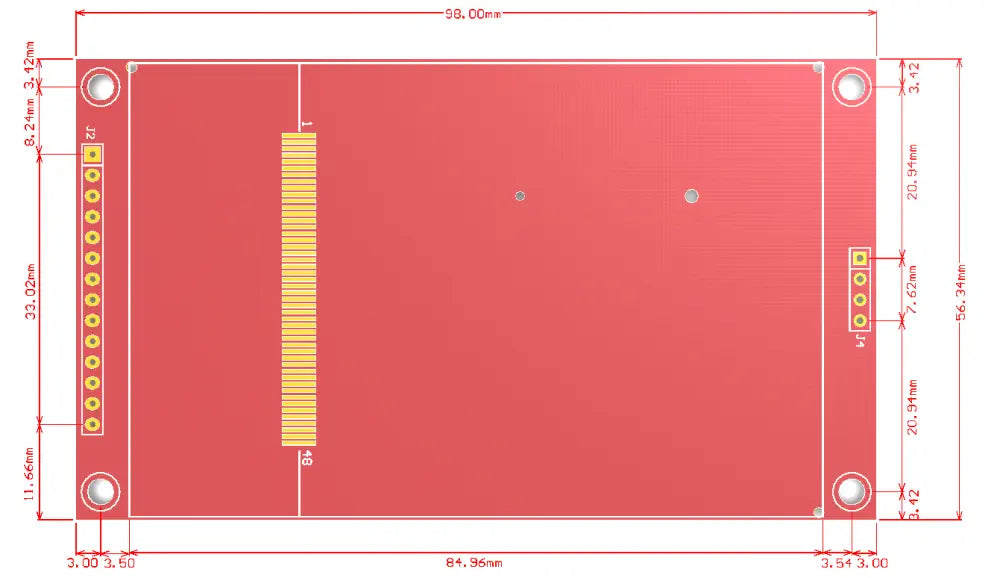

- Size: 56.34mm (W) x 98.00mm (H)
- Active Area: 48.96mm x 73.44mm
- Driver IC: ILI9488
- Resolution: 320x480 pixels
- Backlight: White LED
- Viewing Direction: 6 o'clock
- Color Depth: 65K
- Power Consumption: Approximately 90mA
- Data Interface: 4-Wire SPI interface
- VCC Voltage: 3.3V - 5V
- IO Voltage: 3.3V
Applications:
- Electronic Projects: Add a visual interface to your projects.
- DIY Devices: Create custom displays and interfaces.
- Industrial Equipment: Provide visual information and control.
- Consumer Electronics: Integrate displays into various devices.
Order Your TFT LCD Module Today!
Enhance your projects with this versatile and high-performance display.
