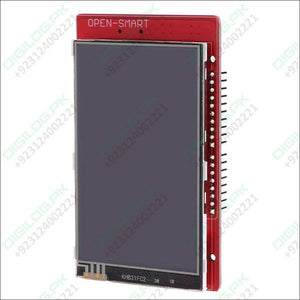

3.2 Inch Tft Lcd Display Module Touch Screen Shield
Description
Overview of 3.2 inch TFT LCD Display module Touch Screen Shield:

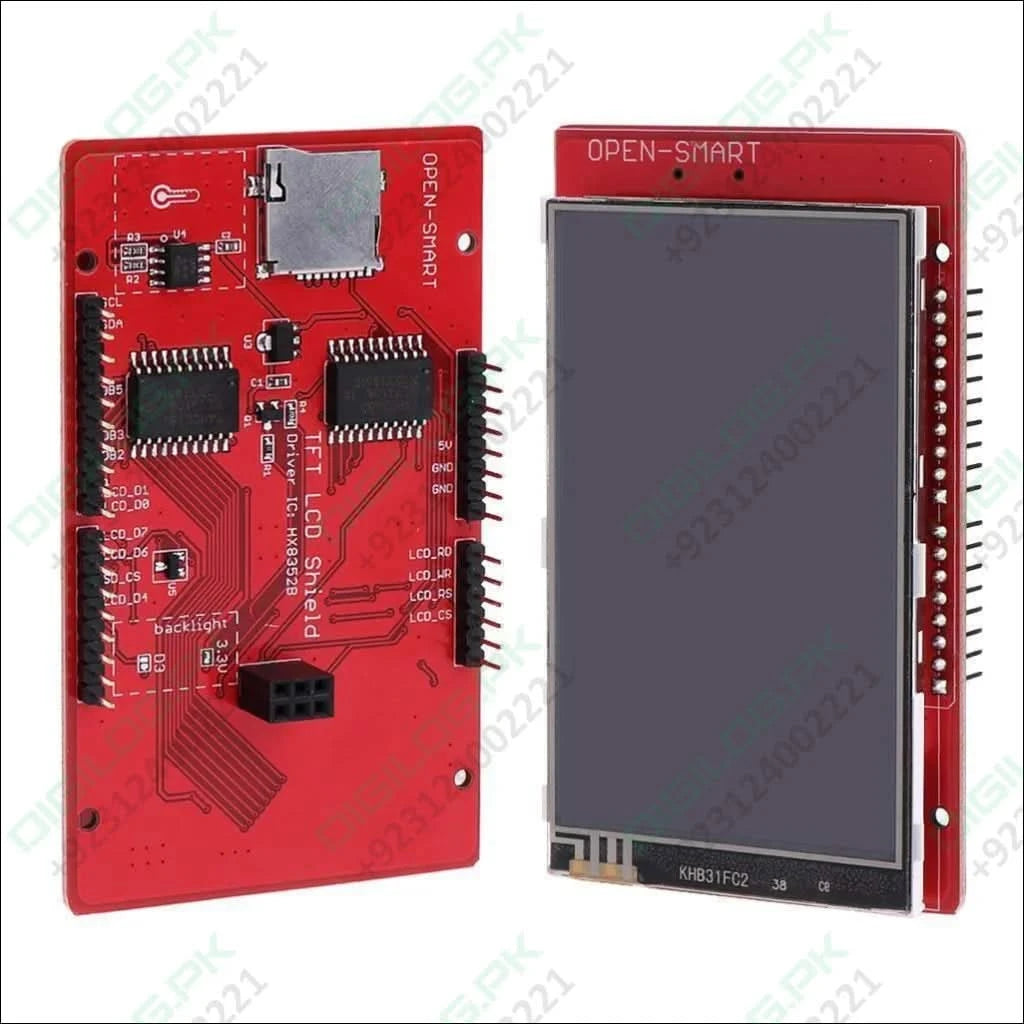

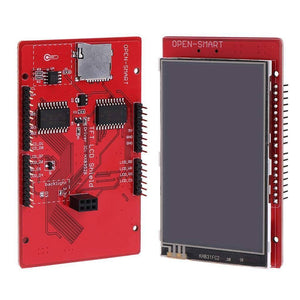

This is a 3.2 inch TFT touch screen expansion board using standard Shield interface and it has good compatibility. It integrates a 3.2-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is easy.With GPRS module, you can design your Arduino phone.With NFC reader module, you can create access control systems with the photos show.With voltage and current sensor, you can make oscilloscope.
Specificatons of 3.2 inch TFT LCD Display module Touch Screen Shield:
- Resolution: 240X400
- Touch screen type: resistive touchscreen

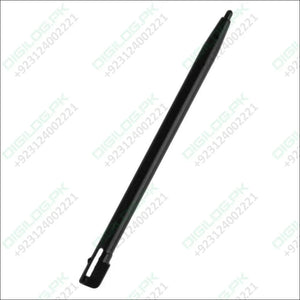

- Touch Pen: length is 9cm
- Display size: 3.2 inch
- Operating voltage: 5V
- Logic level: 5V / 3.3V
- On-board: 3.3V / 300mA regulator circuit
- Operating current: the maximum is 150mA
Features of 3.2 inch TFT LCD Display module Touch Screen Shield:
- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor
- Onboard LM75 temperature sensor: default I2C address is 0X48, scale is -55 ~ 125'C
- Onboard Micro SD slot, support Micro SD / TF Card
- Can use it directly to display characters, graphics and BMP format image
- With voltage and current sensor, you can make oscilloscope
- With GPRS module, you can design your Ar duino phone
- With NFC reader module, you can create access control systems
- 3.2 inch TFT LCD Display module Touch Screen Shield Compatible with Arduino UNO R3/Mega 2560 R3/Leonardo
Package Includes:

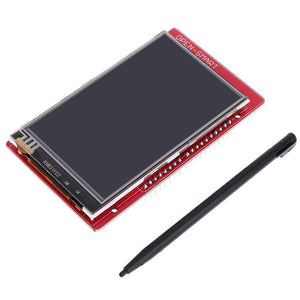

- 1 x 3.2 inch TFT LCD Display module Touch Screen Shield
