Description

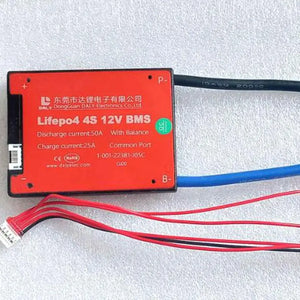

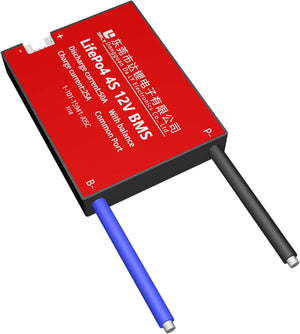

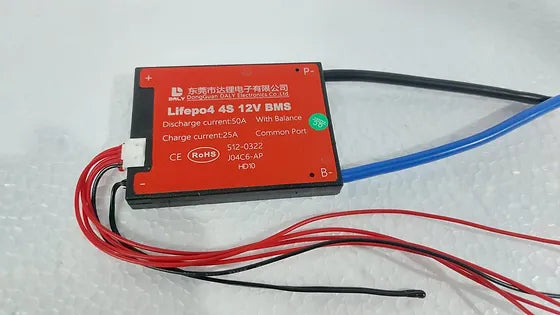

Specification of DALY BMS 4S 12V 50A LiFePo4 Common Port Battery Protection Module:
- Battery Type: LiFePo4
- Continue discharge current: 50A
- Peak current: 150±25A
- Main circuit inner resistance: ≤ 20mΩ
- Charge Voltage: S*3.75V
- Charge Current: 25A
- Overcharge detect voltage: 3.75 ± 0.05V
- Overcharge protection delay: 1 Sec
- Overcharge release voltage: 3.65 ± 0.05V
- Balance detect voltage: 3.5 V
- Balance release voltage: 3.5 V
- Balance current: 30 ± 5 mA
- Over discharge detect voltage: 2.7 ± 0.1V
- Over discharge detect delay: 1 Sec
- Over discharge release voltage: 3.0 ± 1.0V
- Over-current detect delay: 1 mS
- Over-current detect voltage: OFFLOAD
- Short circuit protection condition: Short circuit external load
- The short circuit detects delay: 250µS
- Short circuit protection relay condition: Offload
- working current: 100µA
- Sleeping current (when in discharge): 20µA
- Working temp range: -20 ̴ 70 ͦc
- Sleeping temp range: -40 ̴ 80 ͦ
Package include: 1xCommon Port DALY BMS 4S 12V 50A LiFePo4 Battery Protection Module
