2M 3296W Multiturn Variable Resistor Potentiometer Trimmer Resistor
Pickup available at Digilog Electronics
Usually ready in 2 hours
2M 3296W Multiturn Variable Resistor Potentiometer Trimmer Resistor
Product Description

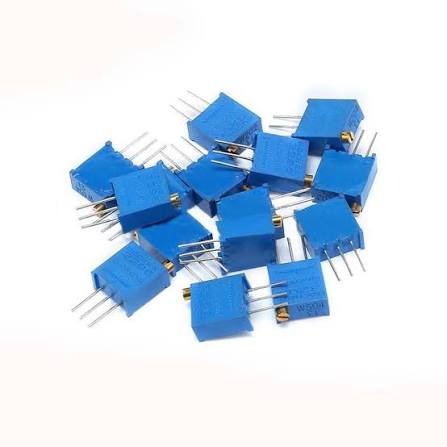

The 3296W series is a widely used square-body multiturn trimmer potentiometer, valued for its precision adjustment capability in analog circuits. This 2M Ohm version uses a 25-turn cermet element, allowing fine, gradual resistance adjustment via a top-mounted adjustment screw — ideal for applications where accurate calibration is critical.
Housed in a compact blue plastic body with side or top pin configurations, the 3296W is a standard component in circuit prototyping, calibration circuits, and control panels.
Key Specifications
| Parameter | Value |
|---|---|
| Model | 3296W |
| Resistance | 2M Ohm (2,000,000Ω) |
| Adjustment | 25-turn (multiturn) cermet element |
| Tolerance | ±10% (typical) |
| Power Rating | 0.5W |
| Operating Temperature | -55°C to +125°C (typical) |
| Body Color | Blue |
| Mounting | Through-hole, PCB pins |
Key Features
- Multiturn precision adjustment – 25 turns allow fine-tuned resistance settings compared to single-turn trimmers
- Compact square form factor – standard footprint for easy PCB integration
- Sealed cermet resistive element – stable performance and good wear resistance
- Top-adjust screw – accessible for calibration after board assembly
- Wide resistance range availability – part of the 3296W series (commonly available from 100Ω to 2MΩ)
Typical Applications
- Circuit calibration and fine-tuning
- Voltage divider and reference adjustment circuits
- Audio equipment level control
- Sensor calibration circuits
- DIY electronics and prototyping
Package Includes
- 1X 2M 3296W Multiturn Variable Resistor Potentiometer Trimmer Resistor
