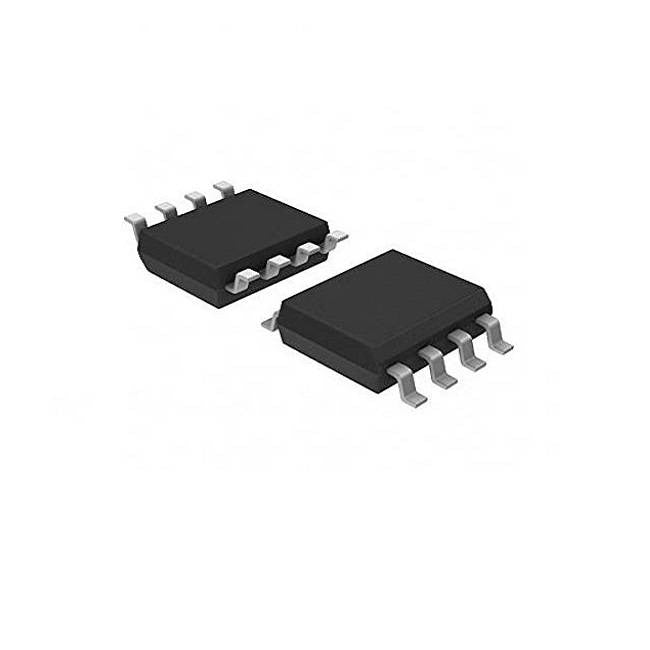

24C64 Serial EEPROM 64k Memory SMD IC
Pickup available at Digilog Electronics
Usually ready in 2 hours
Description
The 24C64 Serial EEPROM (64K Memory, SMD IC) is a high-performance, non-volatile memory device designed for data storage and retrieval in microcontroller-based systems. It uses the I²C (Inter-Integrated Circuit) serial interface for fast and efficient communication with processors such as Arduino, PIC, AVR, and ARM.
This IC provides 64K bits (8KB) of memory capacity, making it suitable for storing configuration data, system logs, calibration tables, and small databases in embedded systems. Its low power consumption, wide voltage range, and long data retention make it highly reliable for both industrial and educational applications.
Perfect for students, engineers, and hobbyists in Pakistan, this IC is commonly used in robotics, IoT projects, electronic meters, and industrial controllers.
Why Buy This EEPROM in Pakistan?
-
Best 24C64 EEPROM IC price in Pakistan
-
Reliable data storage solution for microcontrollers
-
Compact SMD package for space-saving PCB design
-
Supports multiple devices on the same I²C bus
-
Nationwide delivery with cash on delivery (COD) option
Technical Specifications
| Feature | Details |
|---|---|
| Model | 24C64 |
| Memory Capacity | 64 Kbit (8KB) |
| Interface | I²C Serial Bus |
| Organization | 8,192 × 8 (Byte) |
| Operating Voltage Range | 2.5V – 5.5V |
| Write Cycle Time | 5 ms (Typical) |
| Data Retention | 40 Years |
| Endurance | 1 Million Write Cycles per Byte |
| Package Type | SMD (SOIC / TSSOP depending on stock) |
| Operating Temperature | -40°C to +85°C |
| Compatibility | Arduino, AVR, PIC, ARM, STM32, Raspberry Pi |
Applications
-
Storing configuration data & calibration values
-
Robotics & IoT projects in Pakistan
-
Consumer electronics (TVs, set-top boxes, audio devices)
-
Industrial controllers & smart meters
-
Embedded systems for universities & research labs
-
Replacement EEPROM for existing electronics
