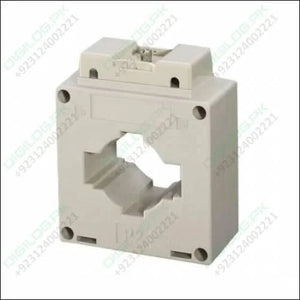

200a Ct 200amp Current Transformer 200a/5a
200a Ct 200amp Current Transformer 200a/5a
200a Ct 200amp Current Transformer 200a/5a

200a Ct 200amp Current Transformer 200a/5a

Rs 800 PKR
SKU: KRT151,Dell,TMD,Th
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

This 200A CT or 200Amp Current Transformer can test, control, display and record the running operation of an electrical equipment. And it is also used to protect the equipment against possible damage from increase in amperes or amperage.It works in AC circuit with rated voltage value below 600V and AC frequency of 50-60Hz. The product can also be applied to form a complete set of mine transformer.*Product images shown may differ from actual product sold. However, product specifications are correct.

 Image result for current transformer gif

Specifications and features:

  1. Primary current    200A
  2. Secondary current    5A

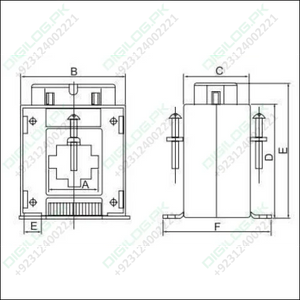

  3. Dimensions: 100mm x 76mm x 41mm (H x W x D)
  4. Rated Frequency    50/60Hz
  5. Maximum operating voltage    600V AC
  6. Rated Test Voltage Isolation    3KV AC (1min)
  7. Rated shot-time thermal current (Ith)    60In
  8. Rated dynamic current (Idyn)    2.5Ith
  9. Rated voltage (Um)    0.72KV AC
  10. Continuous overload (Id)    1.2In
  11. Operating temperature    -10°C ~ 80°C
  12. Rated security coefficient    FSB < 5

Package Includes :

1 x 200A Current Tranformer Module MSQ-30
