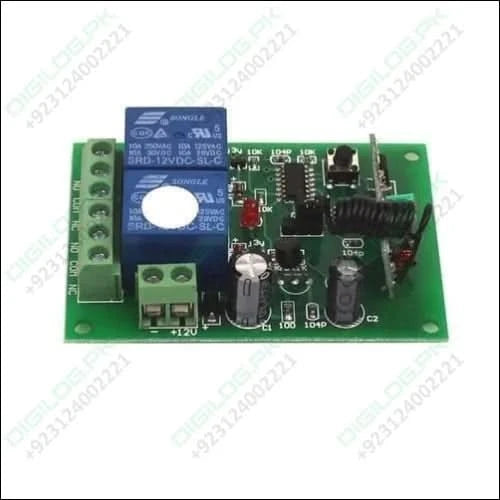

Features And Specifications Of RF Wireless 2 Channel System Remote Control Switch Module with Shell 12V 10A 315MHz Learning code LED:

• Channel: 2 CH 2 channel work way
• Decode: Learning code
• Working Voltage: DC 12V
• Output way:  Momentary defaults,(another model can change by yourself in work pin)
• Maximum Load Current: 10A
• Relay load:10A 220/110V
• Receiver Sensitivity: -105dBm
• Working temperature :  -40'C - +80'C
• Size: 68mm x 48mm x 15mm

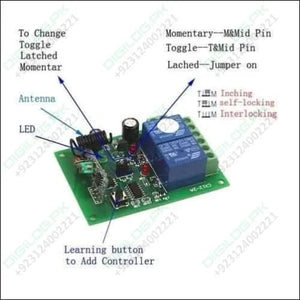

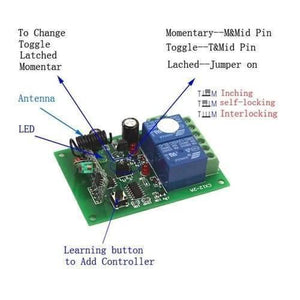

1. Jog/momentray: Press one button is Working /ON.  Loosen your finger on the same button is Stop/OFF.  One channel switch needs one button remote control.
2. Self-lock/Self-Latched: Press one button for one time is working/ON.  Press the same button again is stop/OFF.  One channel switch needs one-button remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF.  One channel switch need 2 buttons remote control.

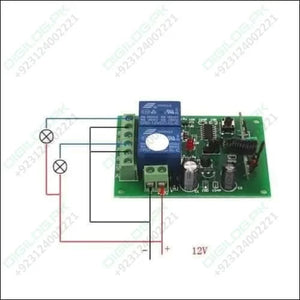

1. Connector the switch to 12V...
2. press the switchboard learn button (1-3 seconds), till the switch LED lighting.
3. after press the remote control button(A.B), till the switch LED lighting.. the relay will be ON or OFF.
4. test  the controller control the switch.. press the control button, the relay will be on and off.. you can hear it.

1. Connector the switch to 12V.
2. Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted. The remote controller can not control the switch relay.

Package Include:

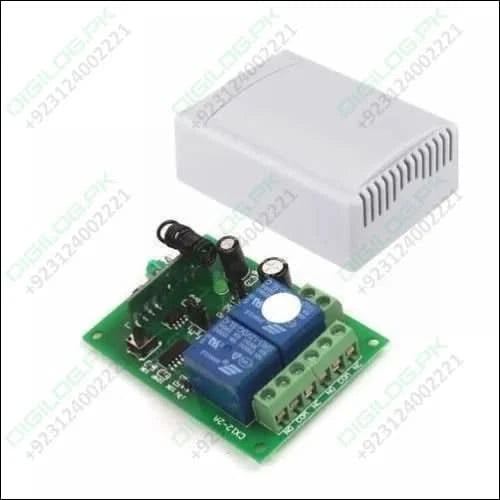

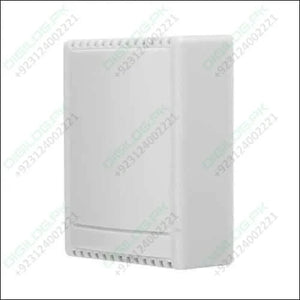

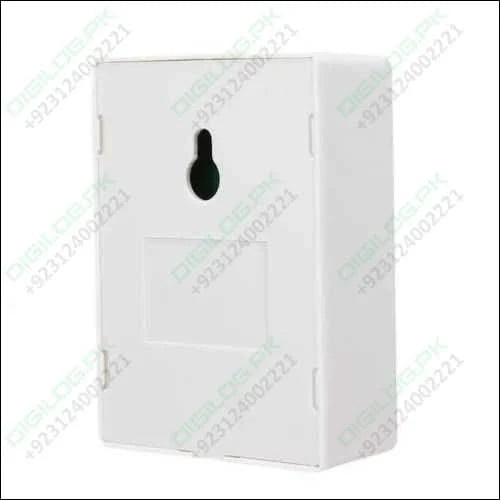

• 1 x 2 Channel RF Wireless System Remote Control Switch with Shell
