2.4 Inch SPI TFT LCD Touch Display Module ILI9341
Pickup available at Digilog Electronics
Usually ready in 2 hours
Add a vibrant, touch-enabled display to your next project with the 2.4 Inch SPI TFT LCD Touch Display Module ILI9341. Driven by the reliable ILI9341 controller, this compact module delivers 65K full colors, a crisp 240×320 (QVGA) resolution, and a built-in 4-wire resistive touch panel — all over a simple SPI interface that plays nicely with Arduino, ESP32, STM32, Raspberry Pi, and virtually any microcontroller with SPI support.
Key Features
- 2.4" IPS TFT LCD — vivid full-color display with wide viewing angles
- 240 × 320 px (QVGA) resolution with 65K colors
- ILI9341 display controller — fast refresh, proven reliability
- 4-wire resistive touch panel for interactive UI
- SPI interface — minimal GPIO pins required
- MicroSD card slot on rear for bitmap/image storage
- 3.3V / 5V compatible (revision dependent)
- Compact PCB with mounting holes
- Compatible with LVGL, Adafruit GFX, and TFT_eSPI libraries
Technical Specifications
| Specification | Details |
|---|---|
| Display Size | 2.4 Inch |
| Display Technology | IPS TFT LCD |
| Resolution | 240 × 320 Pixels (QVGA) |
| Display Driver | ILI9341 |
| Colors | 65K |
| Interface | SPI |
| Touch Type | 4-Wire Resistive |
| Operating Voltage | 3.3V / 5V (revision dependent) |
| MicroSD Slot | Yes |

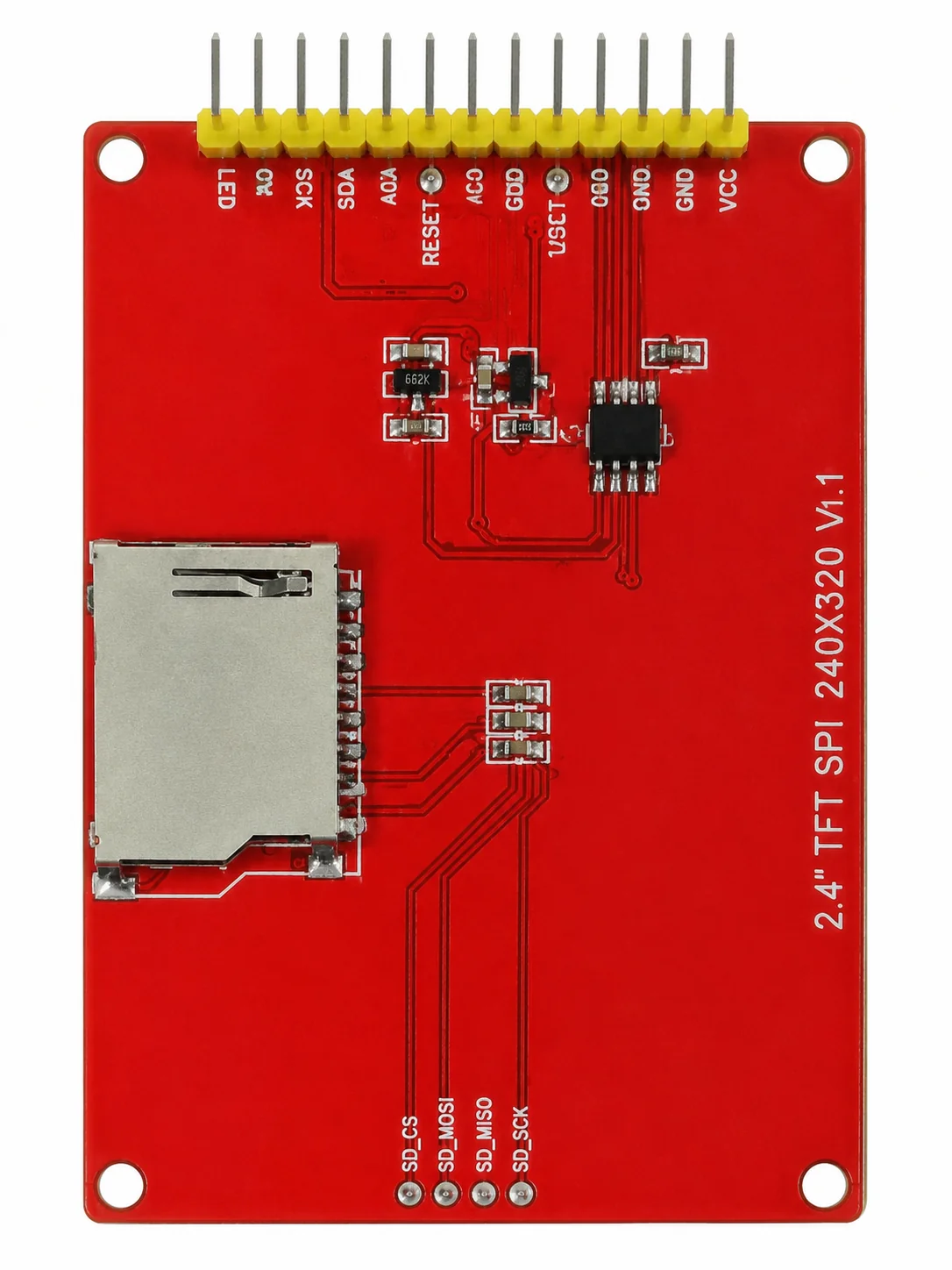

Pin Reference
| Pin | Description |
|---|---|
| VCC | Power Supply |
| GND | Ground |
| CS | Chip Select |
| RESET | Display Reset |
| DC | Data / Command |
| MOSI | SPI Data Input |
| MISO | SPI Data Output |
| SCK | SPI Clock |
| LED | Backlight Power |
| T_CLK | Touch Clock |
| T_CS | Touch Chip Select |
| T_DIN | Touch Data Input |
| T_DO | Touch Data Output |
| T_IRQ | Touch Interrupt |
Pin labels may vary between manufacturers. Always verify against your specific module's pinout diagram.
Compatible Platforms
- Arduino Uno, Nano, Mega 2560
- ESP32 & ESP8266 (NodeMCU)
- STM32 Development Boards
- Raspberry Pi
- PIC & AVR Microcontrollers
- PlatformIO, LVGL, Adafruit GFX, TFT_eSPI
Applications
- HMI (Human Machine Interface) panels
- IoT sensor dashboards & data visualization
- Industrial control and monitoring systems
- Smart home controllers
- Digital instruments & meters
- Robotics interfaces
- DIY electronics & educational projects
- Portable touchscreen display systems
Package Includes
- 1 × 2.4" SPI TFT LCD Touch Display Module (ILI9341)
Package contents may vary depending on the manufacturer or product revision.
