Rs 2,800 PKR
SKU: B410,L2,Th1
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

2.4 inch Nextion TFT HMI LCD Touchscreen NX3224T024 is a Seamless Human Machine Interface (HMI) solution. 2.4 inch Nextion TFT HMI LCD Touchscreen NX3224T024 that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion is a powerful HMI solution with a user-friendly editor and easy-to-use hardware. Create stunning GUIs with minimal programming effort.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.

We are also selling Nextion touchscreen in different sizes like 3.2", 3.5", 4.3", 7" etc.

Features of 2.4 inch Nextion TFT HMI LCD Touchscreen NX3224T024:

  • 320 x 240 Resolution
  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • Onboard micro-SD card for firmware upgrade
  • Visual Area:36.72mm(L)×48.96mm(W)
  • Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
  • 5V90mA power consumption

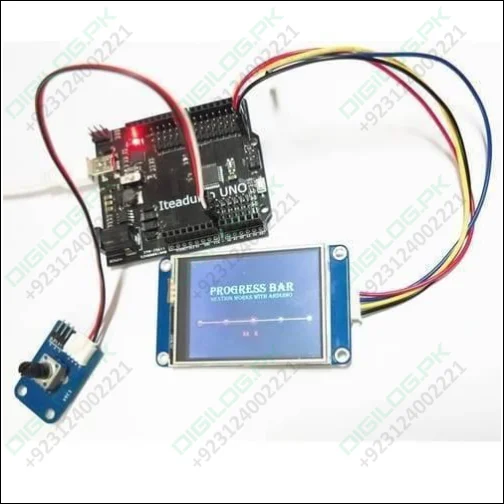

  • Generic using for all Arduino or Raspberry Pi project
  • CE/EMC, RoHS certified (certificates)

Specifications of 2.4 inch Nextion TFT HMI LCD Touchscreen NX3224T024:

Link Wiki No
Display Resolution 320 * 240
Display Interface Serial
Screen Type Touch Screen
Display Controller No
TFT display interface N/A
Display Size 2.4”
Board Size 74.4*42.9mm
Expand SD Card Socket
Touch Screen
Weight 53g

Documents:

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical Support:

For technical support, please open a ticket on Itead Support System.

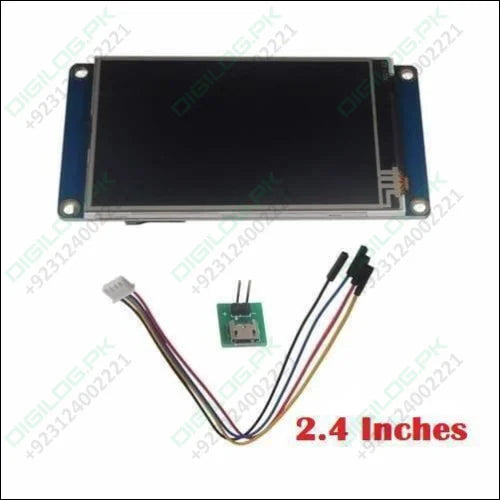

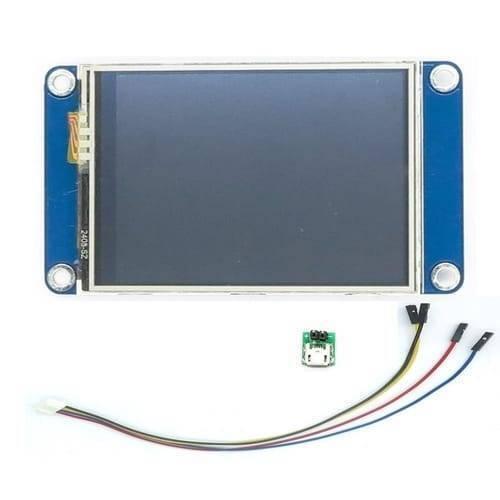

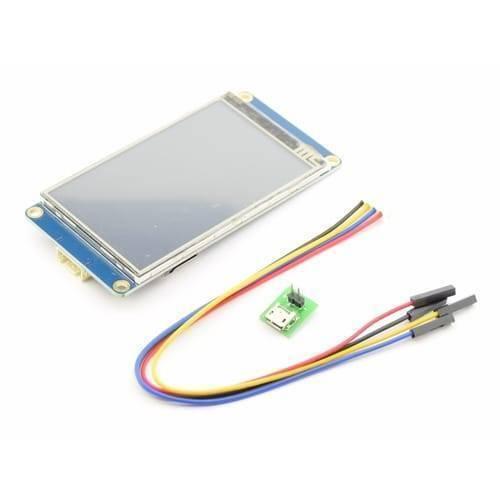

Package includes:

  • 1 X 2.4'' HMI LCD Display Module
  • 1 X 4P Cable
  • 1 X UB to 4pin connector

Note: There are a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.Image result for 2.4 inch Nextion touchscreen

2.4 Inch Nextion Tft Hmi Lcd Touchscreen Nx3224t024

2.4 Inch Nextion Tft Hmi Lcd Touchscreen Nx3224t024

Image result for 2.4 inch Nextion touchscreen
