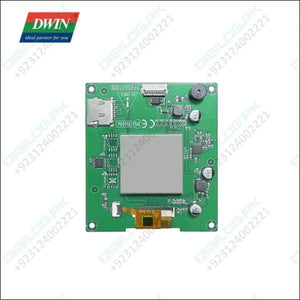

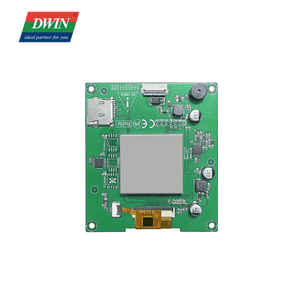

2.1 Inch Circular Smart Lcd Dmg48480c021_03wtc Commercial Grade

2.1 Inch Circular Smart Lcd Dmg48480c021_03wtc Commercial Grade

Regular price Rs 7,000
Regular price Sale price Rs 7,000
Sale Sold out
Shipping calculated at checkout.

SKU:B835

NOTIFY ME WHEN IN STOCK

2.1 Inch Circular Smart LCD DMG48480C021_03W Commercial Grade :

●Based on T5L1, running DGUS II system, commercial grade;

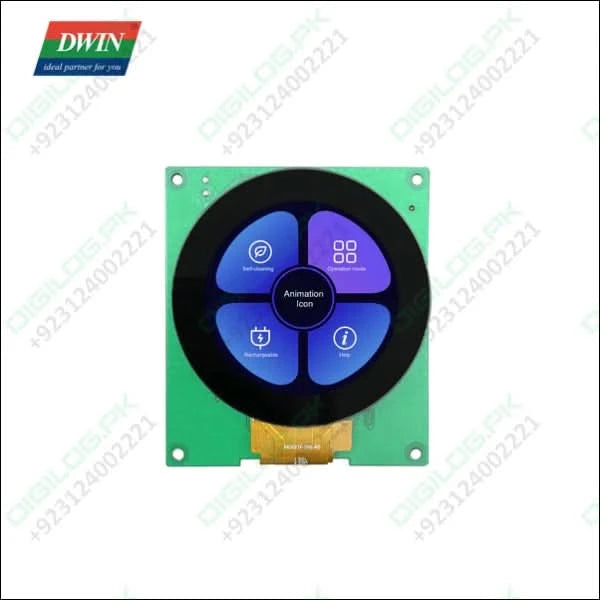

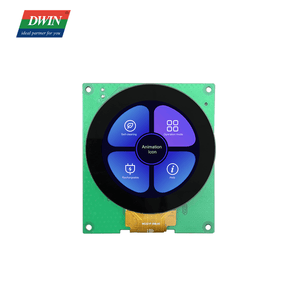

● 2.1-inch circular LCD, 480*480 pixels resolution;

● 16.7M colors, IPS-TFT-LCD, wide viewing angle;

● 10Pin_1.0mm socket for power supply and serial communication;

●  Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

●  Use DWIN DGUS II V7.6GUIs software development

Specification

DMG48480C021-03WTC英文版

ASIC Information

T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

Display

Color 16.7M colors
LCD Type IPS
Viewing Angle Wide viewing angle, 85°/85°/85°/85°(L/R/U/D)
Display Area(A.A) D=53.3mm
Resolution 480*480
Backlight LED
Brightness 350 nit

Touch parameters

Type CTP (Capacitive touch panel)
Structure G+FF structure with surface cover of tempered glass
Touch Mode Support point touch and drag
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch

Reliability Test

Working Temperature -10~60℃
Storage Temperature -20~70℃
Working Humidity 10%~90%RH
Conformal  coating None

Voltage & Current

Power Voltage 4.5~5.5V
Operation Current VCC = +5V, Backlight on: 130mA
VCC = +5V, Backlight off: 60mA

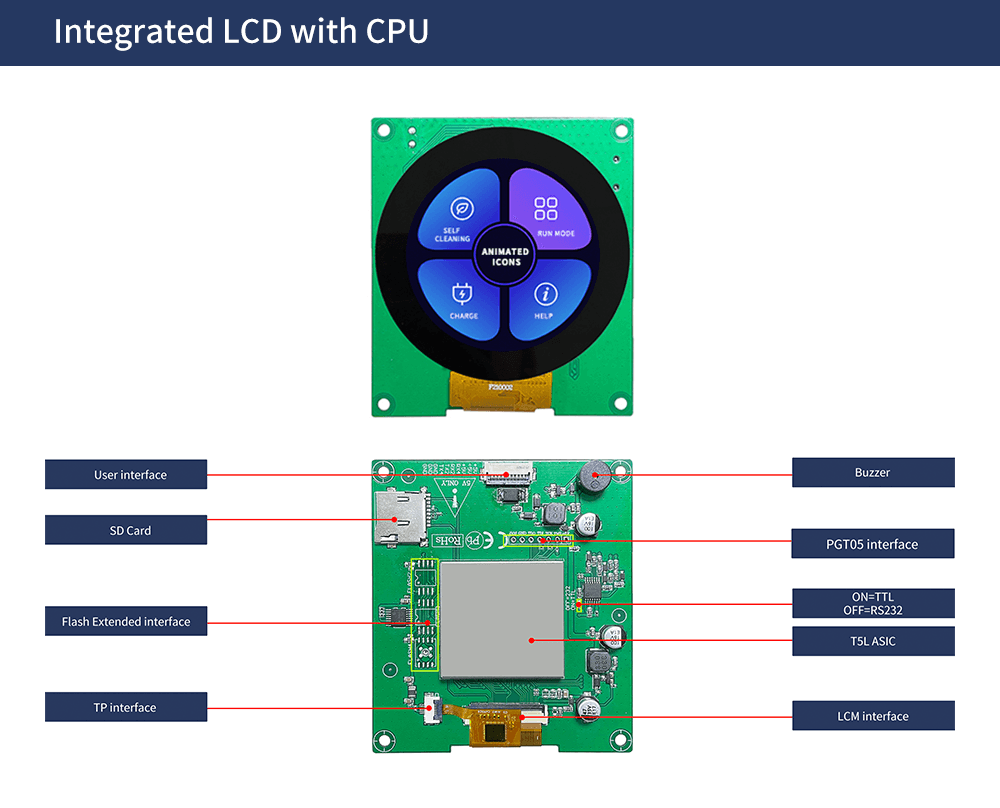

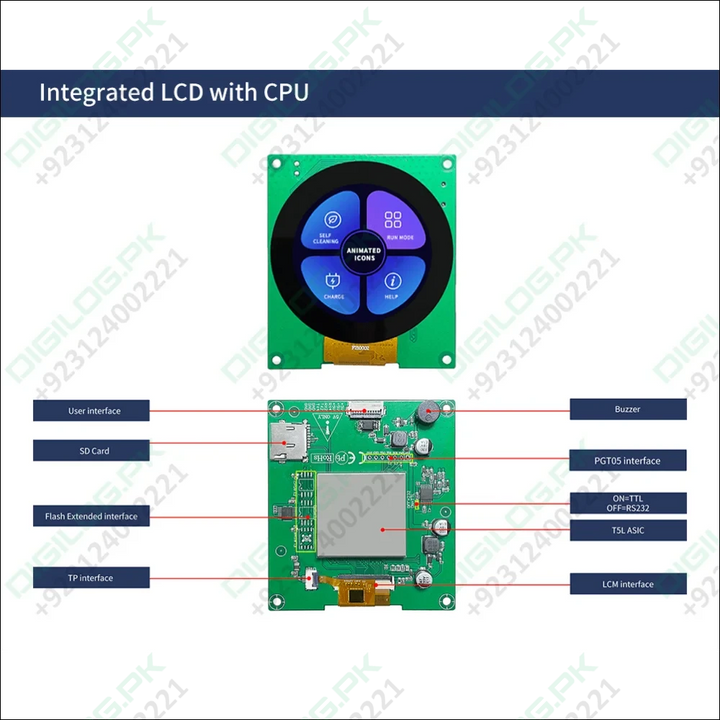

Interface

LCM interface FPC40_0.5mm, RGB interface
CTP interface FPC6_0.5mm, IIC interface
Baudrate 3150~3225600bps, typic  value: 115200bps
Output Voltage Output 1, Iout = -4mA; 2.7~3.2V
Output 0, Iout =4mA; 0.1~0.4 V
Input Voltage
(RXD)
Input 1, 2.4~5.5V
  Input 0, 0~1.0V
Interface UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only avaliable after OS configuration)
User interface 10Pin_1.0mm
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash interface Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Package & Dimensions

Form factor 75.0(W)mm×85.0(H)mm×12.3(T)mm
Net weight 70g
