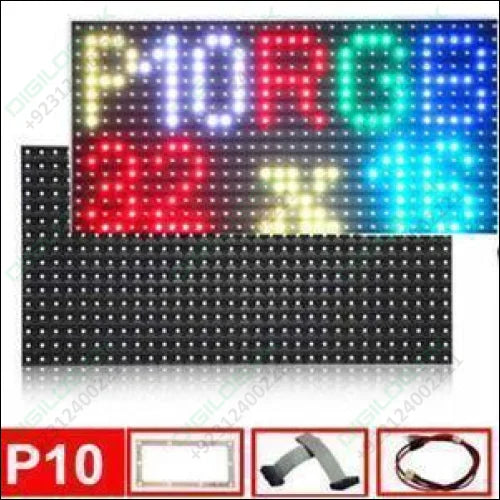

16x32 P10 RGB Led Panel in Pakistan

The 16x32 P10 RGB LED Panel! This high-resolution panel features a vibrant color palette and precise pixel control, perfect for digital signage, information displays, or creative projects. With its compact size and versatile applications, this LED panel is a must-have for both DIY enthusiasts and professionals.

This 16x32 P10 RGB LED panel is a high-quality display solution for indoor and outdoor use. However with a pixel pitch of 10mm, it offers clear and vibrant images and videos. Hence the panel's 16x32 configuration allows for versatile display options, making it suitable for advertising, information display, and entertainment purposes.

Its RGB color capability ensures rich and dynamic visuals, making it an ideal choice for businesses and also event organizers looking to make an impact with their digital signage.

Features :

• Operates at 5V (2A rated power supply is recommend)
• Dimensions are 192mm x 96mm (7.6”X3.8”)
• LED spacing or pitch : 6mm
• Compatible with Adafruit’s RGB Matrix Panel Library
• RGB connector shield and cables are included (no additional wires are needed for connecting the matrix to Arduino Uno)
• The RGB connector shield also features the DS1307 RTC chip on board along with a CR1220 coin-cell battery holder. The I2C pins of the DS1307 chip are pre-wired to A4 and A5 pins of the shield.

Specification of 16x32 P10 RGB Led Panel :

• Dimensions: 192mm x 96mm x 12mm (7.6″ x 3.8″ x 0.5″)
• Panel weight with IDC cable and power cable: 170g
• 5V regulated power input, 2.5A max (all LEDs on)
• 5V data logic level input
• ~2000 mcd LEDs on 6mm pitch
• Compatible with M3 mounting screws
• 1/8 scan rate
• Indoor display, 140 degree visibility
• Displays are ‘chainable’ – connect one output to the next input – but our Arduino example code does not support this yet

Package includes :

1 x 16x32 P10 RGB Led Panel in Pakistan
