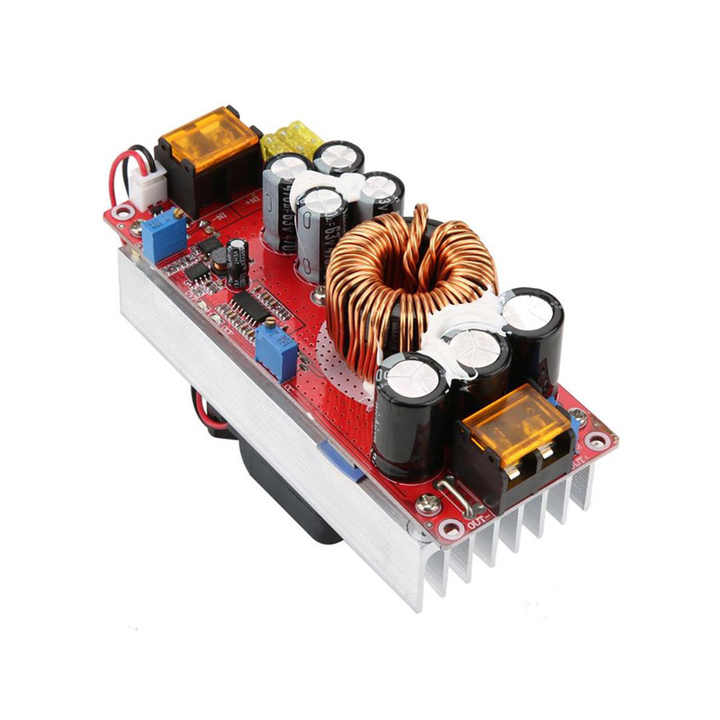

1500W 30A Voltage Step Up Converter CC CV Power Supply Module

1500W 30A Step Up Converter., Power for the boost converter can come from any suitable DC source, such as batteries, solar panels, rectifiers, and DC generators. A process that changes one DC voltage to a different DC voltage is call DC to DC conversion.

A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes call a step-up converter since it “steps up” the source voltage.

Boost constant current module Module properties: non isolated boost module (BOOST) Working temperature: -40~+85 degrees Working frequency: 150KHz Conversion efficiency: 92%-97%(efficiency have an effect on input voltage, output voltage, current and pressure difference) Installation: 4pcs 3mm column Connection mode: Terminal blocks (please use big current and pure copper wire) Module size: 130mm x 52mm x 84mm

Specifications:

Input voltage: 10-60V Input current: 30A(10-30V input) 25A(31-60V input) Static operating current: 15mA Output voltage: 12-90V continuous adjustable (default output 19V) Output current: MAX 20A, over 15A please strengthen the cooling (have an effect on input and output, differential pressure, the greater the pressure difference between the input voltage and output voltage, the smaller the current is ) Constant current range: 0.8-20A (+/- 0.3A) Output power: = input voltage x 30A

Feature:

1. Over current protection: there is a certain range of error in the input over 35A, automatically reducing the output voltage.

2.Short circuit protection: there is (input 30A fuse) double short circuit protection, more secure to use.

3.Input reverse polarity protection: there is (150A MOS tube to avoid this). en.wikipedia.org

Package include : 1 x 1500W boost constant current module
