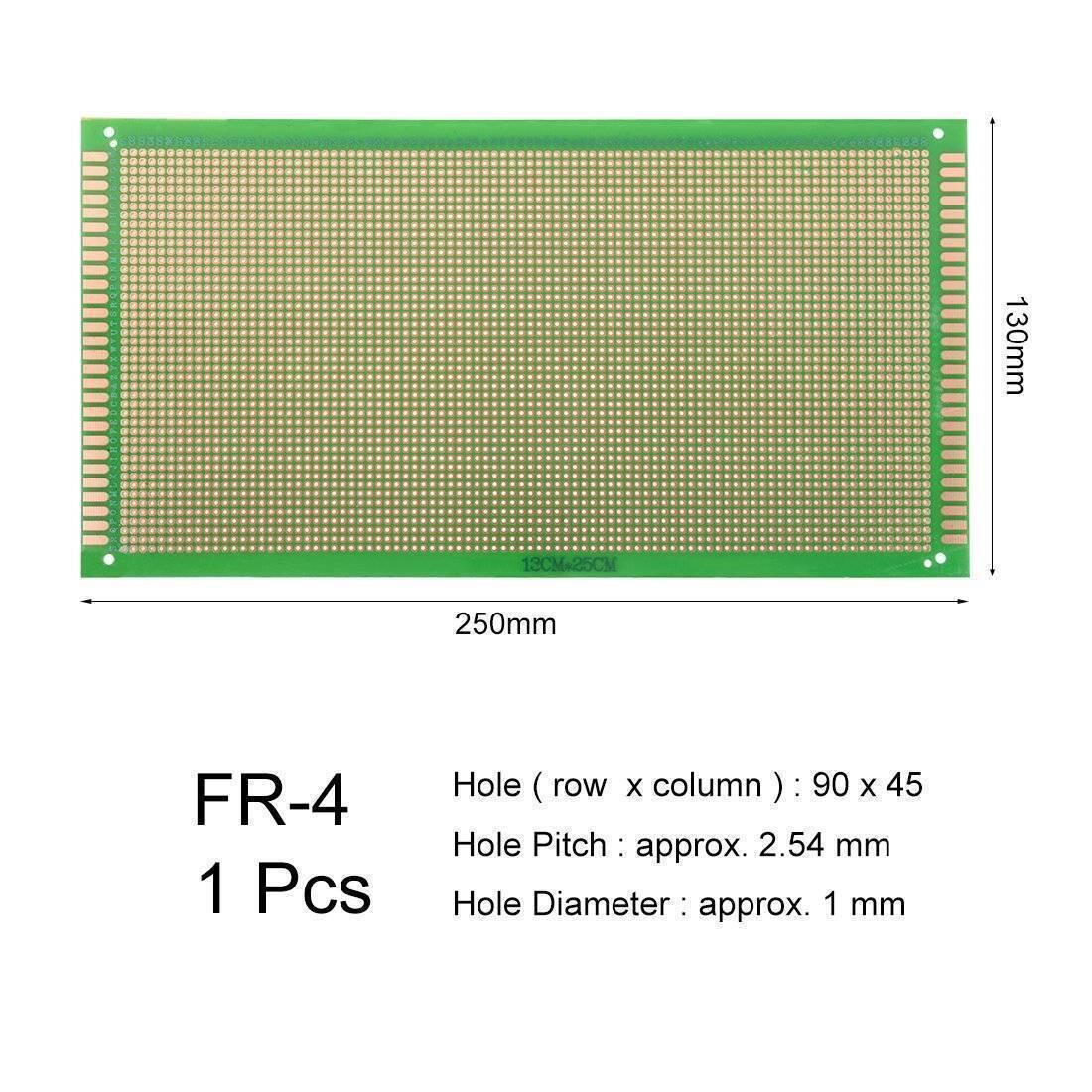

Fiber Glass Veroboard - shown as a rectangular green circuit board with a grid of holes, accompanied by a dimension and specification diagram.

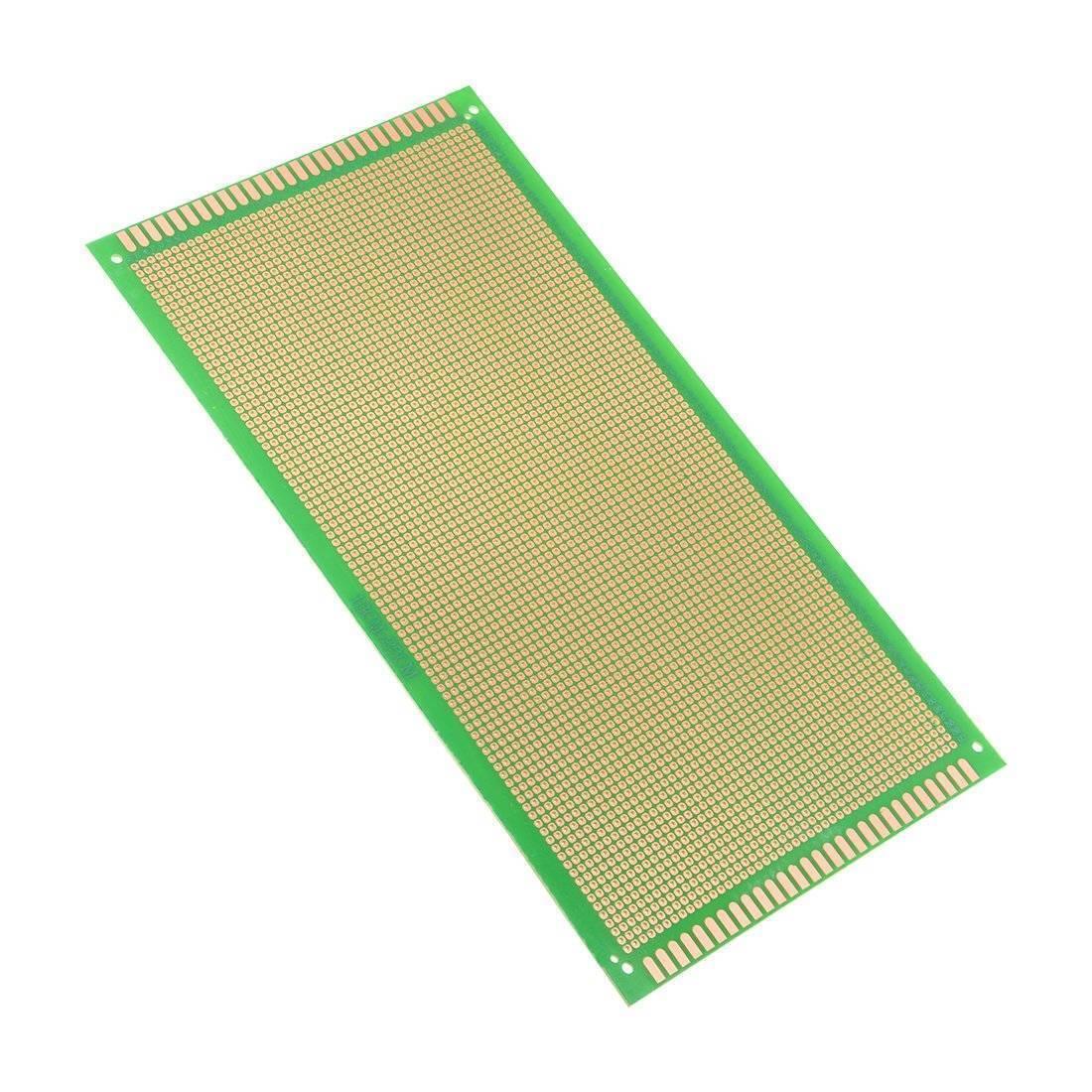

Fiber Glass Veroboard - a rectangular green circuit board featuring a grid of copper-plated holes and gold-plated edge connector pins.

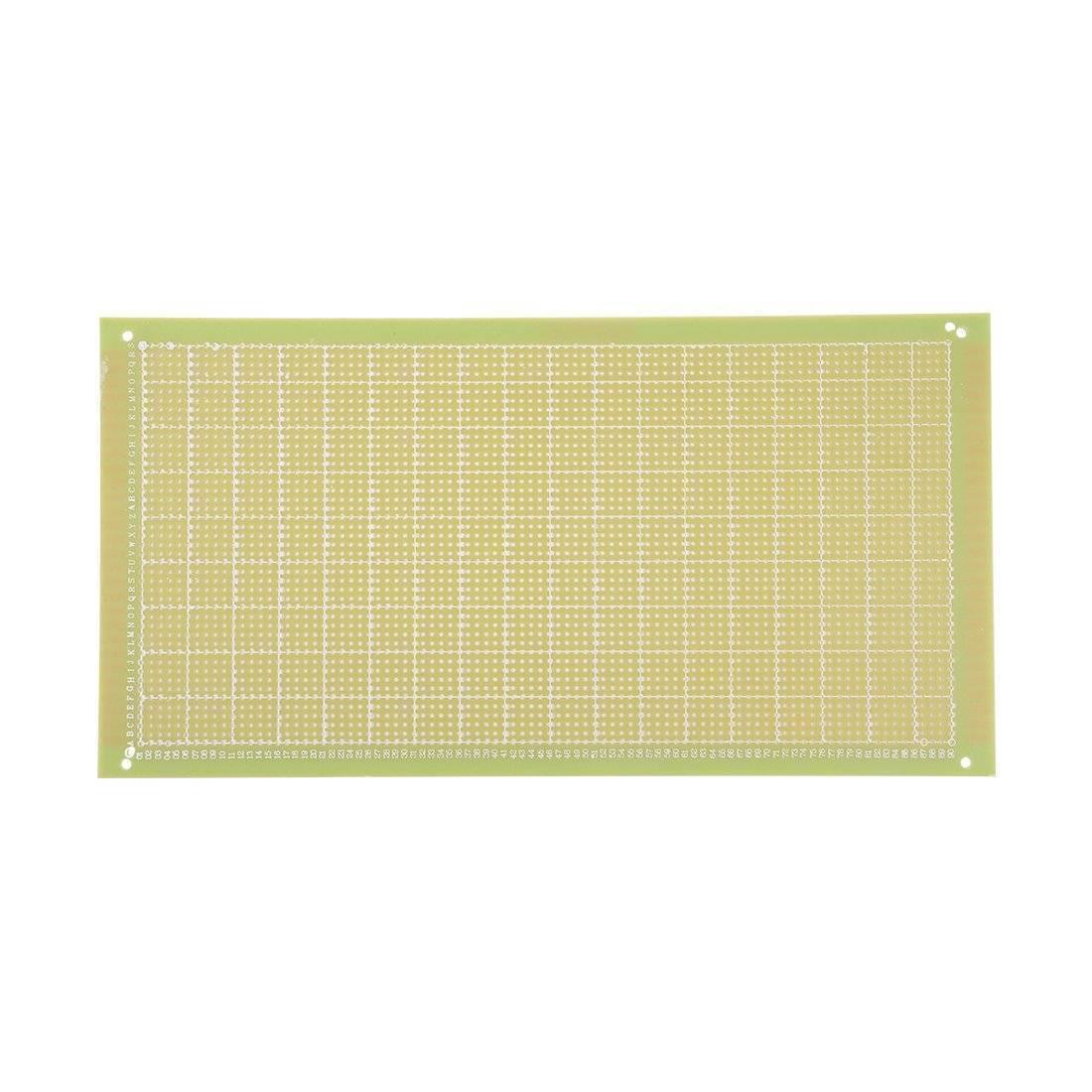

Fiber Glass Veroboard - shown as a rectangular, light green prototyping board with a grid of copper-plated holes and printed alphanumeric coordinates.

Sold out

Fiber Glass Veroboard - shown as a rectangular green circuit board with a grid of holes, accompanied by a dimension and specification diagram.

Fiber Glass Veroboard - a rectangular green circuit board featuring a grid of copper-plated holes and gold-plated edge connector pins.

Fiber Glass Veroboard - shown as a rectangular, light green prototyping board with a grid of copper-plated holes and printed alphanumeric coordinates.

Fiber Glass Veroboard

Rs 160

SKU: IMP300,Th150,S

13x25cm Fiber Glass VeroBoard Overview:

Fiber Glass VeroBoard/Prototype board use for making parmanent circuit board,good quality pcbs and have a high strength

Specifications

Dimension : 13x25 cm / 5.1x9.8 inch (W x L)
Hole ( row x column ) : 90 x 45
Material : glass fiber FR4
Thickness : approx. 1.6mm
Hole Pitch : approx. 2.54 mm
Hole Diameter : approx. 1 mm
Mounting Hole Diameter : approx. 3 mm
Color : green basic,Brown tone

Package Includes:

1 pcs x 13x25cm Fiber Glass VeroBoard
