The 13N60 MOSFET is a widely used power field-effect transistor known for its high voltage rating and robust performance in switching applications. This article provides a comprehensive overview of the 13N60 MOSFET, including its specifications, typical use cases, and comparisons with similar MOSFETs such as the 65N06, 7N60, 15N60, and others. Whether you're designing a power supply, motor control system, or high-voltage switching circuit, understanding the 13N60 MOSFET is essential for making an informed selection. When users search for “13N60 MOSFET,” the primary intent is to find a reliable power transistor suitable for high-voltage applications. This search often comes from engineers or hobbyists working on projects that require efficient switching at voltages up to 600V. The 13N60 is a popular choice due to its ability to handle high voltages while maintaining low on-resistance, which minimizes power loss and heat generation. To better understand how to use the 13N60 MOSFET in a practical scenario, consider the following example: You are designing a high-voltage DC-DC converter that requires a MOSFET capable of handling 600V and at least 13A of continuous current. The 13N60 is a suitable candidate for this application. Here’s how to evaluate and implement it:

1. Determine the voltage and current requirements of your circuit to ensure the 13N60 meets the necessary specifications.
2. Check the thermal characteristics, including thermal resistance and maximum junction temperature, to ensure proper heat dissipation.
3. Review the gate threshold voltage and switching speed to ensure compatibility with your control circuitry.
4. Compare the 13N60 with similar MOSFETs such as the 15N60, 20N60, and 40N60 to determine the best fit for your application.

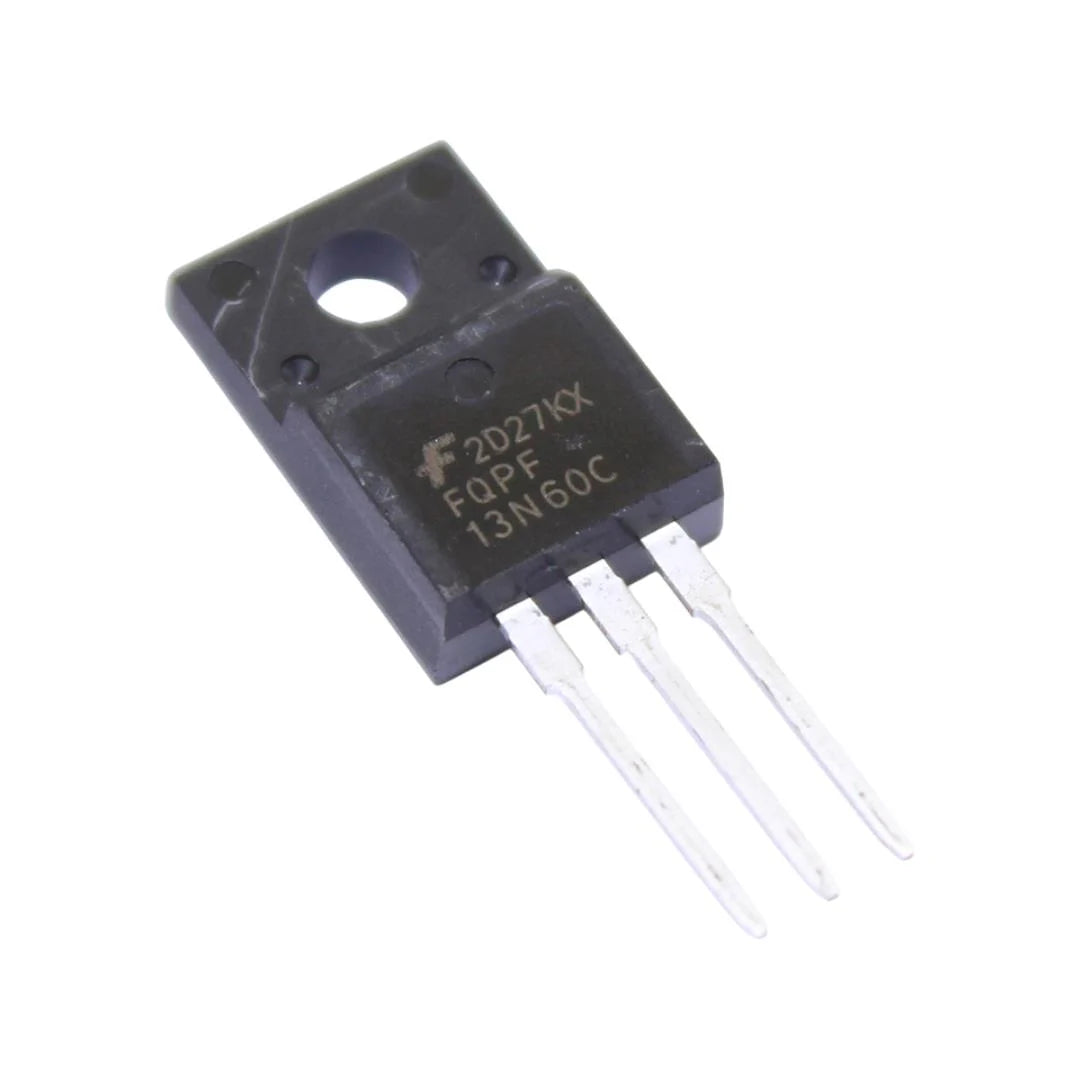

13N60 MOSFET

A power MOSFET with a 600V drain-source voltage rating and a continuous drain current of 13A, suitable for high-voltage switching applications.

Gate Threshold Voltage (V_GS(th))

The minimum voltage required at the gate to begin conducting current between the drain and source.

Thermal Resistance (R_th)

A measure of how well the MOSFET can dissipate heat, typically expressed in °C/W.
