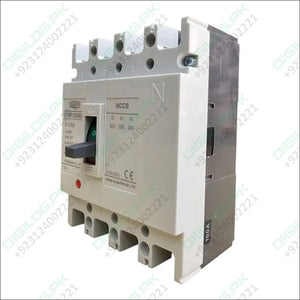

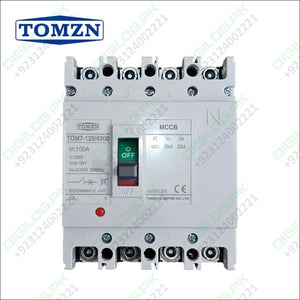

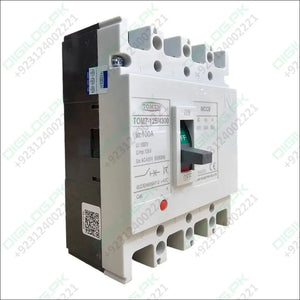

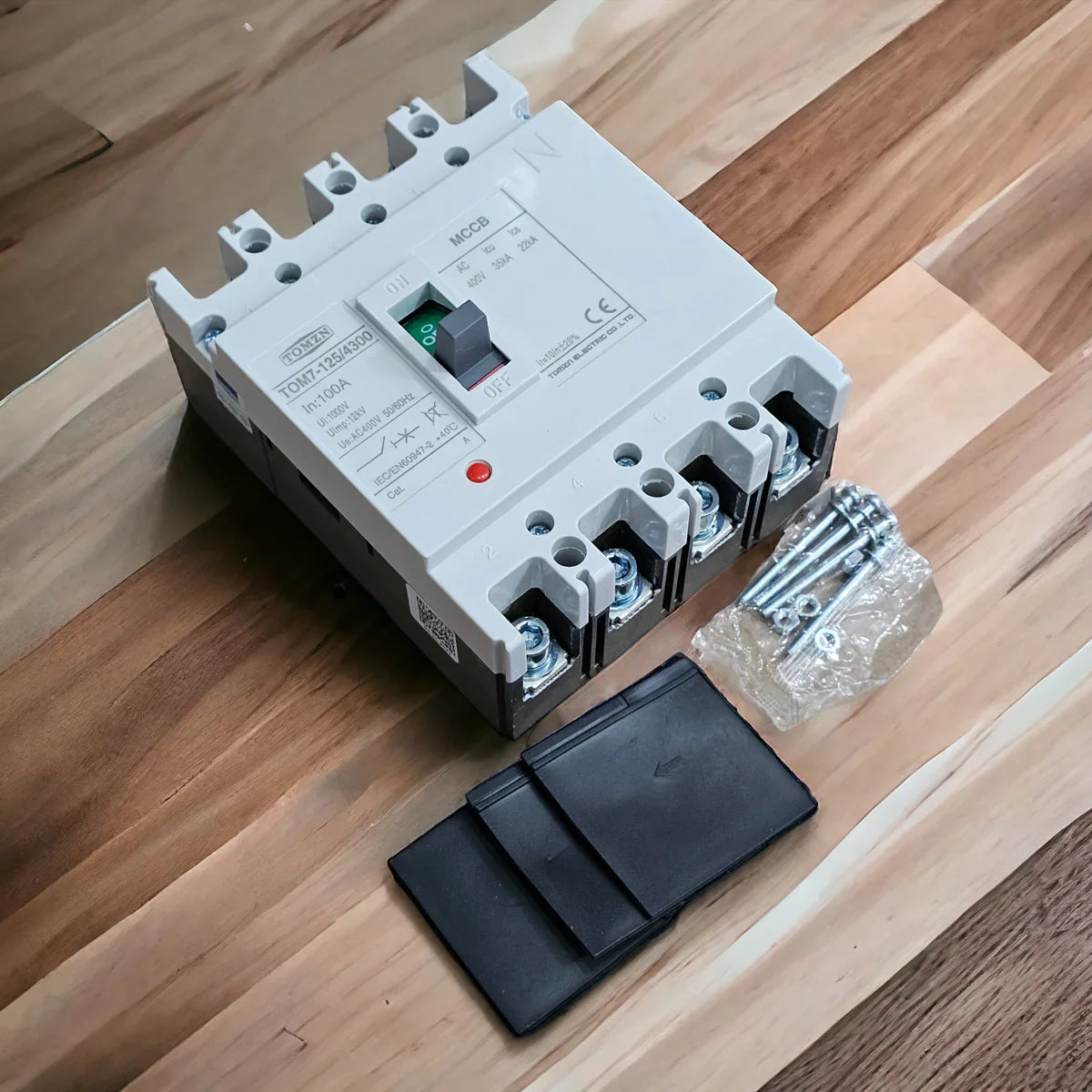

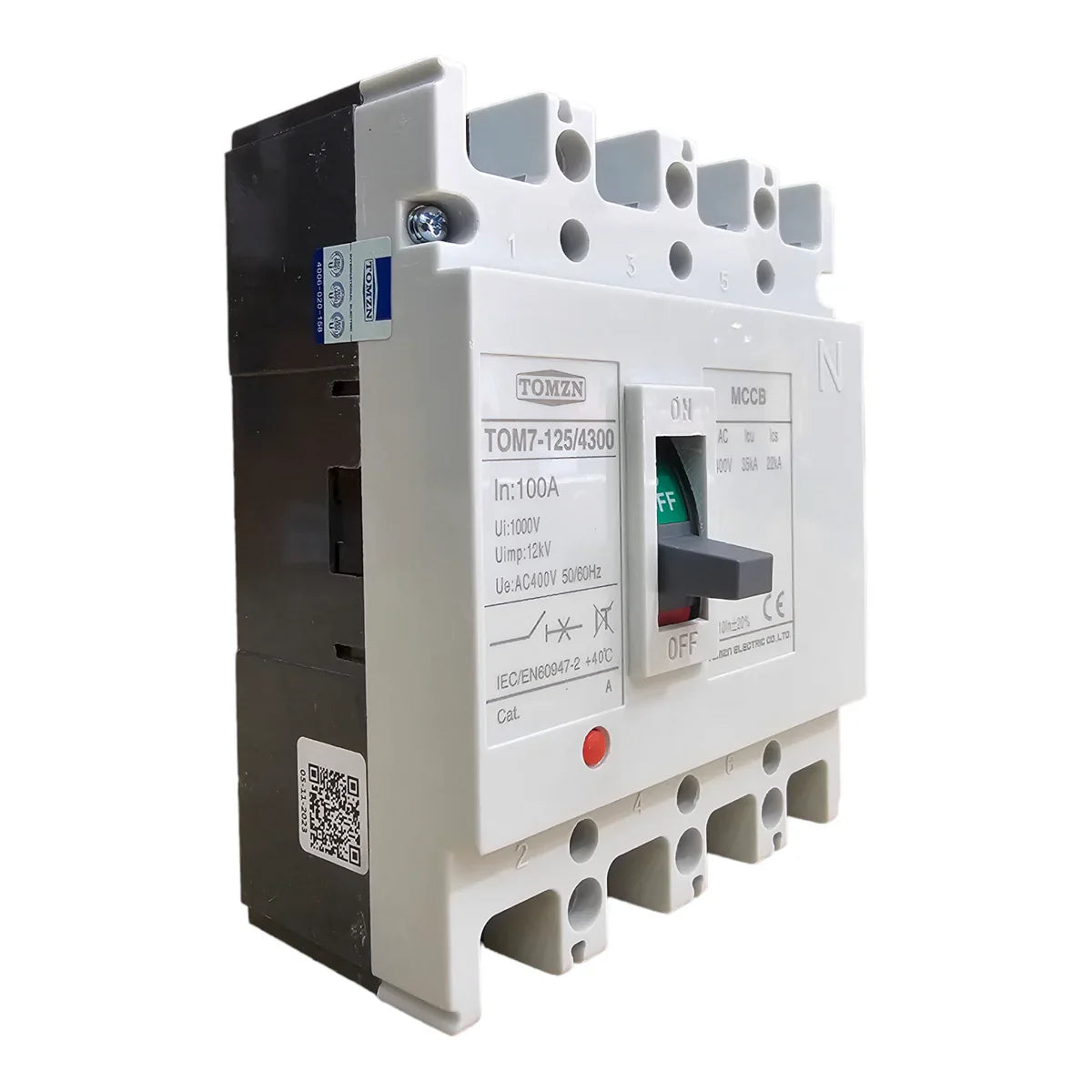

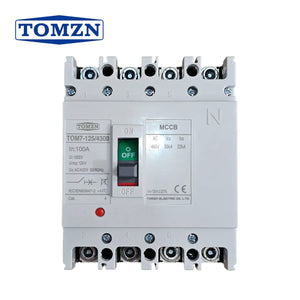

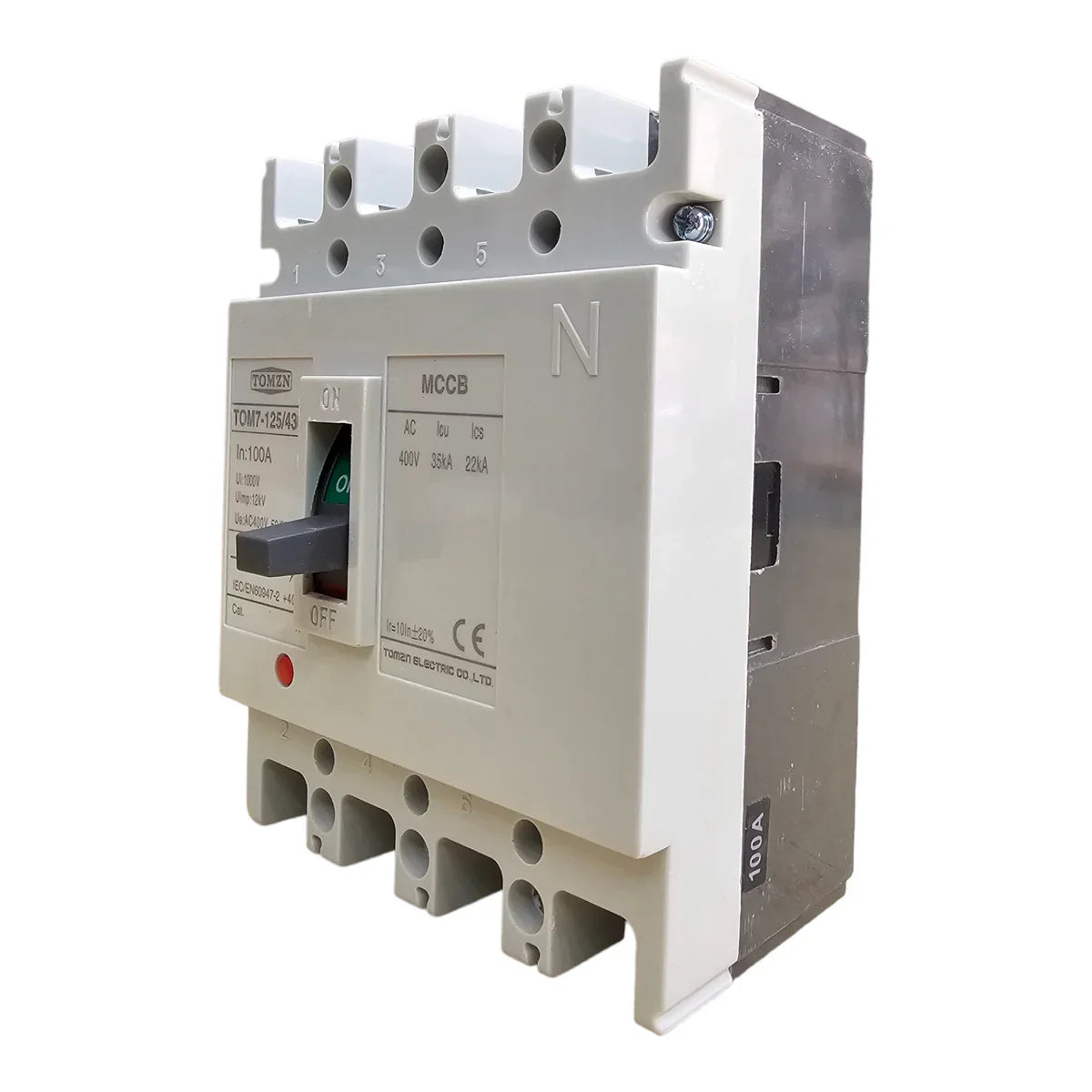

100A TOMZN TOM7-125/4300 MCCB 100A 4 POLE CIRCUIT BREAKER IN PAKISTAN

100A TOMZN TOM7-125/4300 MCCB 100A 4 POLE CIRCUIT BREAKER IN PAKISTAN

Regular price Rs 7,500
Regular price Sale price Rs 7,500
Sale Sold out
Shipping calculated at checkout.

SKU:

NOTIFY ME WHEN IN STOCK

The TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker is a high-quality electrical protection device designed to safeguard electrical circuits against overloads and short circuits. With a current rating of 100A and four poles, this MCCB (Molded Case Circuit Breaker) is suitable for a wide range of industrial and commercial applications. It offers reliable protection and interruption of electrical currents to prevent damage to equipment and ensure the safety of personnel. The TOMZN TOM7-125/4300 MCCB is an essential component for electricians, engineers, and industrial maintenance personnel, providing efficient and effective circuit protection in various electrical systems.

Features of TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker:

  • Trip rating: 100A
  • Number of poles: 4
  • AC Rated Voltage: 400V
  • Breaking Capacity: 35KA at 400VAC
  • Short Circuit withstand: 22KA at 400VAC
  • Thermal magnetic trip unit
  • DIN rail mountable
  • Compact size
  • Flame retardant shell
  • Finger-proof terminals

Specifications of TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker:

  • Model: TOMZN TOM7-125/4300
  • Rated Voltage: AC 400V 50/60Hz
  • Standards: IEC/EN60947-2
  • Operating temperature: -5°C to +40°C
  • Storage temperature: -25°C to +55°C
  • Terminal size: AWG 14-6 Cu/Al
  • Weight: Approx. 2.2kg

Dimensions:

  • Height: 90mm
  • Width: 87mm
  • Depth: 75.5mm

Uses:

  • Protecting electrical circuits from overload and short circuits in industrial, commercial, and residential applications.
  • Suitable for use in motor circuits, generator circuits, solar power systems, wind power systems, and more.

Benefits:

  • Reliable and safe circuit protection
  • Compact size for easy installation in crowded panels
  • High breaking capacity for protection against large fault currents
  • Finger-proof terminals for added safety
  • Competitively priced

digilog.pk is the Online Shopping website for TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circut Breaker. Here you get TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

  • 1 X 100A TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker
