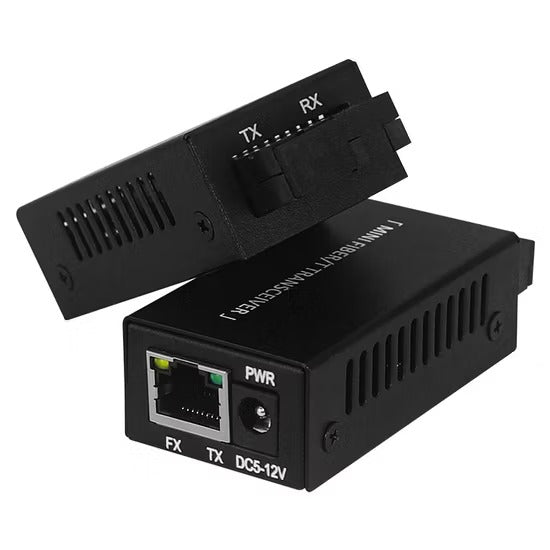

The Gigabit SC Fiber Media Converter is a device used to convert a standard Ethernet (RJ45) signal into fiber optic signal and vice versa. It allows you to extend your network over long distances using fiber cable instead of copper cable.

⚡ Key Features

• Gigabit Speed:
  Supports 10/100/1000 Mbps Ethernet for fast data transfer
• Long Distance Transmission:
  Extends network up to 20KM over single-mode fiber
• RJ45 + SC Fiber Ports:
  • RJ45 port for Ethernet cable
  • SC port for fiber optic cable
• A/B Pair (Bi-Directional):
  Comes as 2 units (A & B) that work together using different wavelengths (1310nm / 1550nm)
• Plug & Play:
  No configuration required — easy to install and use
• Auto-Negotiation:
  Automatically detects speed and duplex mode

🔌 How It Works

👉 Connect Router/Switch → RJ45 port (Converter A)
👉 Connect Fiber cable → between A & B converters
👉 Connect Converter B → RJ45 → Device (PC/Camera/Switch)

✔ Converts electrical signals to optical signals for long-distance transmission

📦 What’s Included

• 1 × Converter (TX/A)
• 1 × Converter (RX/B)
• Power adapters

🧰 Applications

• CCTV camera systems
• Office or building networking
• Internet extension over long distances
• Industrial and outdoor networking

⚠️ Important Notes

• Requires single-mode fiber (SC connector)
• Must use both A & B units together
• Maximum 100m on RJ45 side, longer via fiber

💡 Simple Explanation

👉 It’s like a network extender:
Instead of using short Ethernet cables, it lets you send internet up to 20KM using fiber optic cable.

Package Includes:

• 1 Pair Media Converter Rj45 Optic Transceiver 20KM
